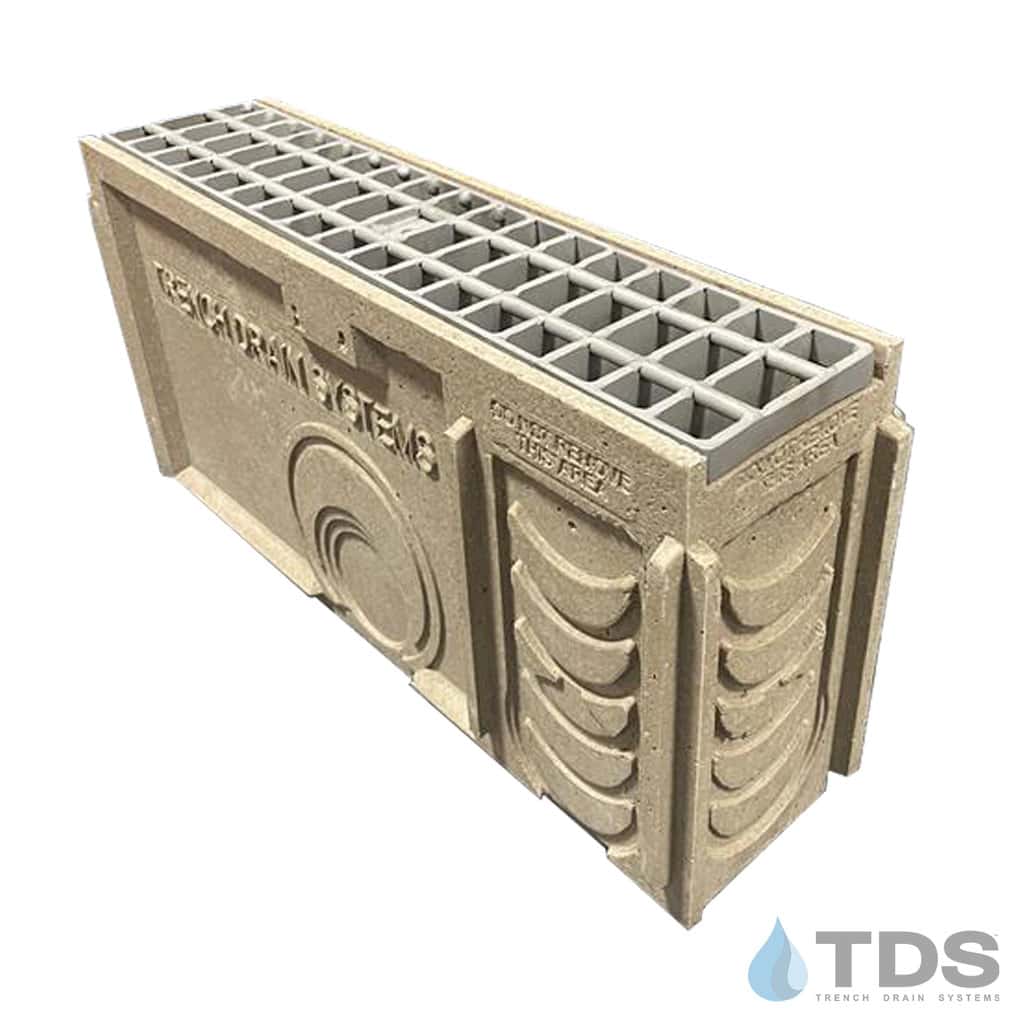

TV0650S (Shallow) Catch Basin Kit w/ DG0669H for POLYCAST®

VINYL ESTER FOR EXTREME CHEMICALS/TEMPERATURES

Catch Basin Kit Includes:

• Grate (Stainless Steel Bar Grate)
• Locking Device
• Catch Basin

Large project? Request a Quote

If the application does not involve harsh conditions, standard POLYCAST® channels are an economical alternative.

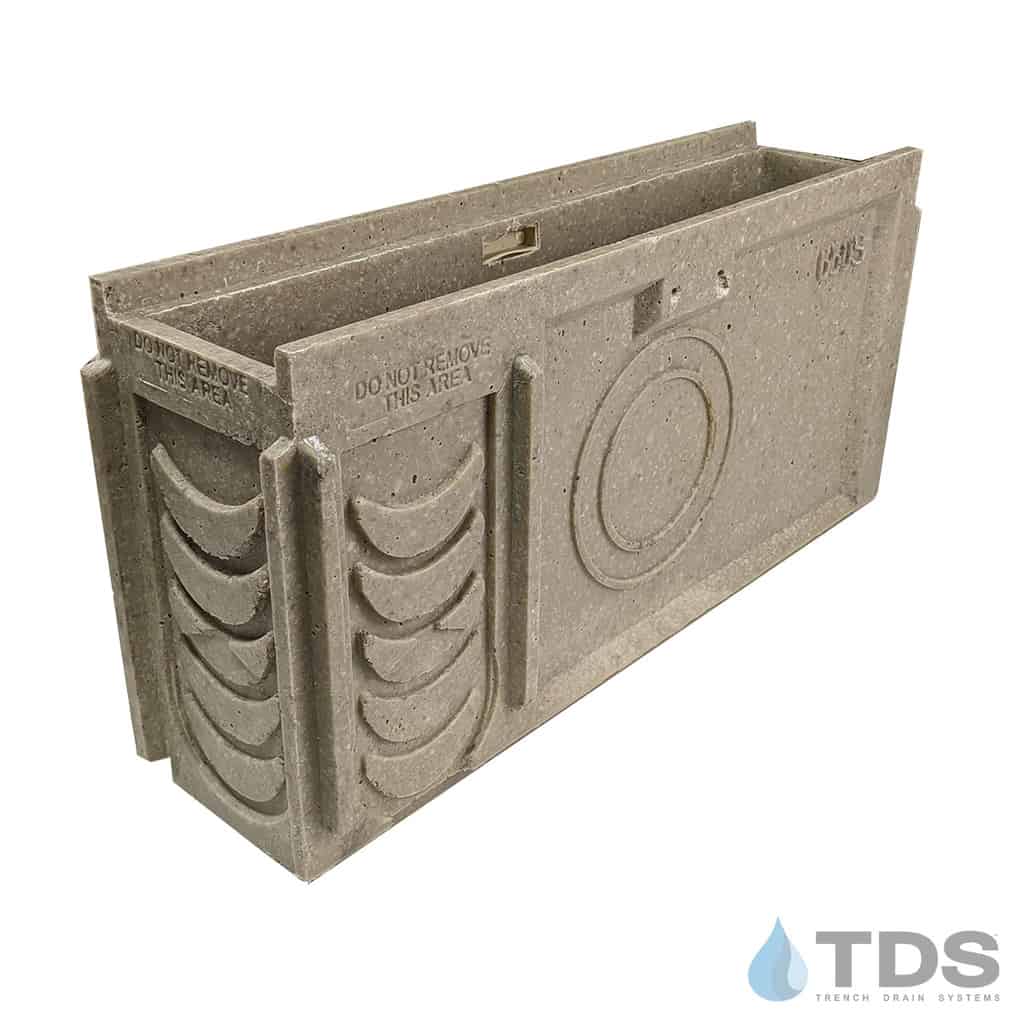

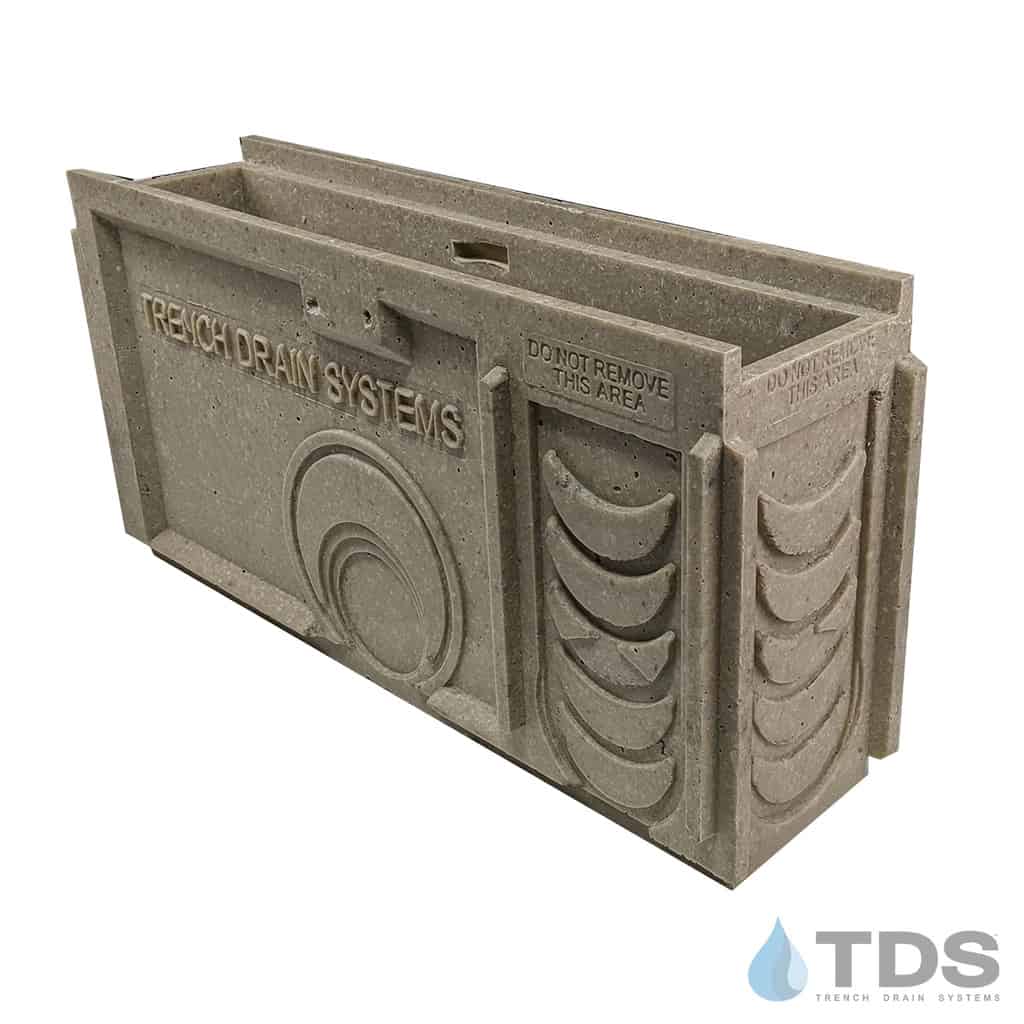

The TDS shallow vinyl ester catch basin is an important part of a pre-sloped drainage system. These vinyl ester polymer shallow catch basins are made with chemically inert materials and are resistant to high temperatures. This series is perfect for breweries and other industries that experience extreme conditions.

The TV0650S can be used as an individual catch basin or in tandem with a vinyl ester POLYCAST® trench drain system. This neutral short catch basin accepts the same grating options, edging, and frames as the POLYCAST® 600/700 drain systems.

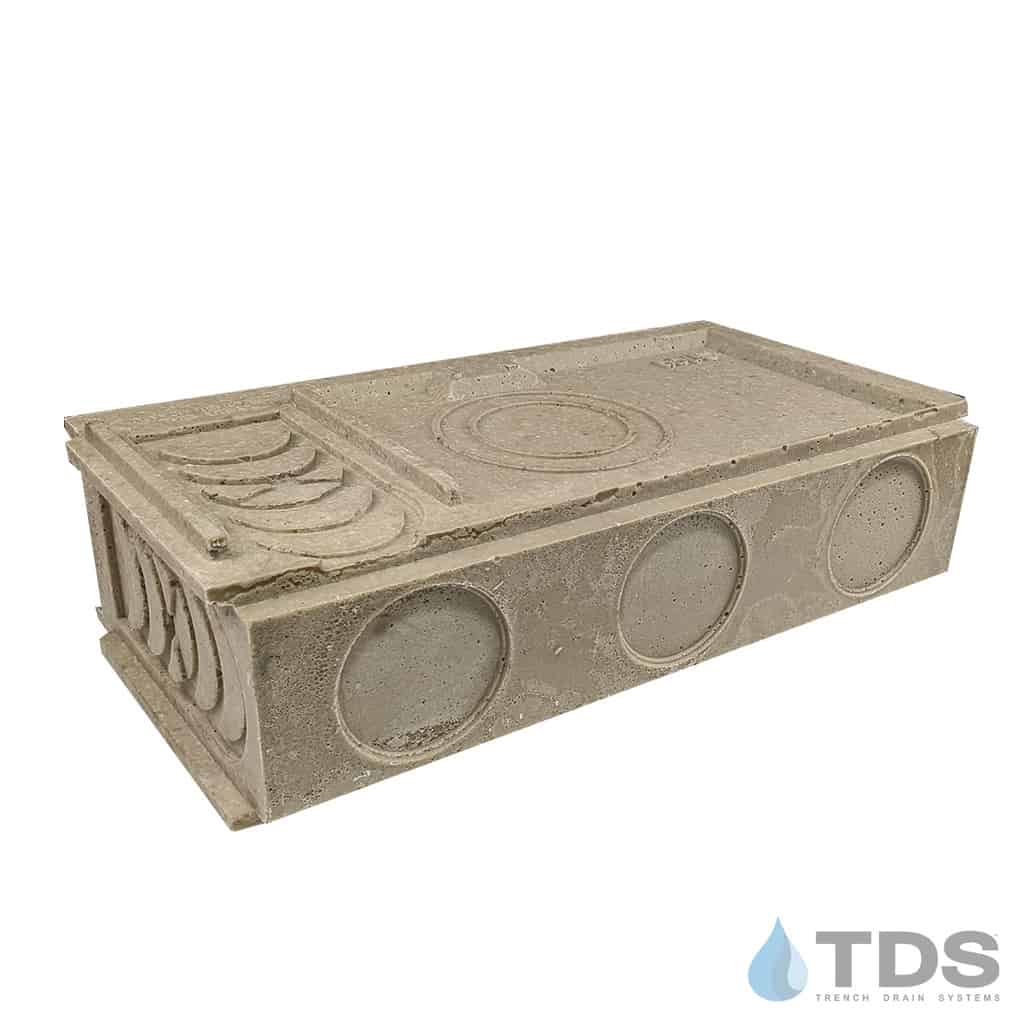

Cut-outs for side, bottom, and end outlets are located on the catch basin for ease of installation. A core drill is available before shipment (at an additional cost).

Catch Basin Actual Dimensions: 6 1/4″W x 24″L x 12″H

DG0669 Grate Specification Sheet

Grating:

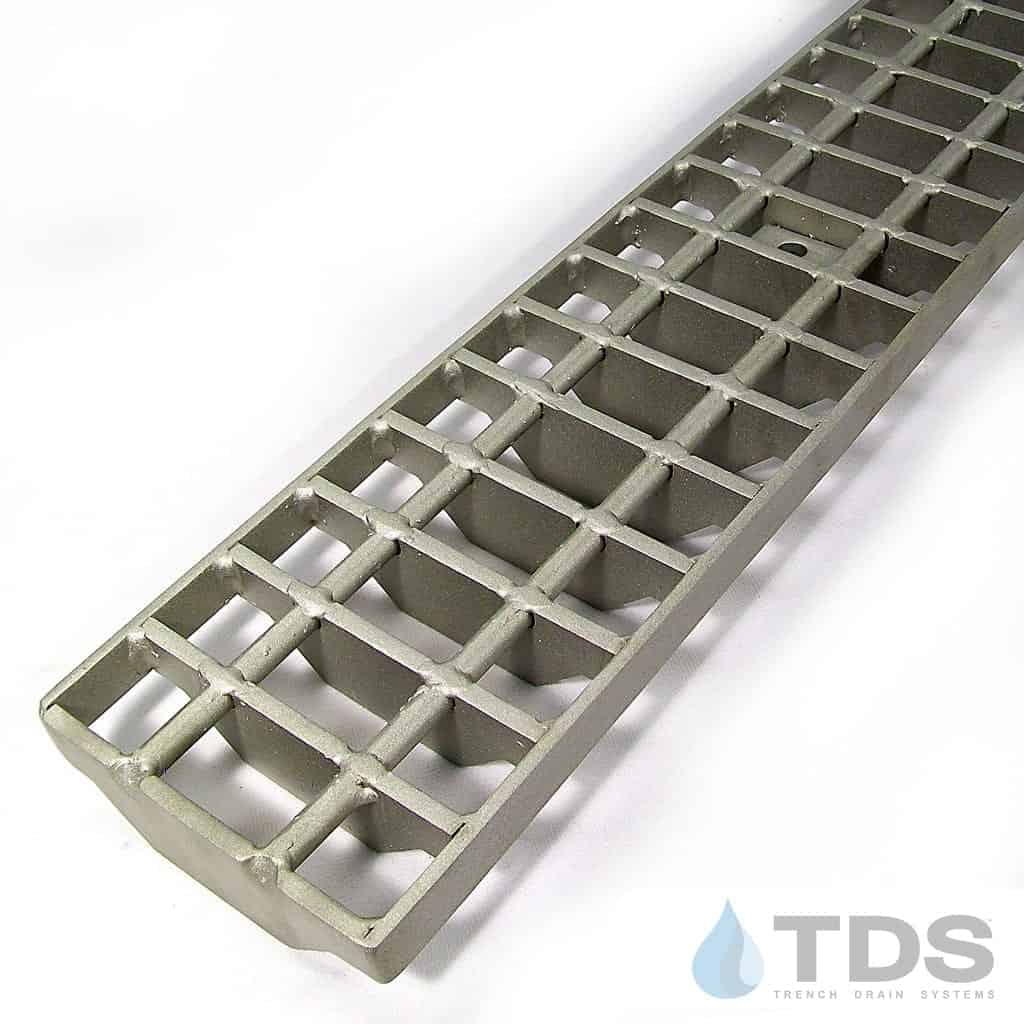

• DG0669 - Stainless Steel Bar Grate - (Class D Load Rating)
• Open Surface Area: 42% (41.62IN2)
• Color: Silver

Catch Basin Kit Includes:

• Grate (Stainless Steel Bar Grate)
• Locking Device
• Catch Basin
