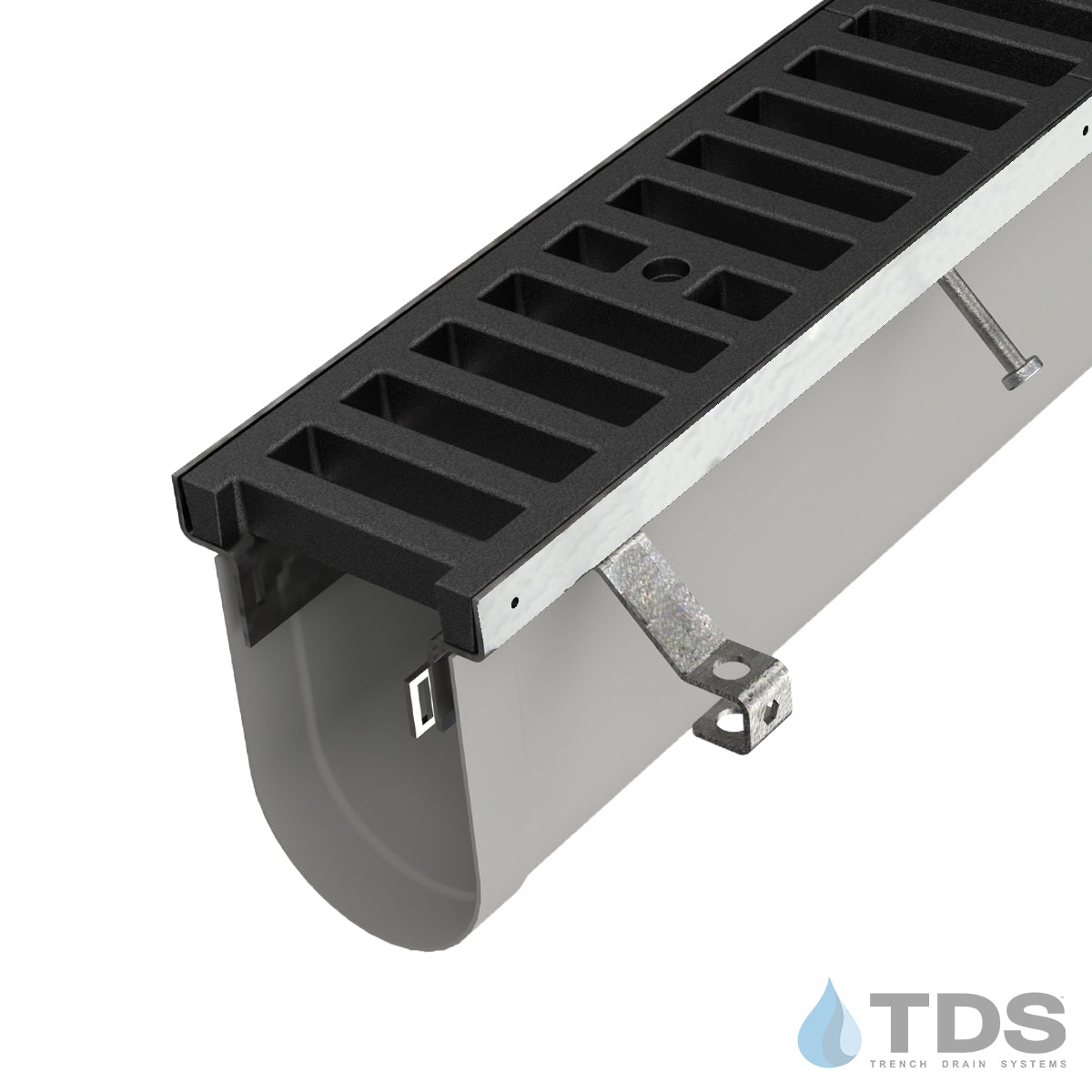

Trench•Era™ FP Series Drain System w/DG3041D 8" Wide Class F Grate - HD Stainless Frame

Each kit includes:

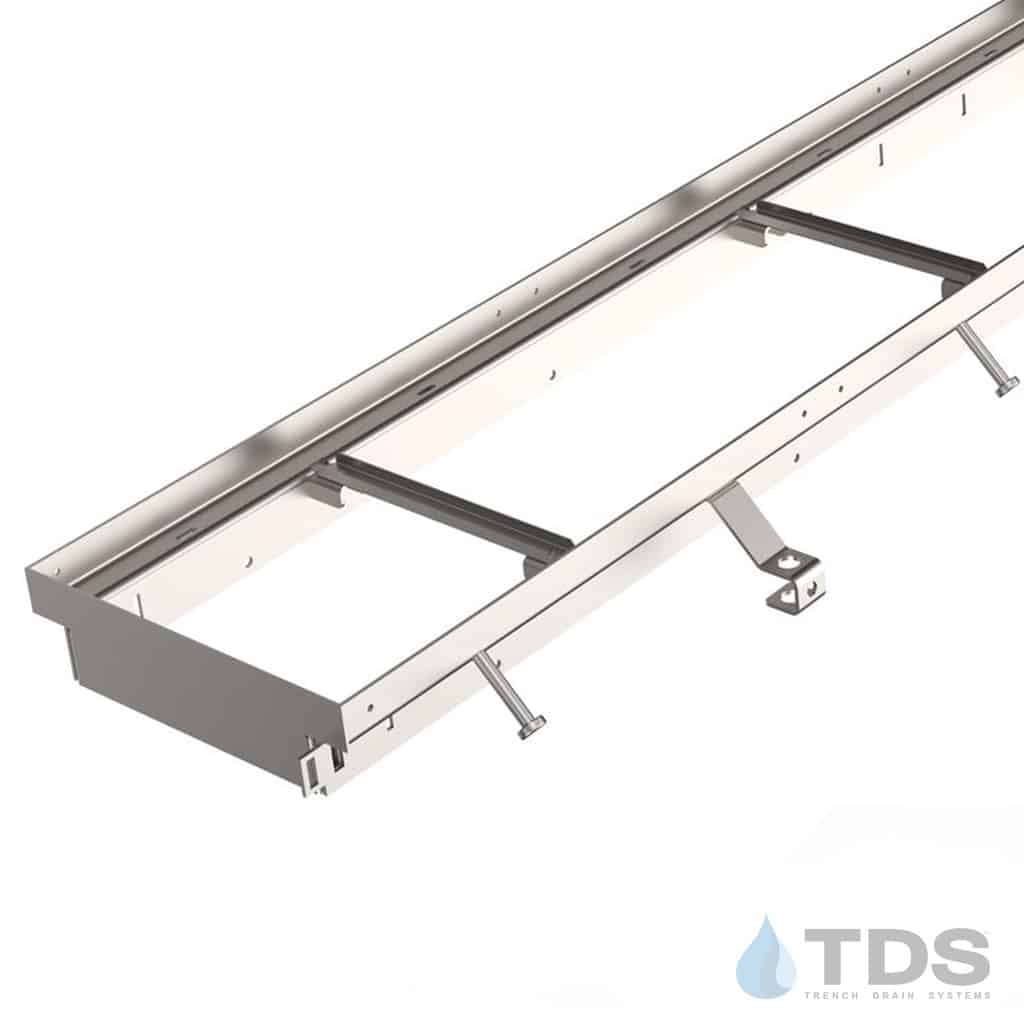

• Heavy-Duty Frame (Stainless)
• Channel
• Grates
• Hardware Pack
• Frame End Plate

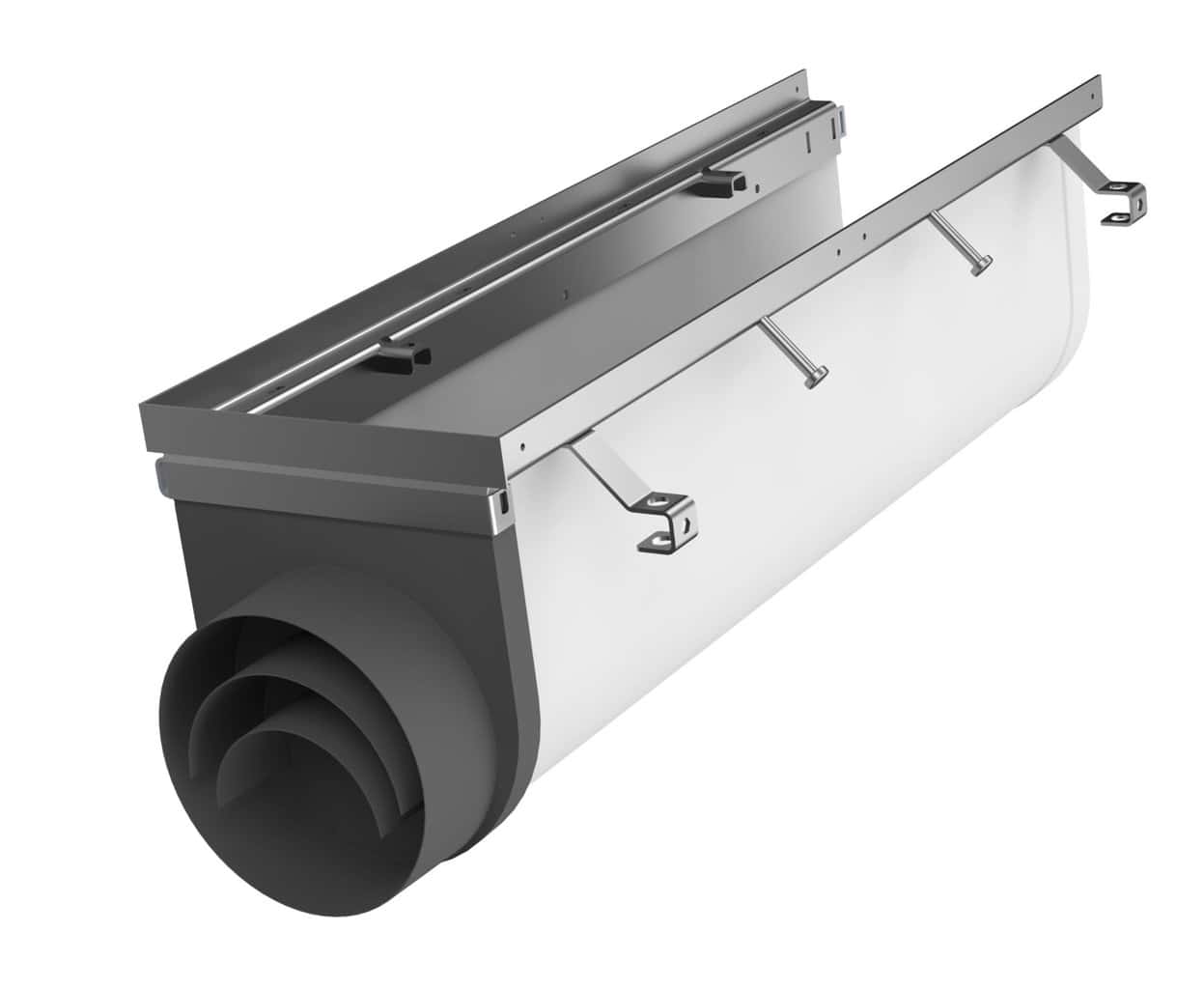

• End Caps(Outlet/Inlet)
• Sealer

Large project? Request a Quote

Designed for its versatility and high capacity, the Trench•Era™ FP series drain system can accommodate a variety of high-flow trench drain applications. This robust fast drainage system was designed with the installer in mind. It comes with a standard 8-inch wide steel frame, which supports 1.5" thick grates, channels that are available in 8' sections, and end pieces that serve as either closed or open pipe outlets/inlets. Prefabricated bottom outlets, corners, and tee sections are also available to assist in customizing to the needs of your project via a free quote.

Each kit includes:

• Heavy-Duty Frame (Stainless)
• Channel
• Grates
• Hardware Pack
• Frame End Plate
• End Caps(Outlet/Inlet)
• Sealer

Grating

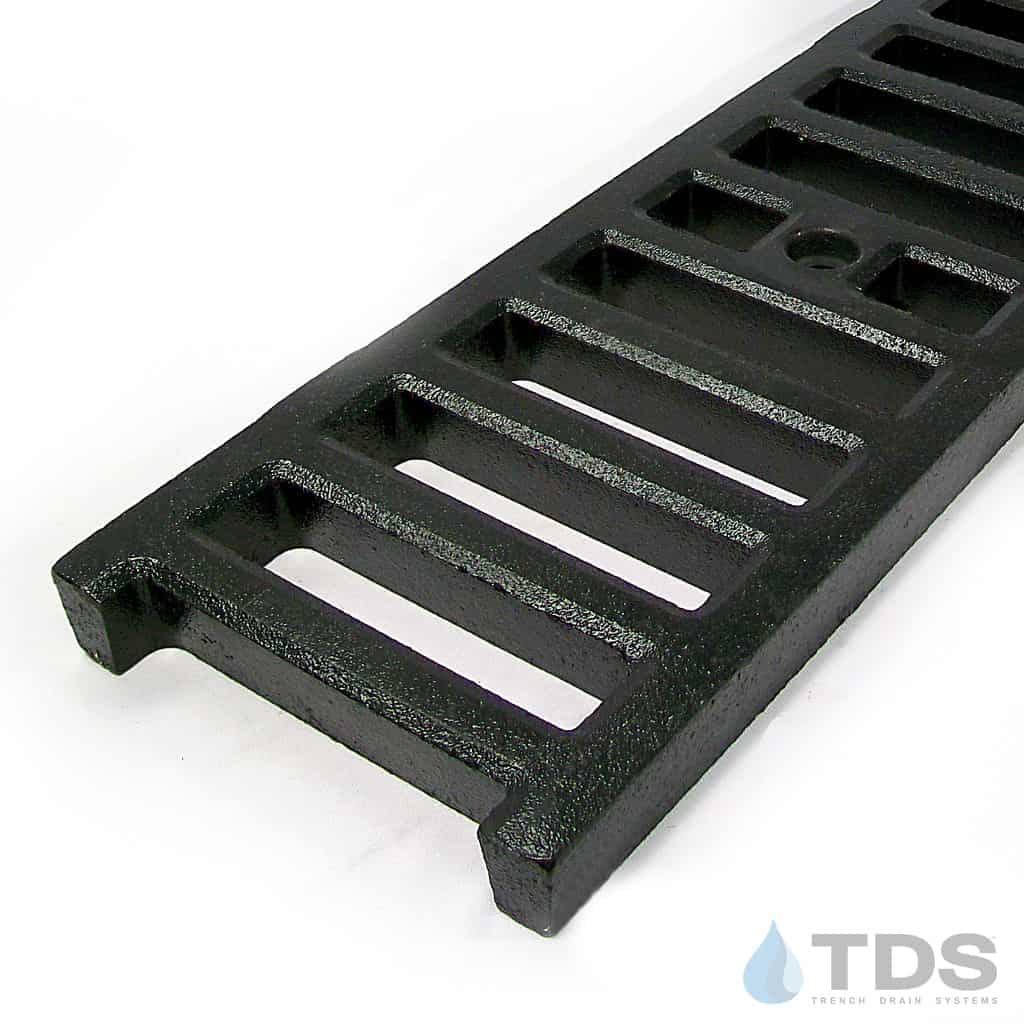

• DG3041D - (8" Wide)
• Ductile Iron Slotted Grate - (Load Class F - DIN Rating)
• Actual dimensions : 8″ x 24″ x 1.5″
• Open Surface Area: 80 Square Inches
