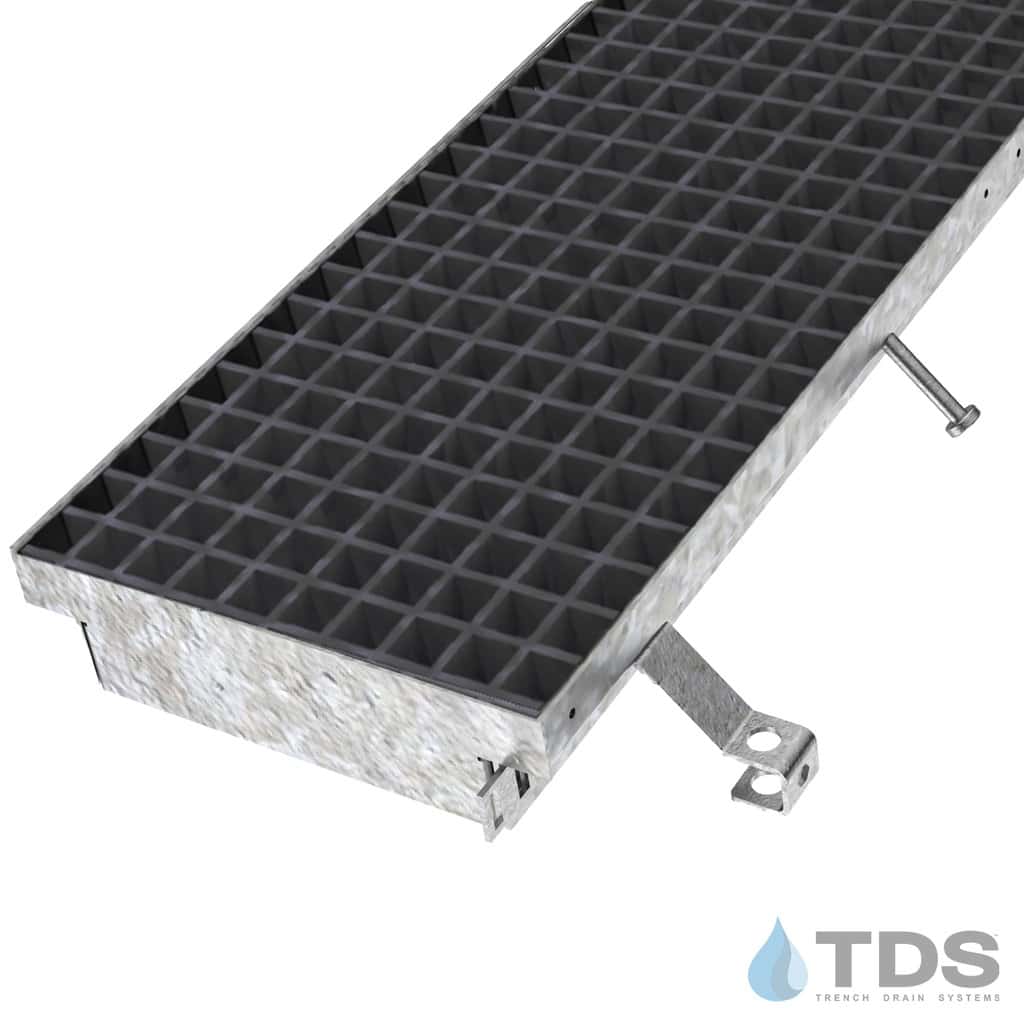

Trench•Era™ FF Series Drain System w/FG1245 14" Wide Class A Grate - HD Galvanized Frame

Grate Width: 14.66" for TDS FP/FF/FE 1200

Grate Thickness: 1.50"

Grate Material / Color / Finish: Fiberglass - 1.50" Sq Mesh

Manufacturer: TDS (Trench Drain Systems)

System: FF Series

Grate Load Class: Class A

Grate Pattern: MESH

Grate Pattern Style: SLOTTED

Channel Material: Form Your Own OR Site Built

Channel Frame / Edging: Frame - Galvanized

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Transportation

Each kit includes:

• Heavy-duty Frame (Galvanized)
• Grates
• Hardware Pack
• End Plates

Large project? Request a Quote

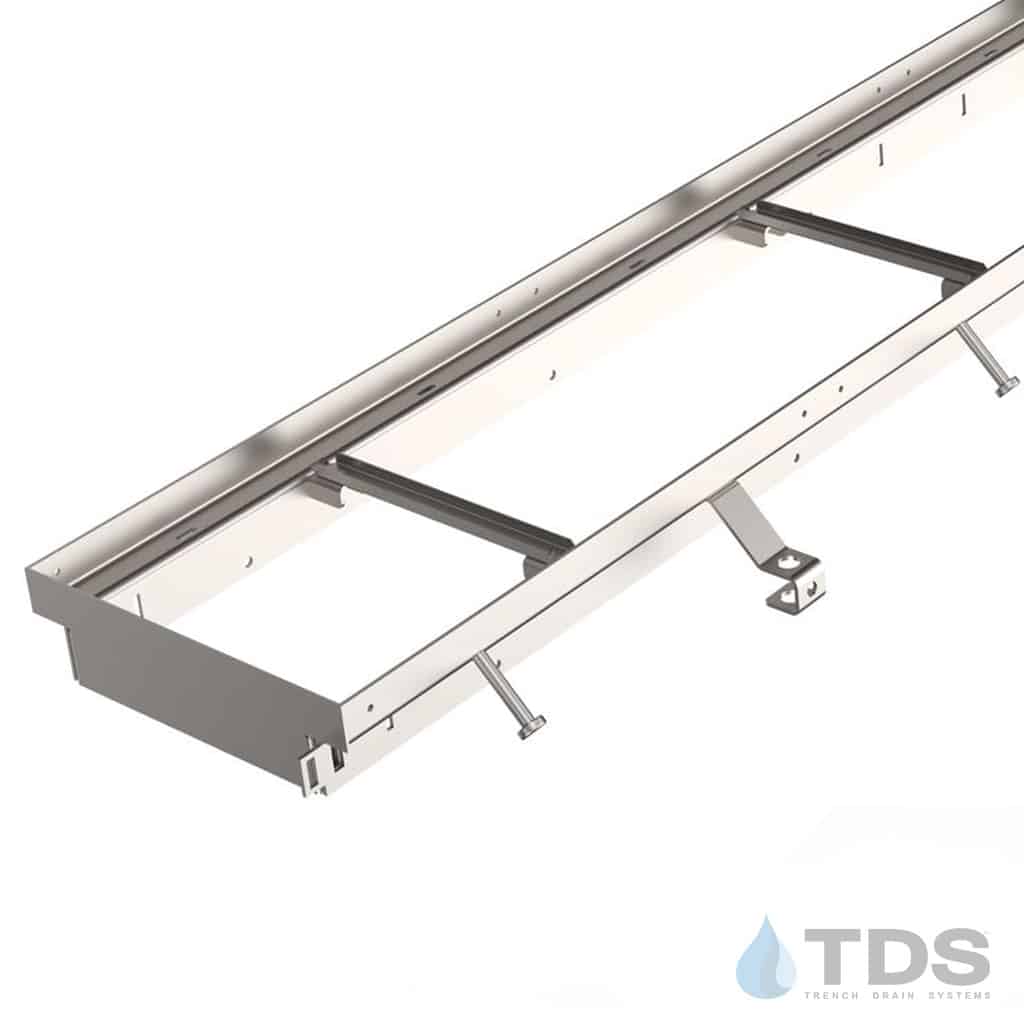

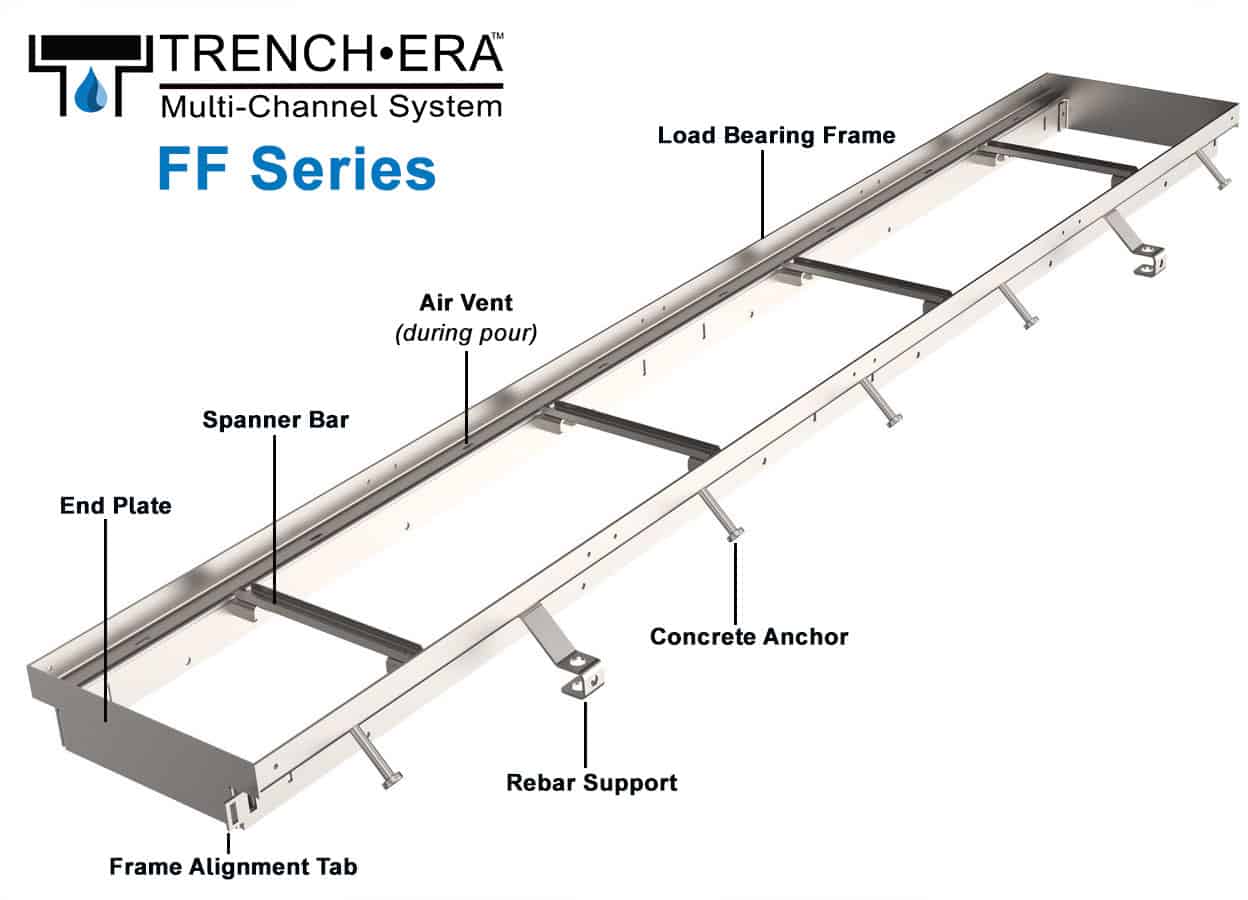

Designed for its versatility, the Trench•Era™ FF series drain system can accommodate a variety of high-capacity trench drain applications. This robust 'fast frame' and grate system is intended for channel drains that need to be fabricated on-site. This system provides a standard hardware pack with the exception of the supporting spanner bar that varies in size depending on the width of the system. Frame lengths are available in 4', 6' and 8' sections and is determined by the length of the system selected.

Each kit includes:

• Heavy-duty Frame (Galvanized)
• Grates
• Hardware Pack
• End Plates

Grating

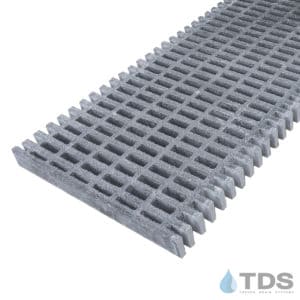

• FG1245 -(14" Wide)
• Fiberglass Mesh Grate - (Load Class A - DIN Rating)
• Open Surface Area: 70%
