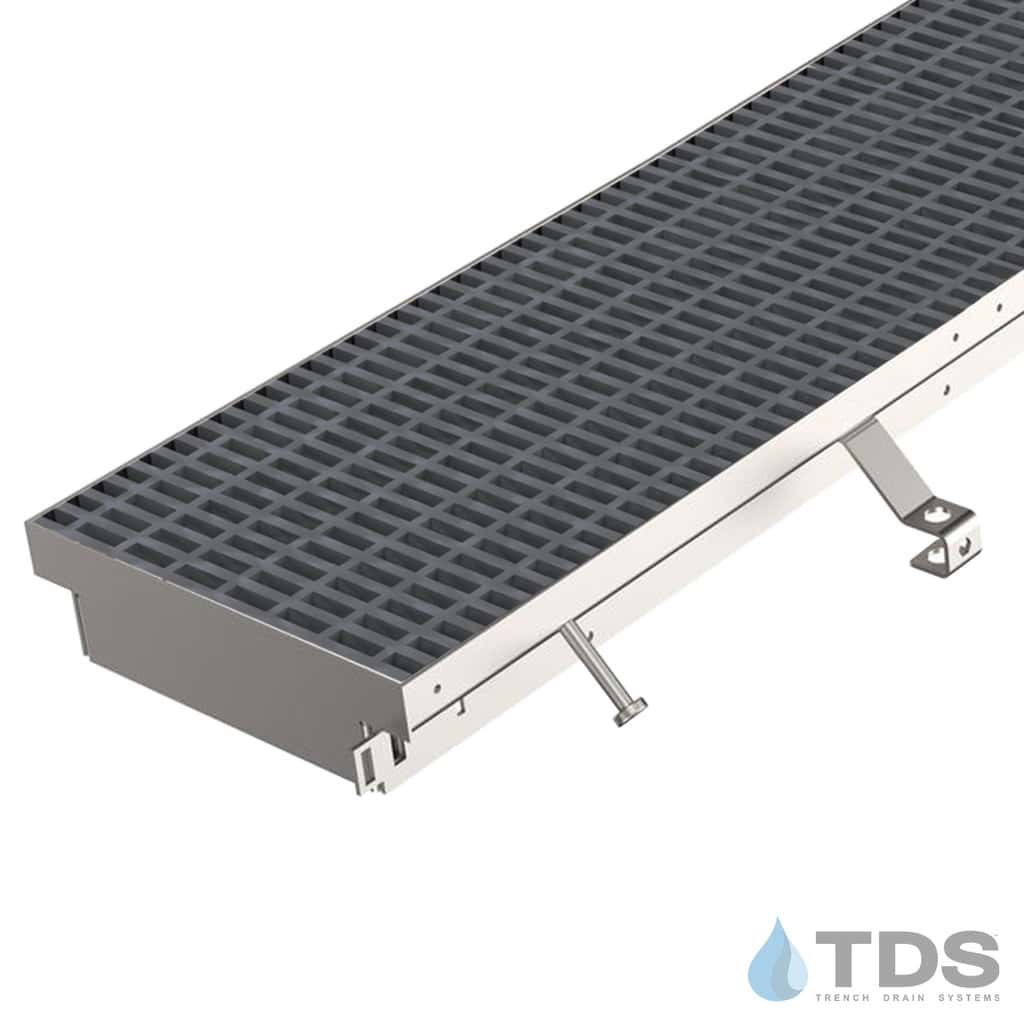

Trench•Era™ FF Series Drain System w/FG1244 14" Wide Class C Grate - HD Stainless Frame
Trench•Era™ FF Series Drain System w/FG1244 14" Wide Class C Grate - HD Stainless Frame
Additional Information
- Grate Width: 14.66" for TDS FP/FF/FE 1200
- Grate Thickness: 1.50"
- Product Type: Channel Kit, Kit
- Grate Material / Color / Finish: Fiberglass
- Manufacturer: TDS (Trench Drain Systems)
- System: FF Series
- Grate Load Class: Class C
- Grate Pattern: HLC
- Grate Pattern Style: INDUSTRIAL
- Channel Material: Form Your Own OR Site Built
- Channel Frame / Edging: Frame - Stainless
- Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, Transportation
Description

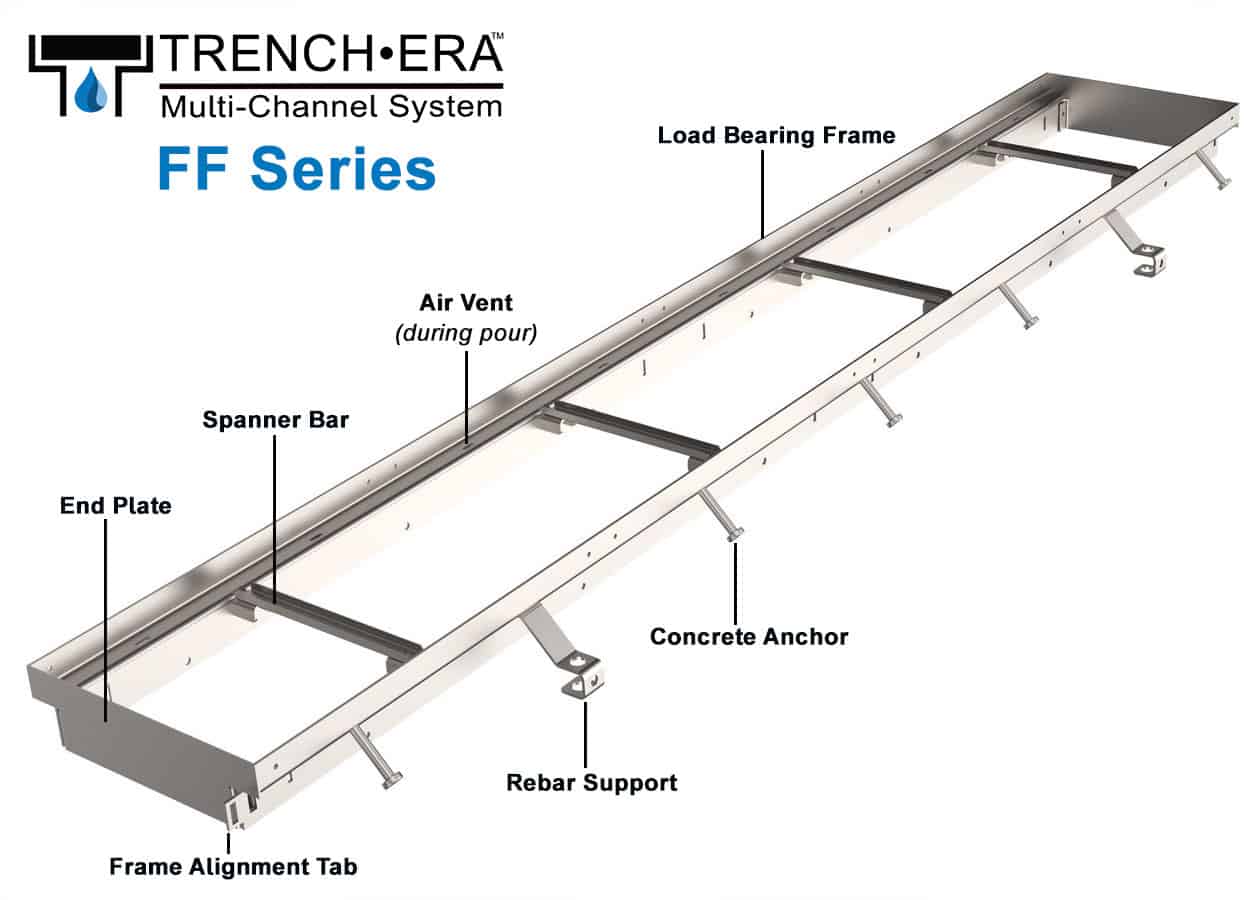

Designed for its versatility, the Trench•Era™ FF series drain system can accommodate a variety of high-capacity trench drain applications. This robust 'fast frame' and grate system is intended for channel drains that need to be fabricated on-site. This system provides a standard hardware pack with the exception of the supporting spanner bar that varies in size depending on the width of the system.
Each kit includes:

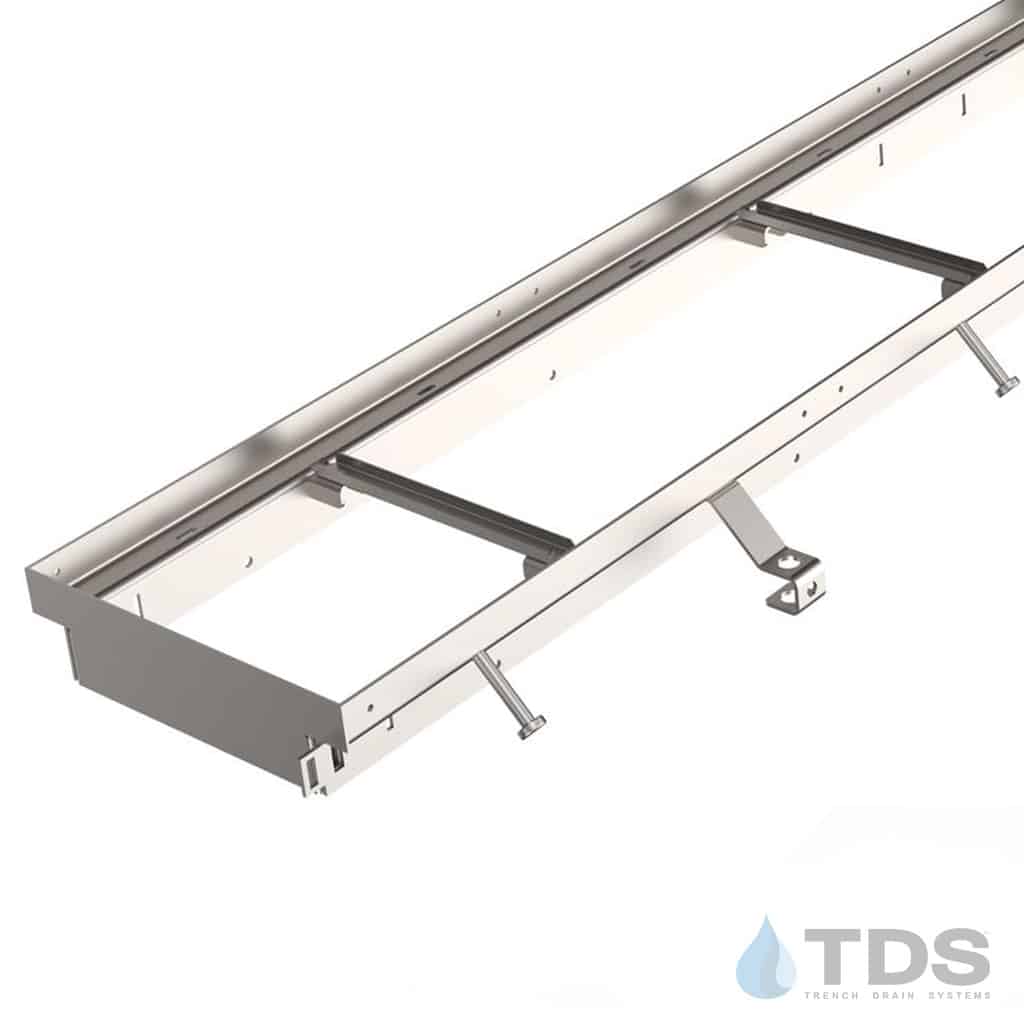

- Heavy-Duty Frame (Stainless)
- Grates
- Hardware Pack
- End Plates
Grating

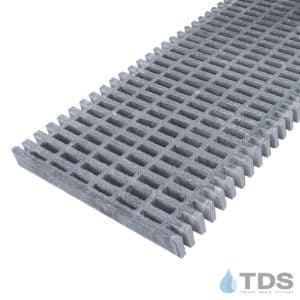

- FG1244 - (14" Wide)
- Fiberglass Mesh Grate - (Load Class C - DIN Rating)
- Actual dimensions : 14.59″ x 47.875″ x 1.5″
Large project? Request a Quote
