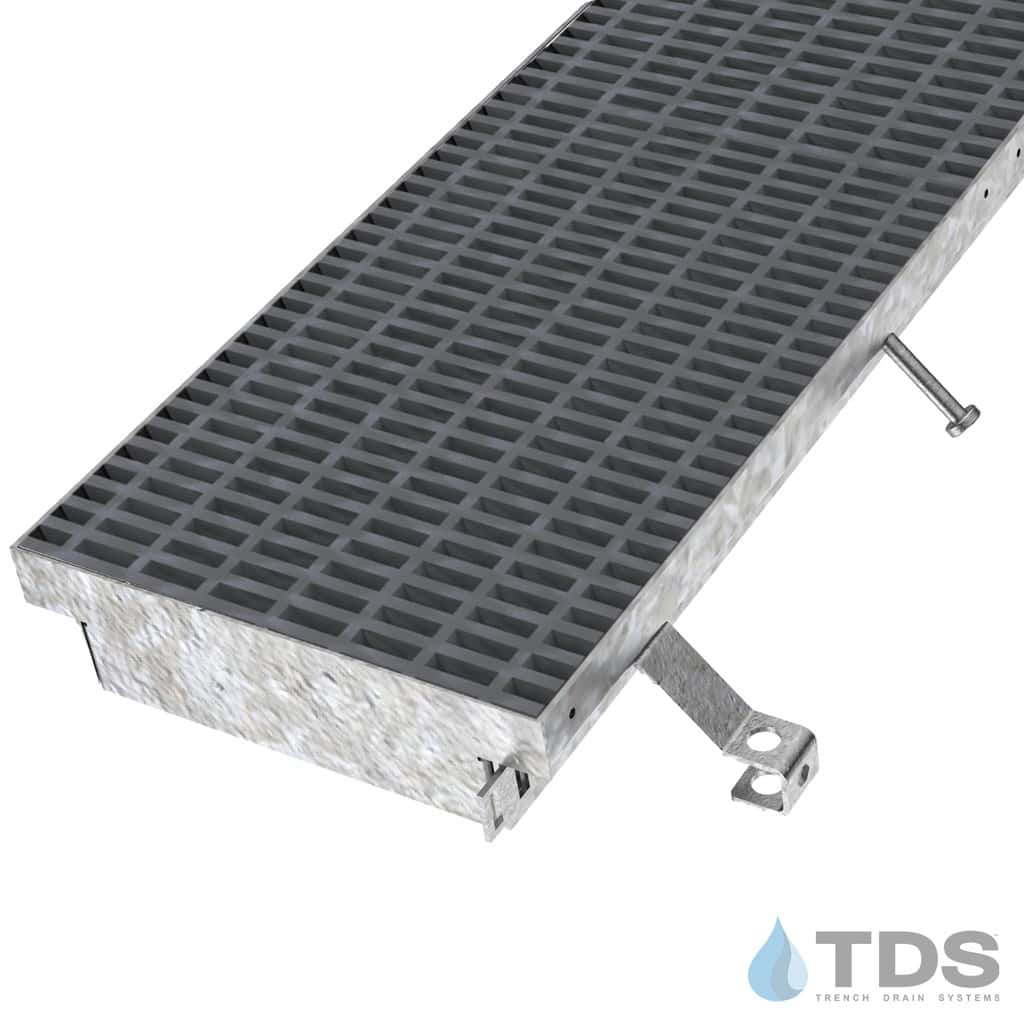

Trench•Era™ FF Series Drain System w/FG1244 14" Wide Class C Grate - HD Galvanized Frame

Additional Information

Grate Width: 14.66"
Grate Thickness: 1.50"
Product Type: Channel Kit, Kit

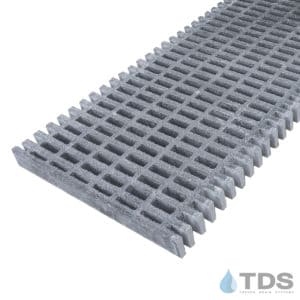

Grate Material / Color / Finish: Fiberglass - HLC
Manufacturer: TDS
System: FF Series
Grate Load Class: C
Grate Pattern: HLC
Grate Pattern Style: Industrial
Channel Material: Form Your Own OR Site Built
Frame/Edging: Galvanized
Application: General Purpose Drainage - Interior, General Purpose Drainage - Exterior, Residential, Transportation

Description

Each kit includes:

Heavy-Duty Frame (Galvanized)
Grates
Hardware Pack
End Plates

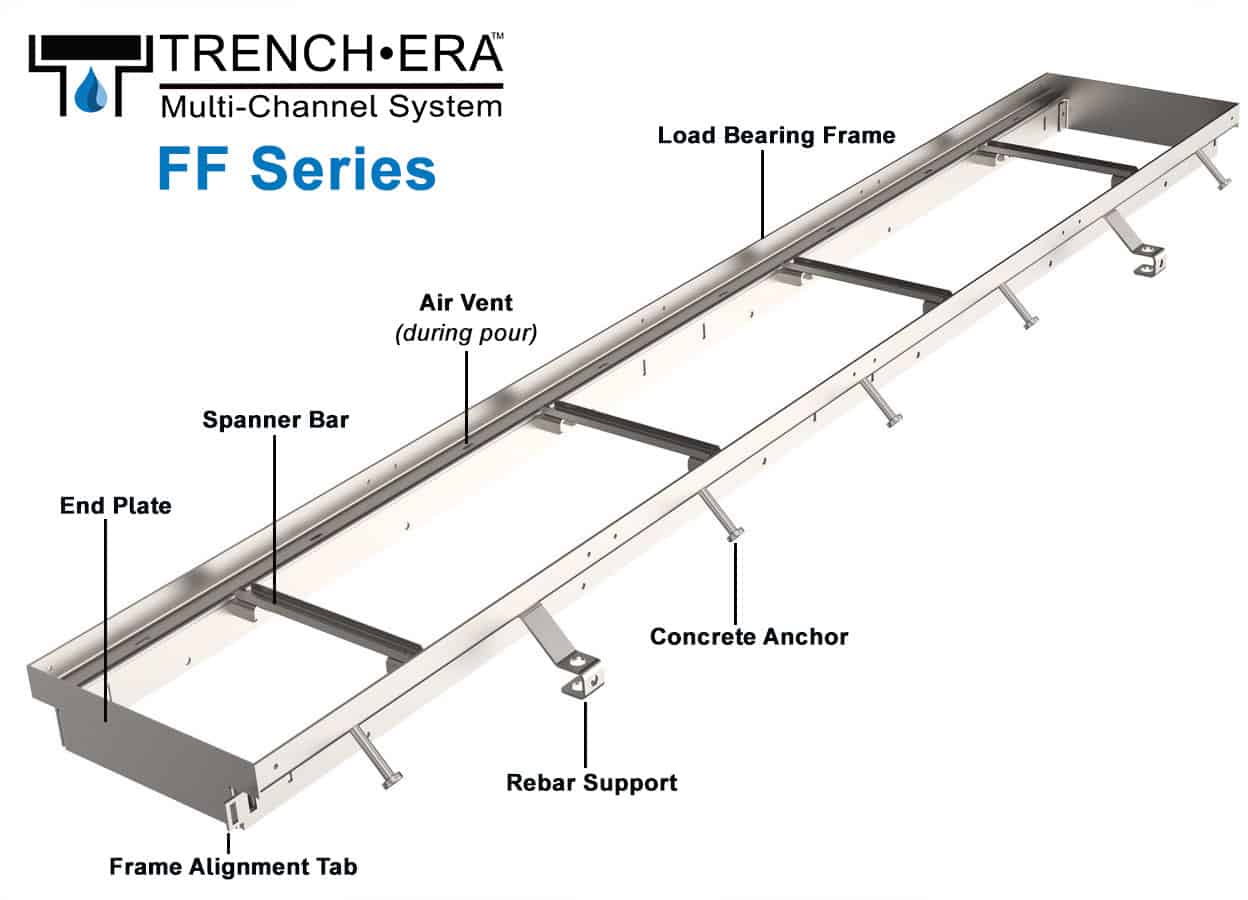

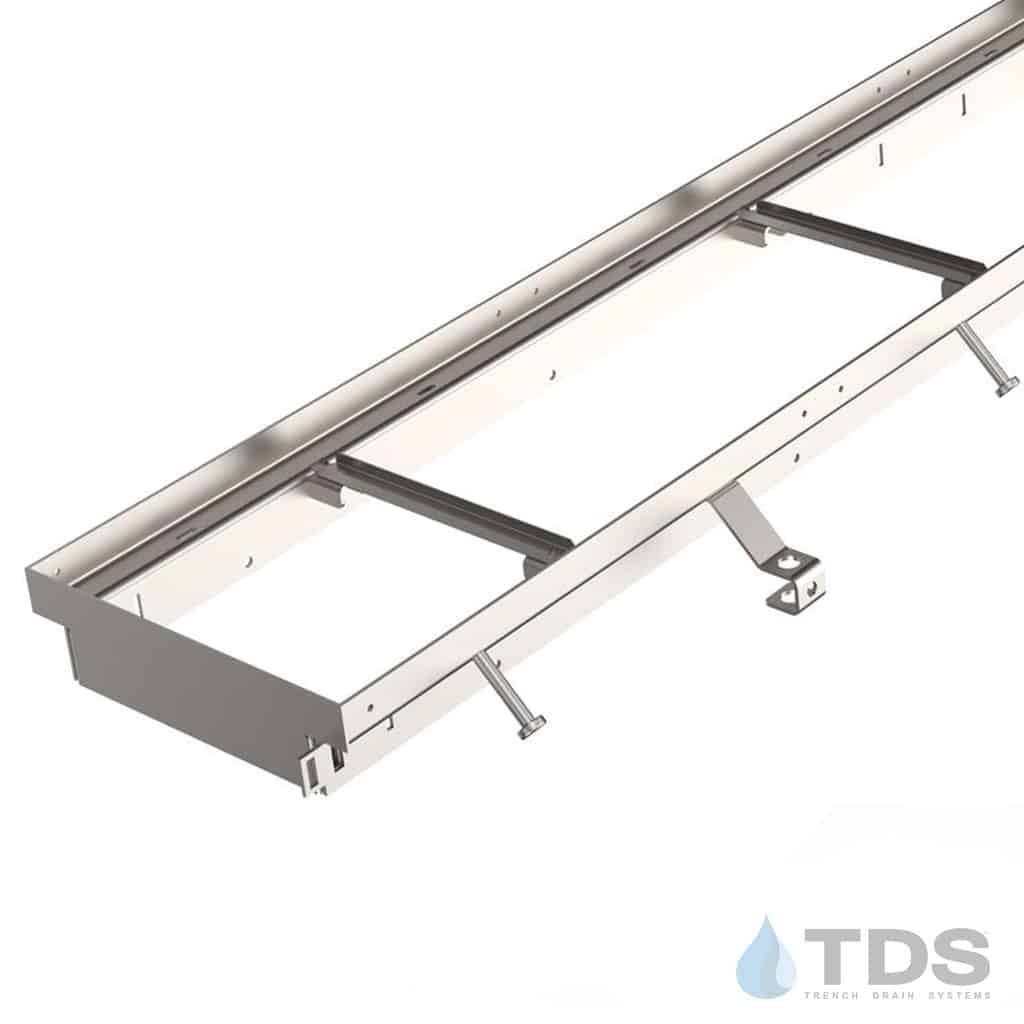

Trench Era Multi-Channel System Designed for its versatility, the Trench•Era™ FF series drain system can accommodate a variety of high-capacity trench drain applications. This robust 'fast frame' and grate system is intended for channel drains that need to be fabricated on-site. This system provides a standard hardware pack with the exception of the supporting spanner bar that varies in size depending on the width of the system. Frame lengths are available in 4', 6' and 8' sections and are determined by the length of the system selected.
