Catch Basin Kit Includes:
- Grate (Stainless Steel Bar Grate)
- Locking Device
- Catch Basin
- HDPE Frame (Raises system to a Load Class E)
Large project? Request a Quote

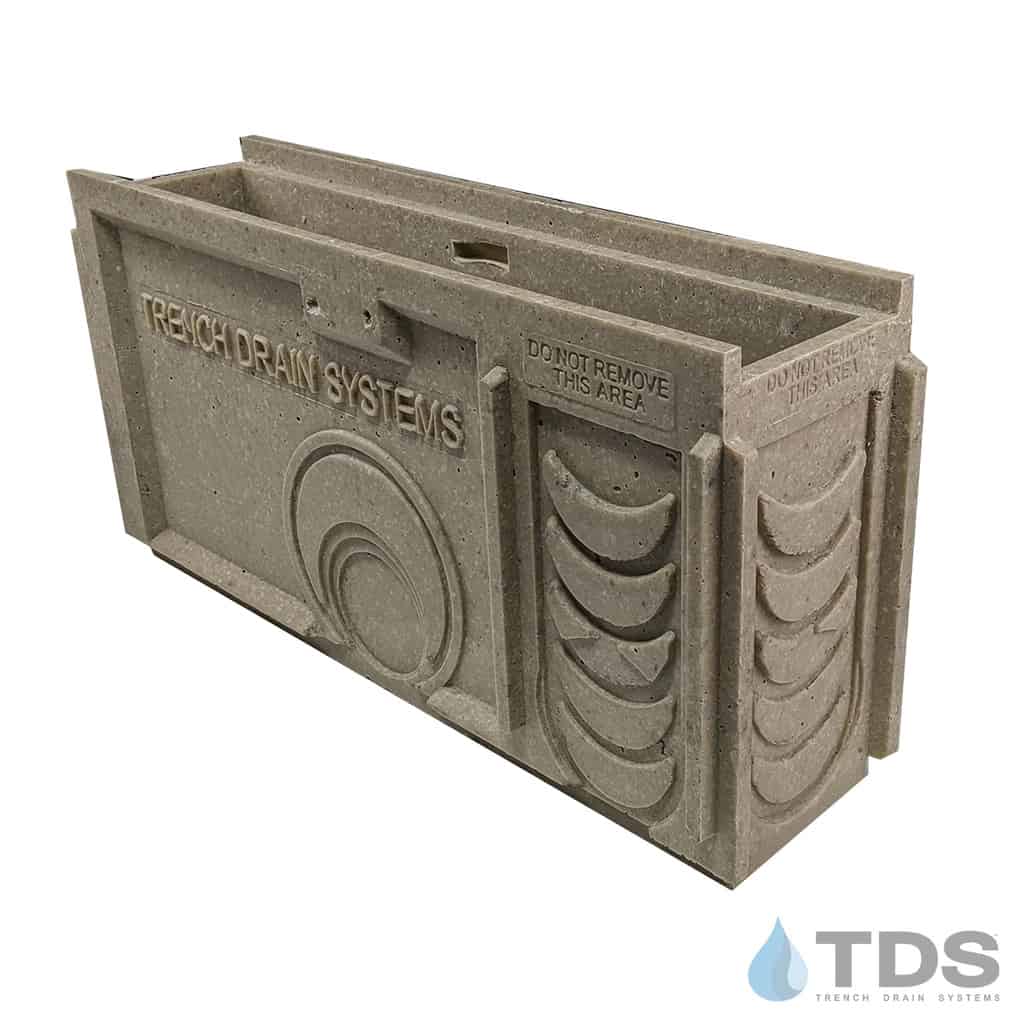

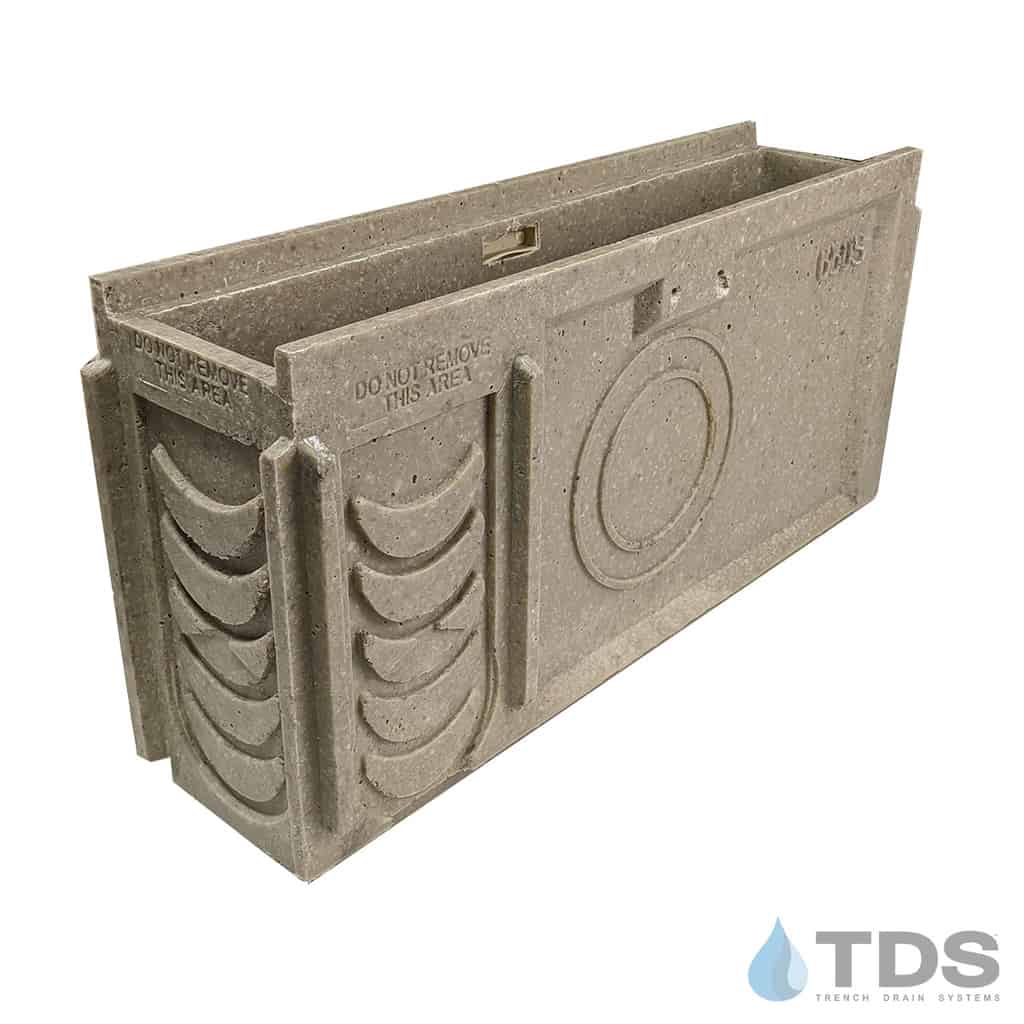

The TDS Catch Basin is an important part of a pre-sloped drainage system. This catch basin is manufactured with high-strength, corrosion-resistant material and designed to be used as collection points or drain run transitions.
The TP0750S can be used as an individual catch basin with a ductile iron frame or with a POLYCAST® drain system. It can also be set atop the taller POLYCAST® DP0650 catch basin for deeper installation and larger capacity.
This neutral short catch basin accepts the same grating options, edging, and frames as the POLYCAST® 600/700 trench drain systems.

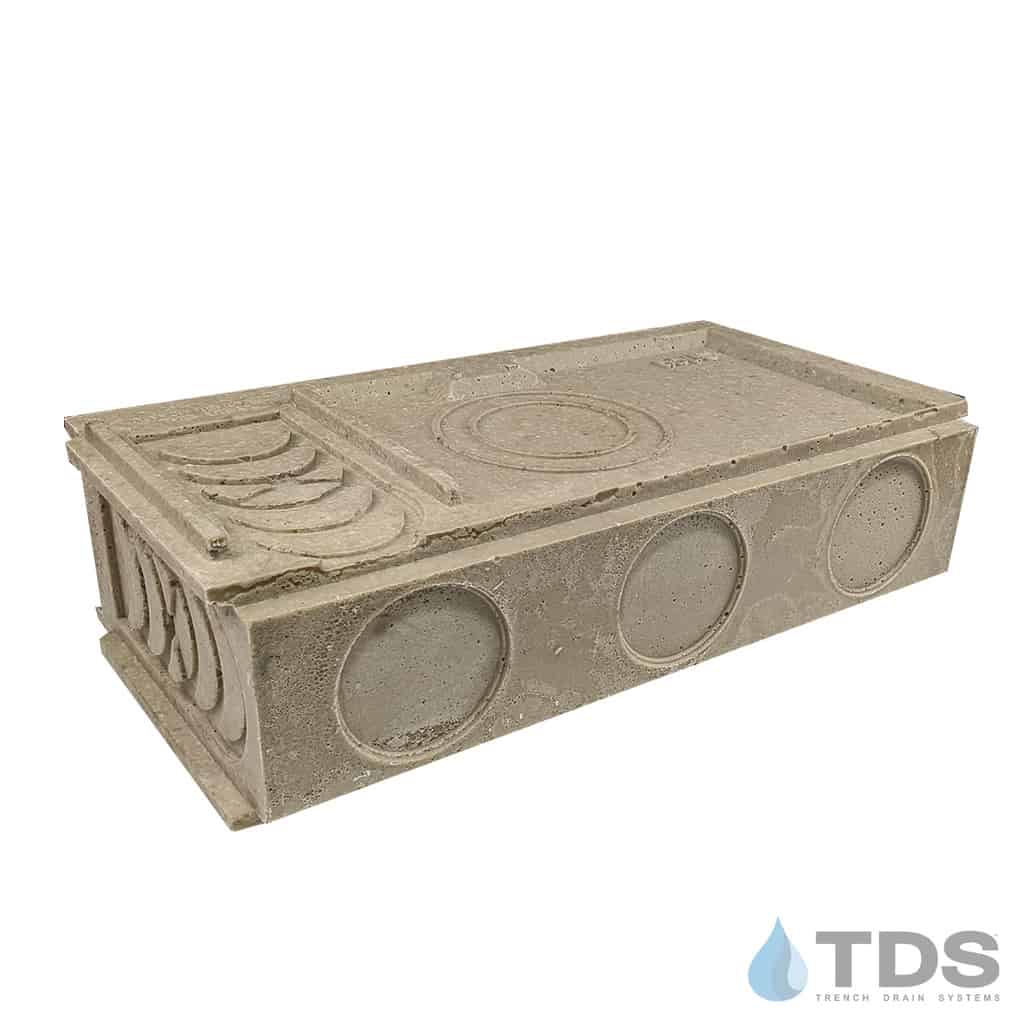

Cut-outs for side, bottom, and end outlets are located on the catch basin for easy installation. Core drill is available before shipment (at an additional cost).
The following POLYCAST® channels correspond with the catch basin (add DG0700AC frame for 700 series): 600N, 605, 610, 615, 620, 625, and their corresponding halves and neutrals.

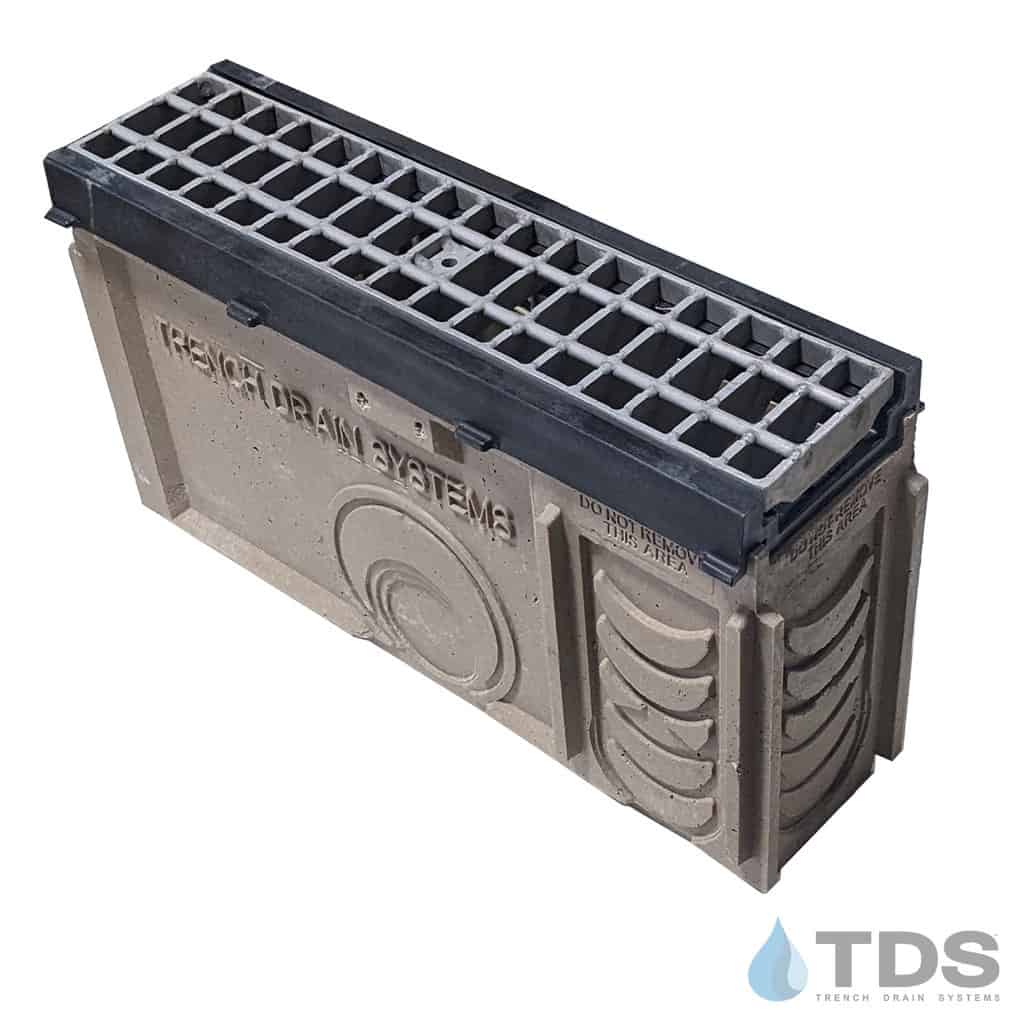

Catch Basin with Frame Actual Dimensions: 6 1/4"W x 24"L x 13 3/16"H
DG0669 Grate Specification Sheet

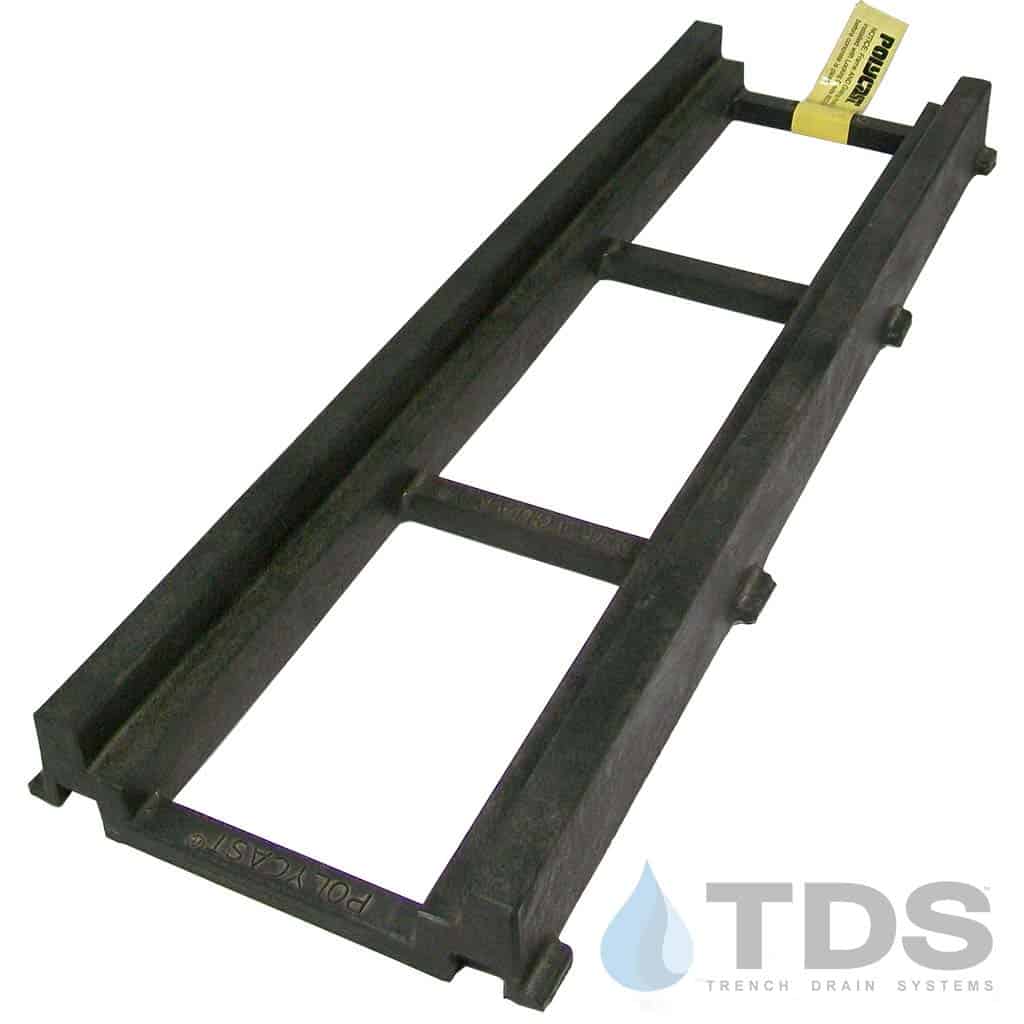

DG0700PE Frame Specification Sheet
Grating:

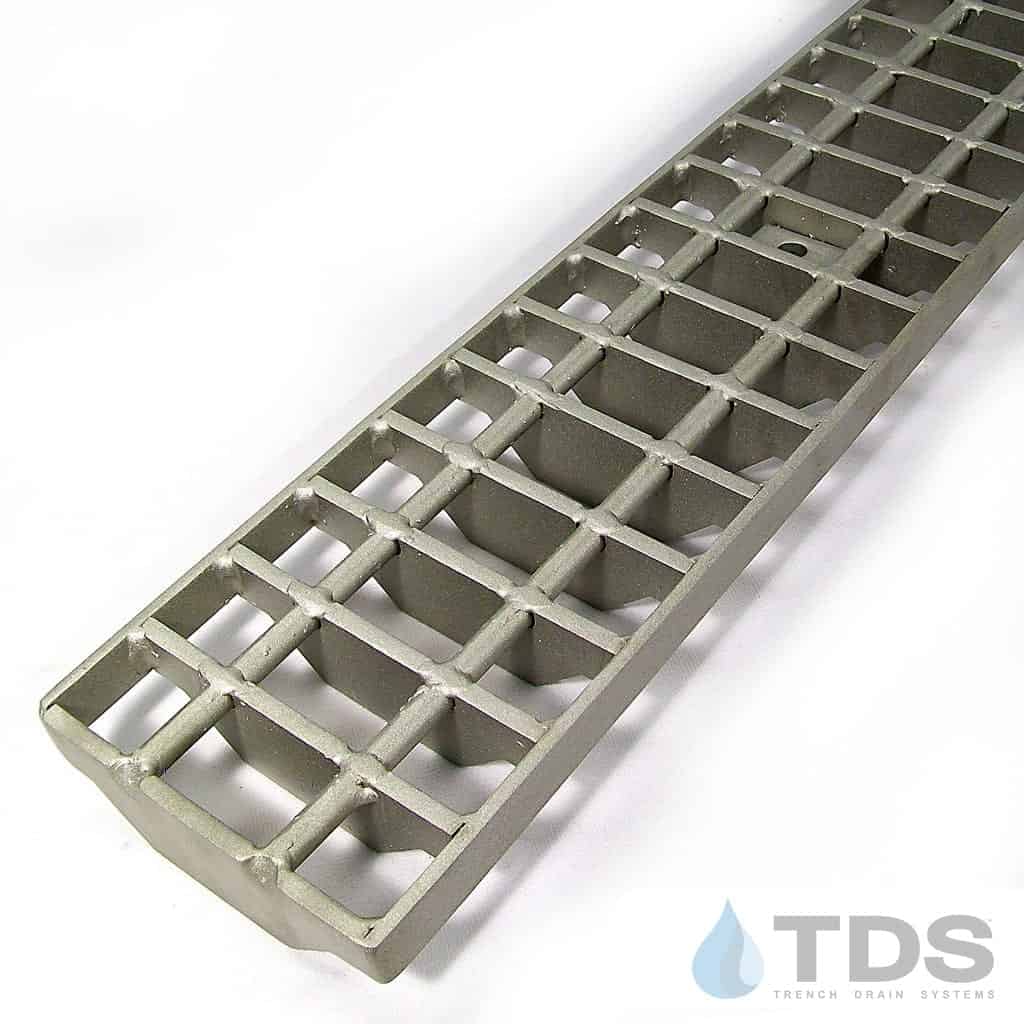

- DG0669 - Stainless Steel Bar Grate - (Class D Load Rating)
- Open Area: 42% (41.62IN2)
- Color: Silver
Catch Basin Kit Includes:
- Grate (Stainless Steel Bar Grate)
- Locking Device
- Catch Basin
- HDPE Frame (Raises system to a Load Class E)
