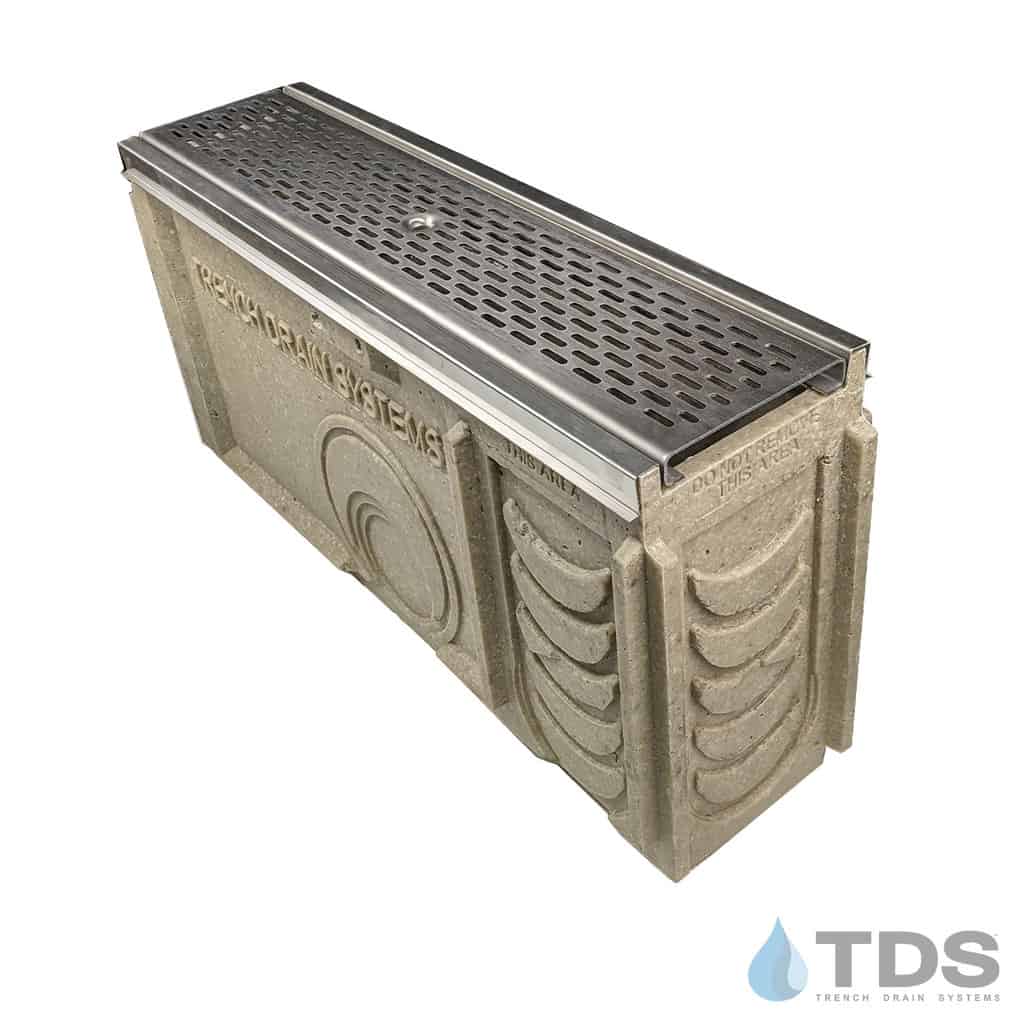

TP0650S (Shallow) Catch Basin Kit w/ DG0631H & Stainless Edge for POLYCAST®

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish: Stainless Steel 304

Manufacturer: Hubbell - POLYCAST and TDS (Trench Drain Systems)

System: POLYCAST 600

Grate Load Class: Class A

Grate Pattern: TRANSVERSE SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Stainless

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

Catch Basin Kit Includes:
• Grate
• Locking Device
• Catch Basin
• Stainless Edge

Large project? Request a Quote

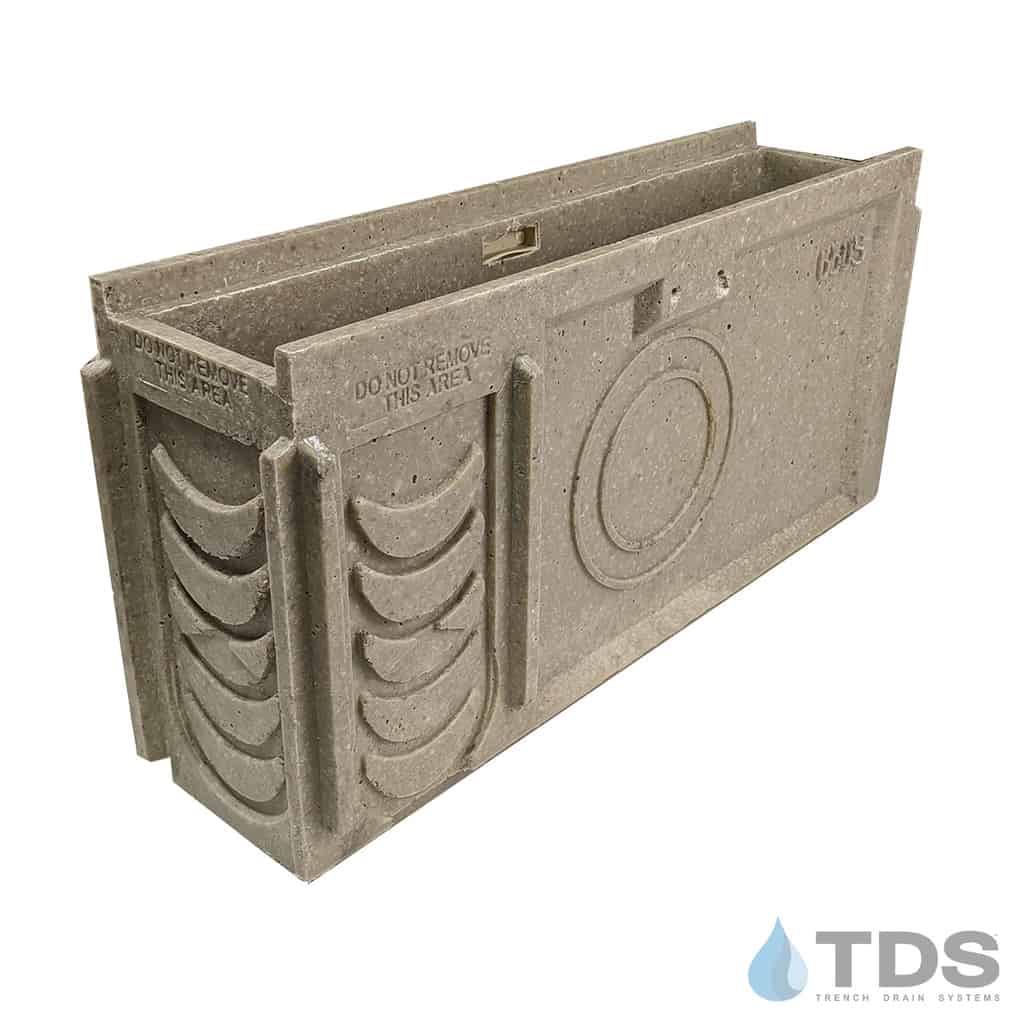

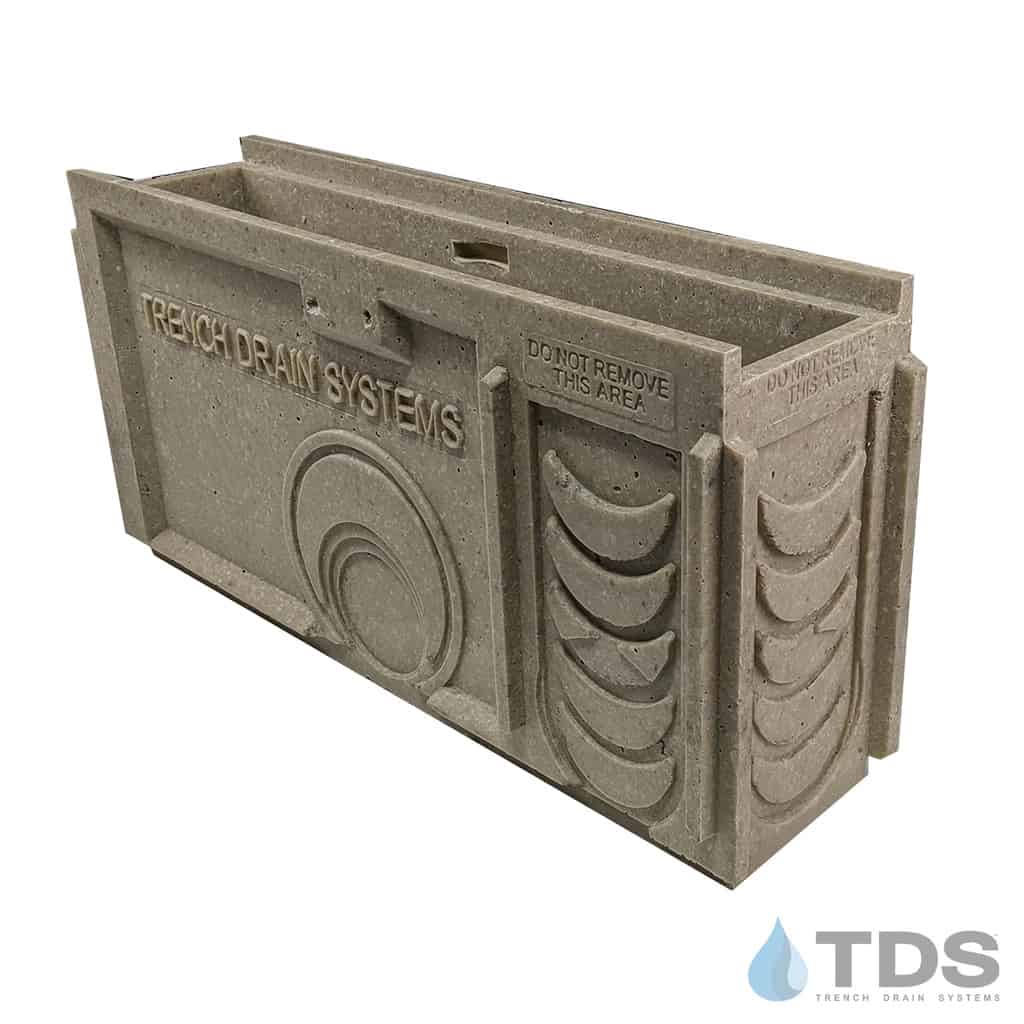

The TDS Catch Basin is an important part of a pre-sloped drainage system. This catch basin is manufactured with high strength, corrosion-resistant material and designed to be used as collection points or drain run transitions.

The TP0650S can be used as an individual catch basin, or with a POLYCAST® drain system. It can also be set on top of the taller POLYCAST® DP0650 catch basin for deeper installation and larger capacity.

This short catch basin accepts the same grating options, edging, and frames as the POLYCAST® 600 trench drain system.

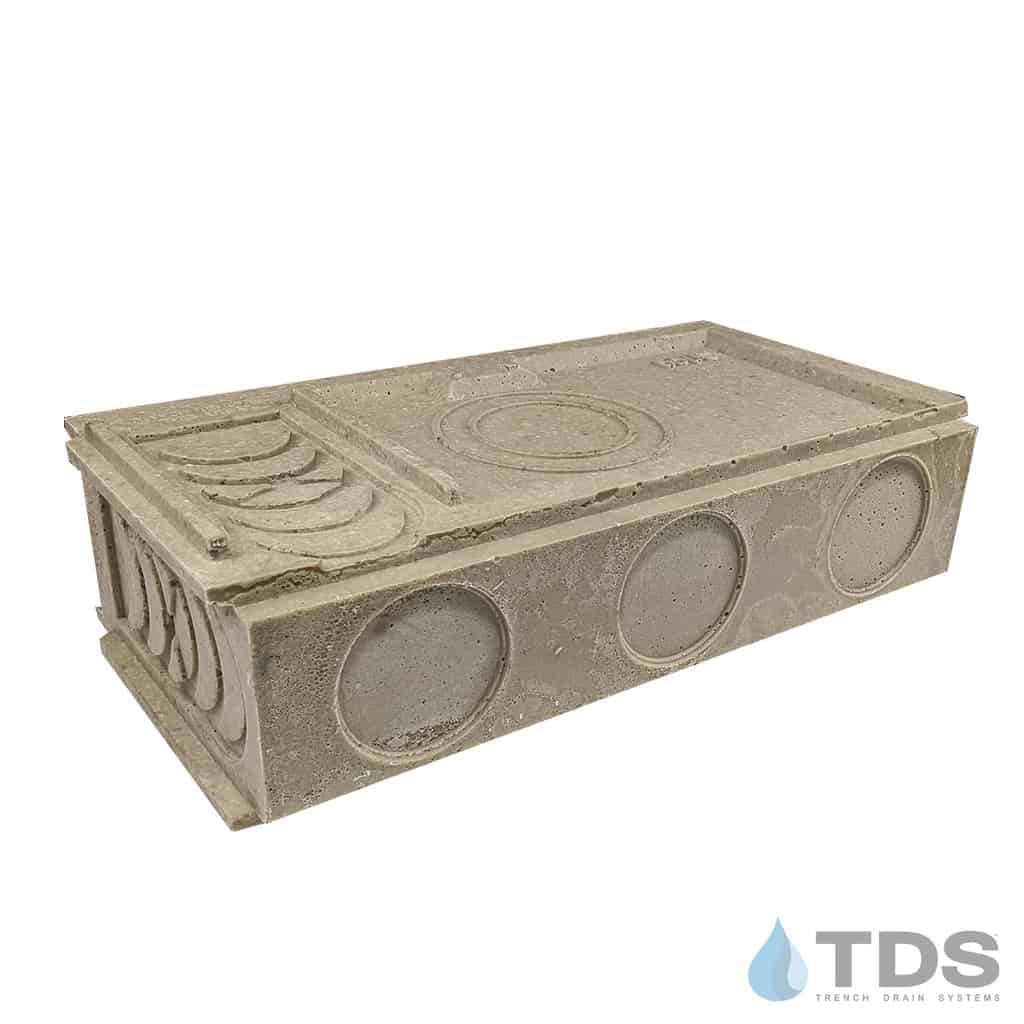

Cut-out for side, bottom, and end outlets are located on the catch basin for ease of installation. Core drill is available prior to shipment (at an additional cost).

The following POLYCAST® channels correspond with the catch basin: 600N, 605, 610, 615, 620, 625 and their corresponding halves and neutrals.

Catch Basin Actual Dimensions: 6 1/4"W x 24"L x 12"H

Catch Basin Kit Includes:

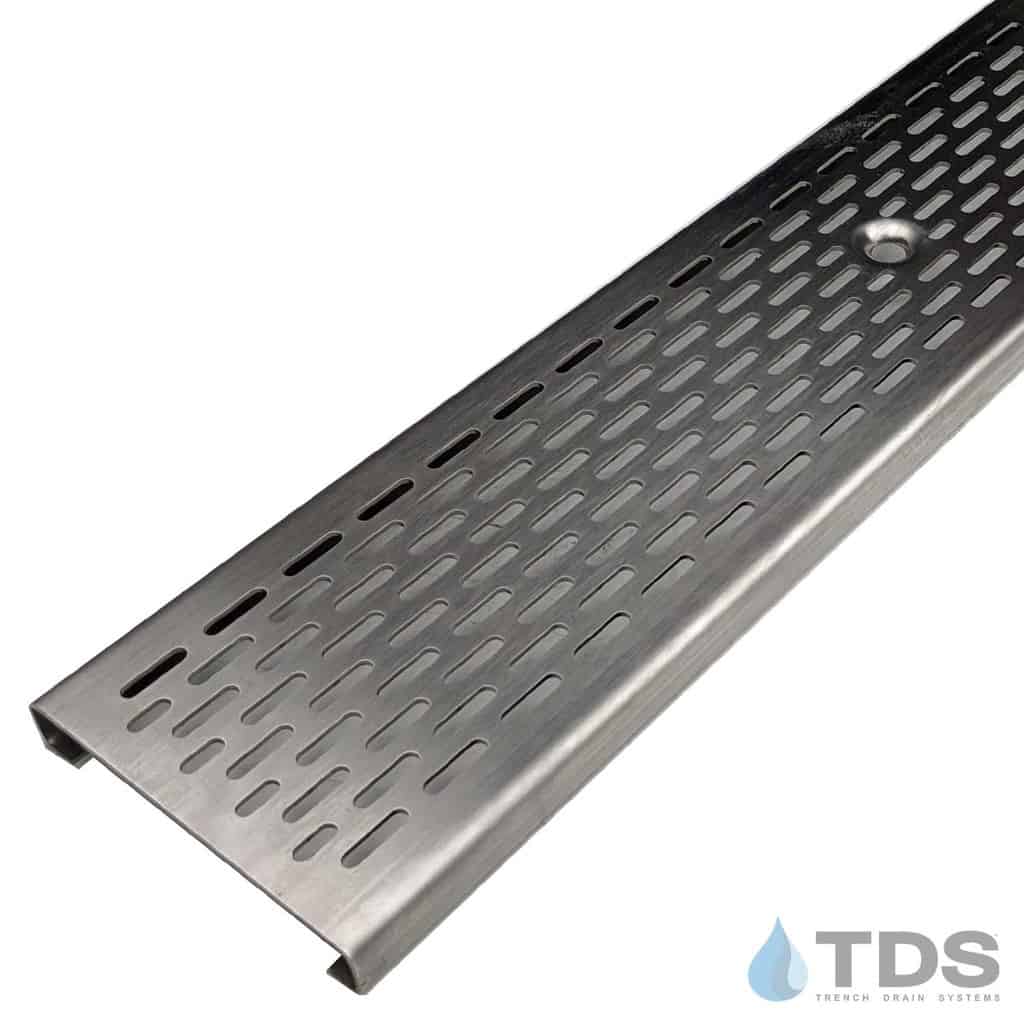

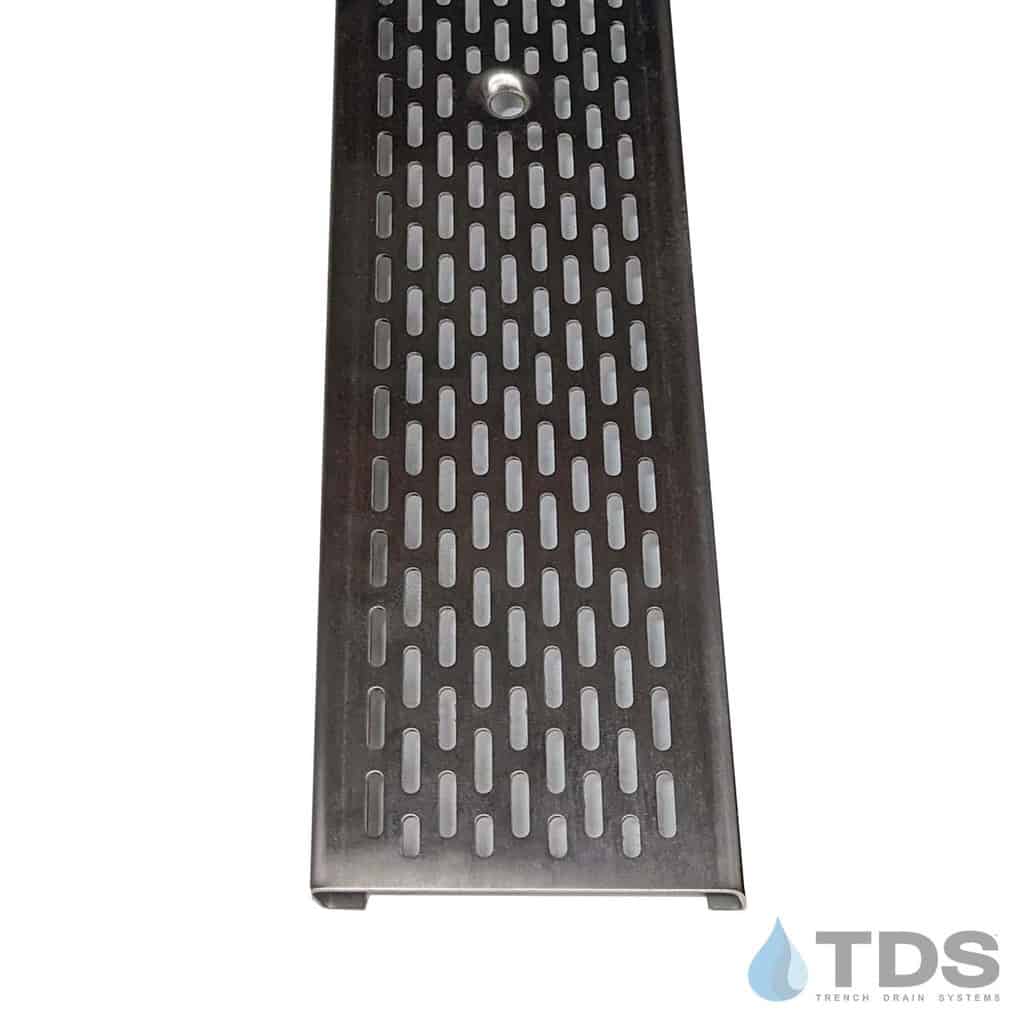

• Grate (Stainless Steel Transverse Slotted, Load Class A)
• Locking Device
• Catch Basin

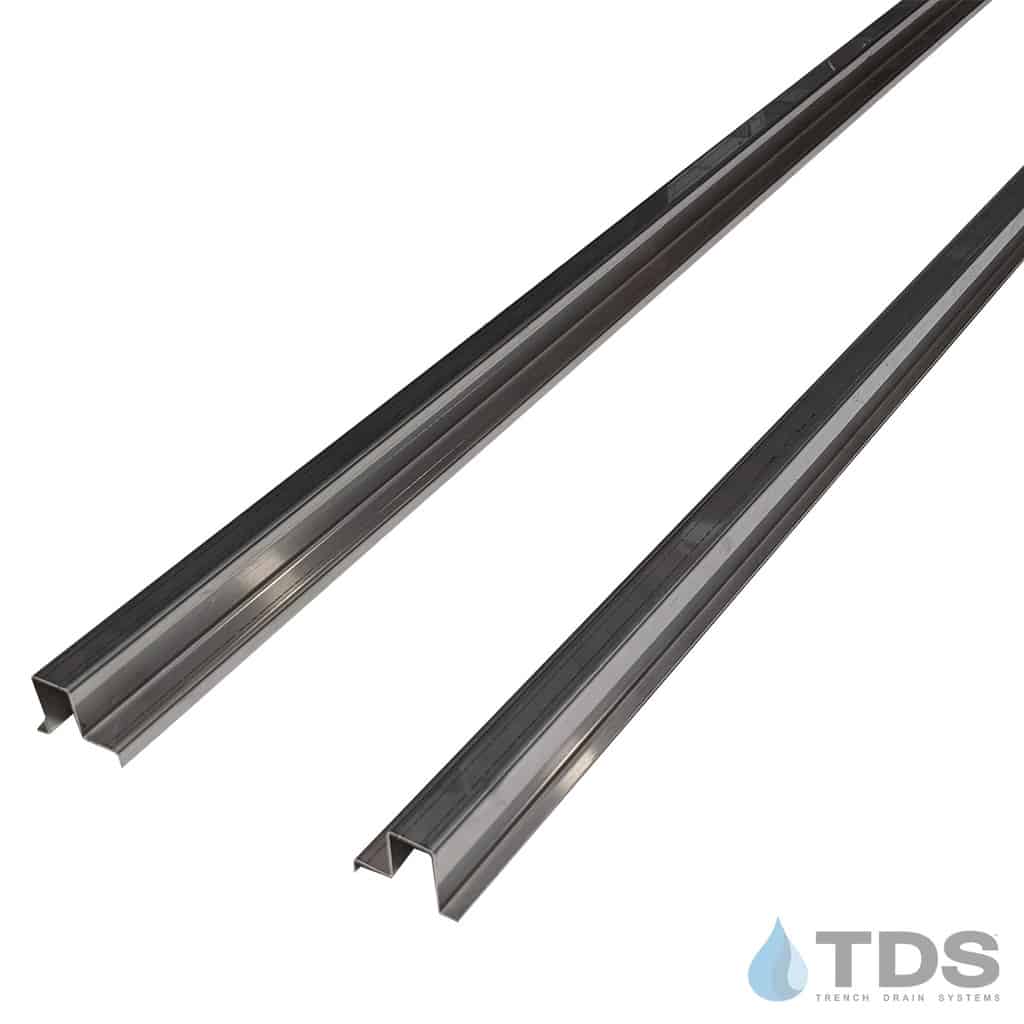

• Stainless Edge

Want to learn more about this system? Click Here for more information.
