TDS SS0642F Hold-Down Device for SS600 Fiberglass Grates

TDS SS0642F Hold-Down Device for SS600 Fiberglass Grates

  • SS0642F_TDS
1 1

Drainage Kits

SS0642F

Each locking device includes: Round Head Screw Butterfly Clip Lock Bar Large project? Request a Quote
$29.73 USD
$0.00 USD $29.73 USD
Sale Sold out
View full details

Additional Information

  • Grate Width: 5.25"
  • Grate Thickness: 0.75"
  • Product Type: Channel Part, Channel Grate, Grate
  • Grate Material / Color / Finish:
  • Manufacturer: TDS
  • System: SS0600
  • Grate Load Class:
  • Grate Pattern:
  • Grate Pattern Style:
  • Channel Material: Stainless 304
  • Frame/Edging: No Frame, No Edging
  • Application: Chemical Processing, Food Processing, General Purpose Drainage - Interior

Description

Each locking device includes:
Round Head Screw
Butterfly Clip
Lock Bar

Large project? Request a Quote

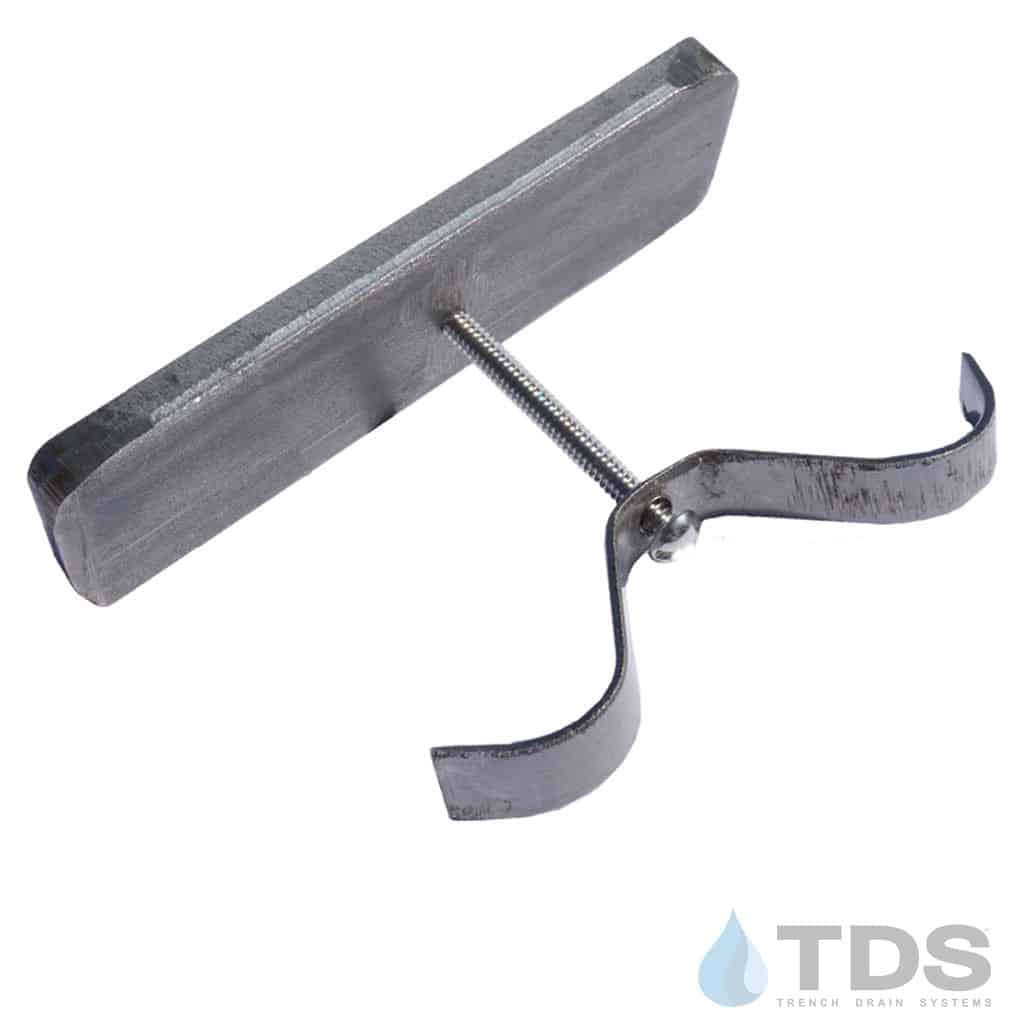

TDS SS600 series Locking device for Fiberglass Grates. Part# SS0642F

Each locking device includes:
6-32 x 1-1/2" Round Head Screw
Butterfly Clip
Lock Bar that measures 3/4" x 3-3/4"

Designed to fit SS600 System Grates:

  • DG0644H 24" Vinyl Ester Fiberglass bar grating with 3/8" spacing
  • DG0644 H 48" Vinyl Ester Fiberglass bar grating with 3/8" spacing
  • DG0644SPH 24" Vinyl Ester Fiberglass bar grating with 5/8" spacing
  • DG0644SP 48" Vinyl Ester Fiberglass bar grating with 5/8" spacing

Grates need to be locked in place in situations where there's a possibility they will be driven over, preventing the grates from hopping. It also prevents debris from working in between the grates and channels which can ultimately damage the grates. This helps to provide system integrity when used appropriately.

Specification sheet for SS0642F
