TDS-POLYCAST DP0699F Channel Adapter Female-to-Female

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish:

Manufacturer: Hubbell - POLYCAST

System: POLYCAST 600, POLYCAST 700, and POLYCAST 900

Grate Load Class:

Grate Pattern:

Grate Pattern Style:

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Frame - None, Edging - None, Edging - Galvanized, Edging - Stainless, Frame - Ductile Iron, and Frame - HDPE

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Transportation

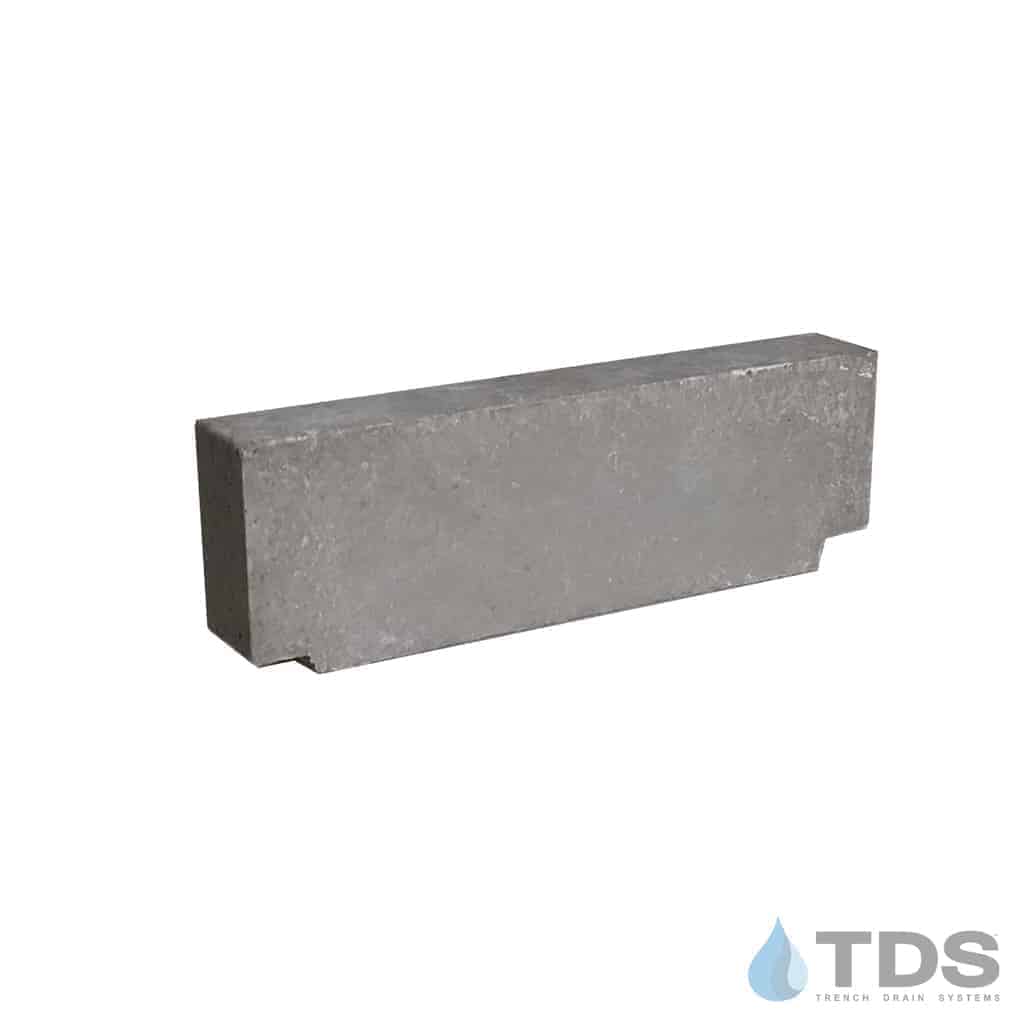

The DP0699F Female-to-Female Adapter is used to fill the gap between the top of the female to female joint. For POLYCAST® 600 system only.

Male and Female transition devices are available for POLYCAST® 600 where channel runs are in opposite directions and two channels are set either female to female or male to male. The DP0699F female transition piece is used to fill the top space of the female-to-female joint. (This applies to 600 Series only.) An epoxy grout or urethane sealer can be used to smooth over the gap on the inside of the channel.

Specification Sheet for DP0699F
