TDS-POLYCAST DA0633 Installation Chair

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish:

Manufacturer: Hubbell - POLYCAST

System: POLYCAST 500, POLYCAST 600, POLYCAST 700, and POLYCAST 900

Grate Load Class:

Grate Pattern:

Grate Pattern Style:

Channel Material: Polymer Concrete - Polyester and Polymer Concrete - Vinyl Ester

Channel Frame / Edging: Frame - None, Edging - None, Edging - Galvanized, Edging - Stainless, Frame - Ductile Iron, and Frame - HDPE

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, Sports Complex - Recreational, and Transportation

Simplifies the installation of POLYCAST® 500, 600, and 700 series channels.

The installation chair for POLYCAST is the most efficient and economical means of setting up a precast trench drain system. Installation chairs support the ends of the channels, align and lock the joint rigidly together and prevent the channels from floating. Adjusting channel elevation on your rebar is easy with the POLYCAST® Installation Chair.  Can be used with the 500,600, and 700 series channels.

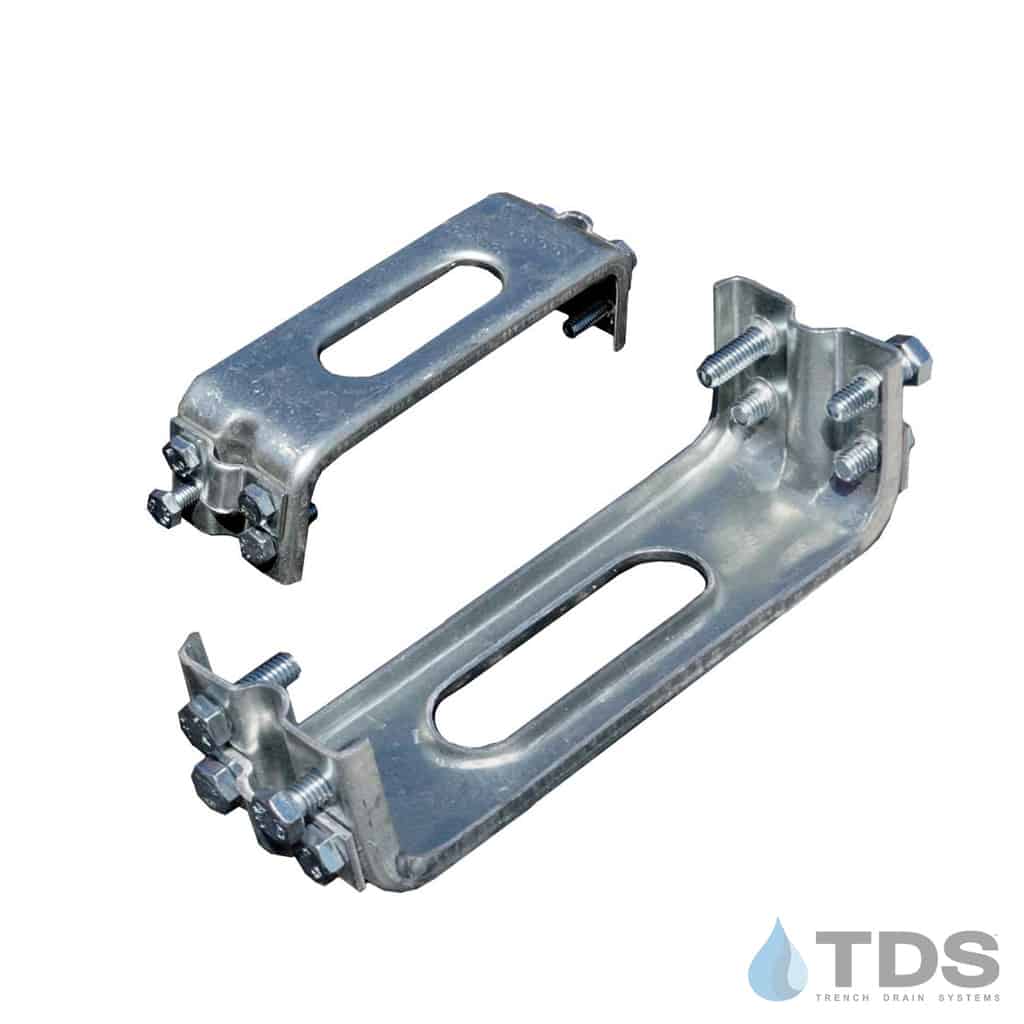

POLYCAST® install chair (bracket) DA0633

Color: Silver
Material: Zinc Plated Steel
Type: Channel Accessories/Installation Chair

Dimensions

• Height 2 in
• Length 7.63 in
• Weight .9 lb
• Width 2.38 in

Specification Sheet for DA0633
