TDS-POLYCAST DA0542F Hold-Down Device for 500 Series Fiberglass Grates

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish: Fiberglass

Manufacturer: Hubbell - POLYCAST

System: POLYCAST 500

Grate Load Class:

Grate Pattern:

Grate Pattern Style:

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Frame - None and Edging - None

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

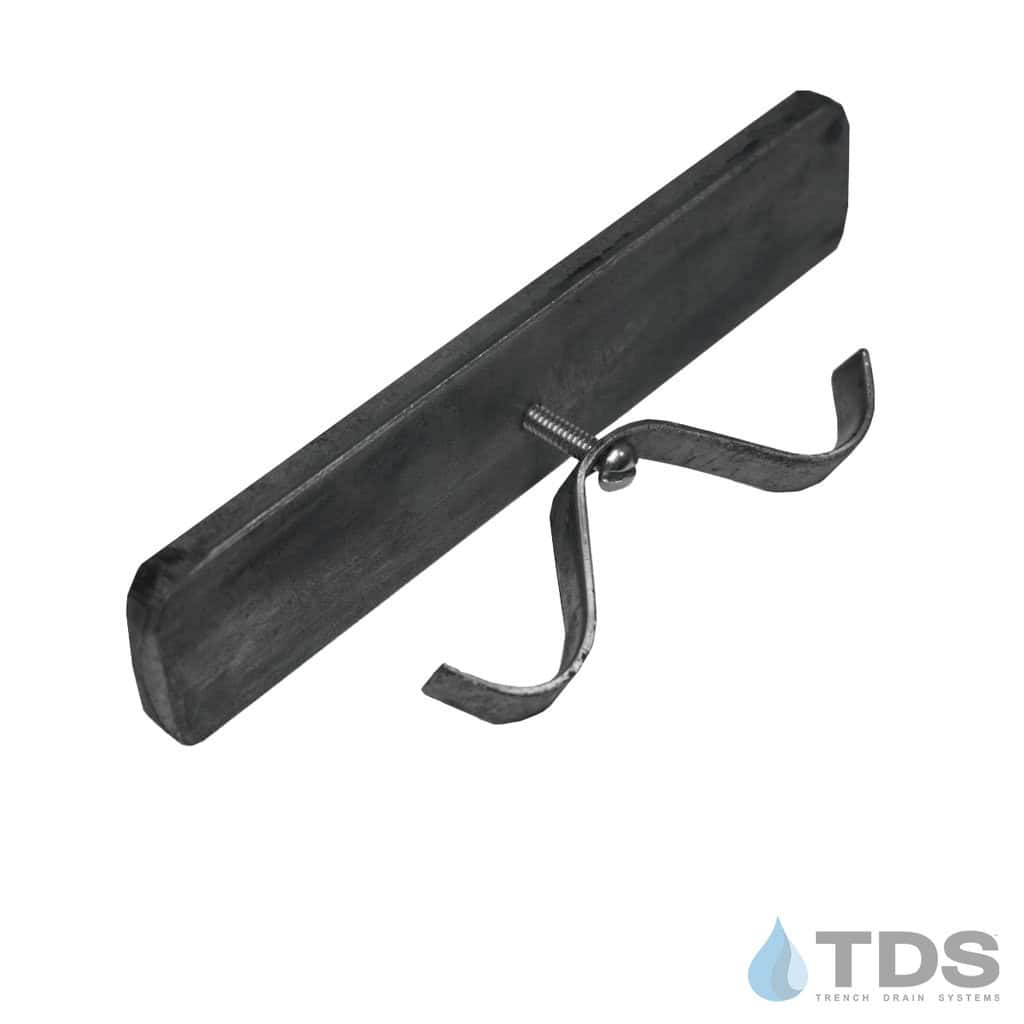

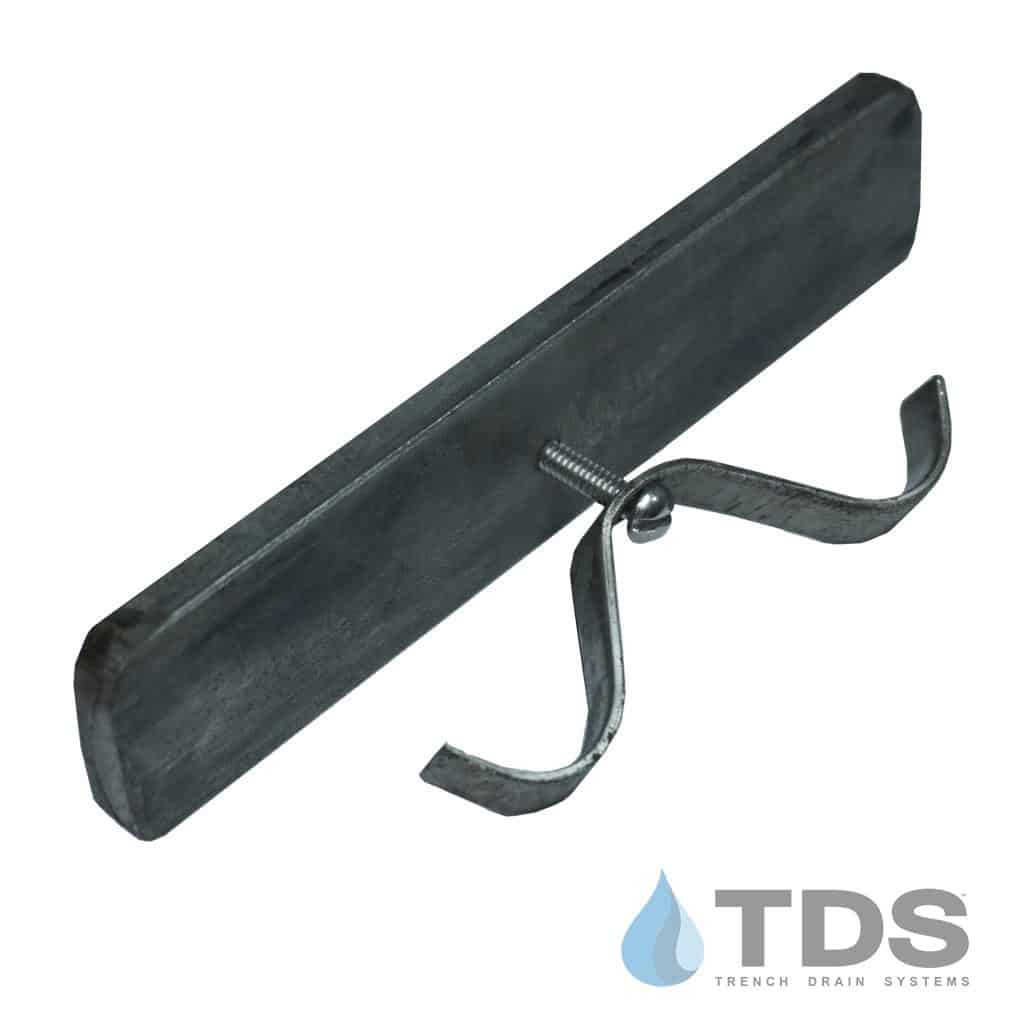

POLYCAST 500 Fiberglass Grate Locking Device.

Each locking device includes:
Round Head Screw
Butterfly Clip
Lock Bar

Locking device for POLYCAST 500 series for fiberglass grates.

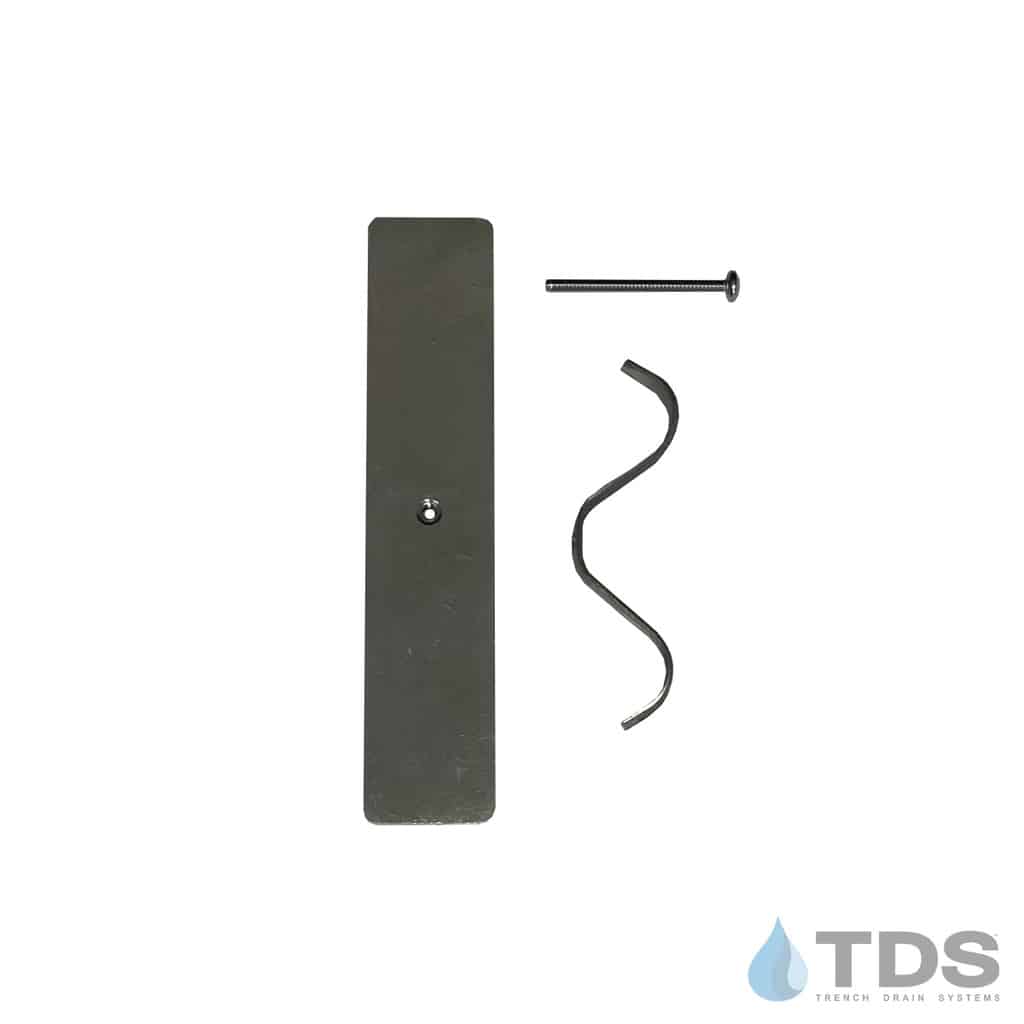

Each locking device includes:
Round Head Screw 6-32 x 1.50"
Butterfly Clip
Lock Bar 1" x 4.75"

Designed to fit: POLYCAST 500 System

Compatible Grates:

• FG0644H 24" Fiberglass VE Bar Grate 5/8" Spacing
• FG0644 48" Fiberglass VE Bar Grate 5/8" Spacing
• FG0644SPH 24" Fiberglass VE Bar Grate 3/8" Spacing
• FG0644SP 48" Fiberglass VE Bar Grate 3/8" Spacing

Grates need to be locked in place in situations where there's a possibility they will be driven over, preventing the grates from hopping. It also prevents debris from working in between the grates and channels which can ultimately damage the grates. This helps to provide system integrity when used appropriately.

Specification Sheet for DA0542F
