TDS-POLYCAST DA0542BH Hold-Down Device for 500 Series Ductile Iron Grates

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: Hubbell - POLYCAST

System: POLYCAST 500

Grate Load Class:

Grate Pattern:

Grate Pattern Style:

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Frame - Ductile Iron and Frame - HDPE

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

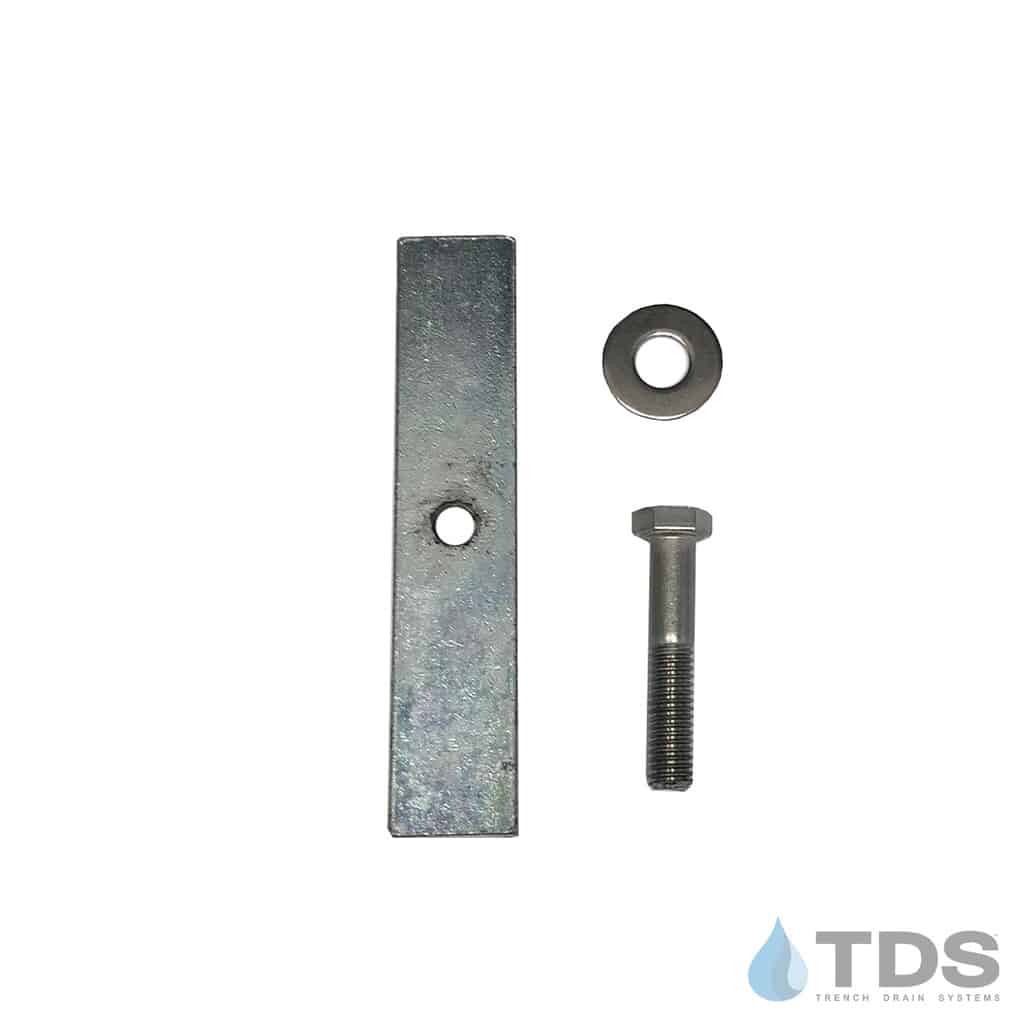

Each locking device includes:
HEX Head Cap Screw
Flat Washer
Lock Bar

Locking device for POLYCAST 500 series with flat head screw for ductile iron grates with frames. Part# DA0542BH

Each locking device includes:
3/8-16 X 2-1/2" HEX Head Cap Screw
3/8" Flat Washer
1" X 4.88" (123.83 mm) Lock Bar

Designed to fit: POLYCAST 500 System

Compatible Grates:

• DG0641D Slotted Ductile Iron Grate
• DG0641S Solid Ductile Iron Grate (ADA Compliant)
• DG0675HD Transverse Slotted Ductile Iron Grate (ADA Compliant)
• DG0692 Ductile Iron Patriot Grate

Grates need to be locked in place in situations where there's a possibility they will be driven over, preventing the grates from hopping. It also prevents debris from working in between the grates and channels which can ultimately damage the grates. This helps to provide system integrity when used appropriately.

Specification Sheet for DA0542BH
