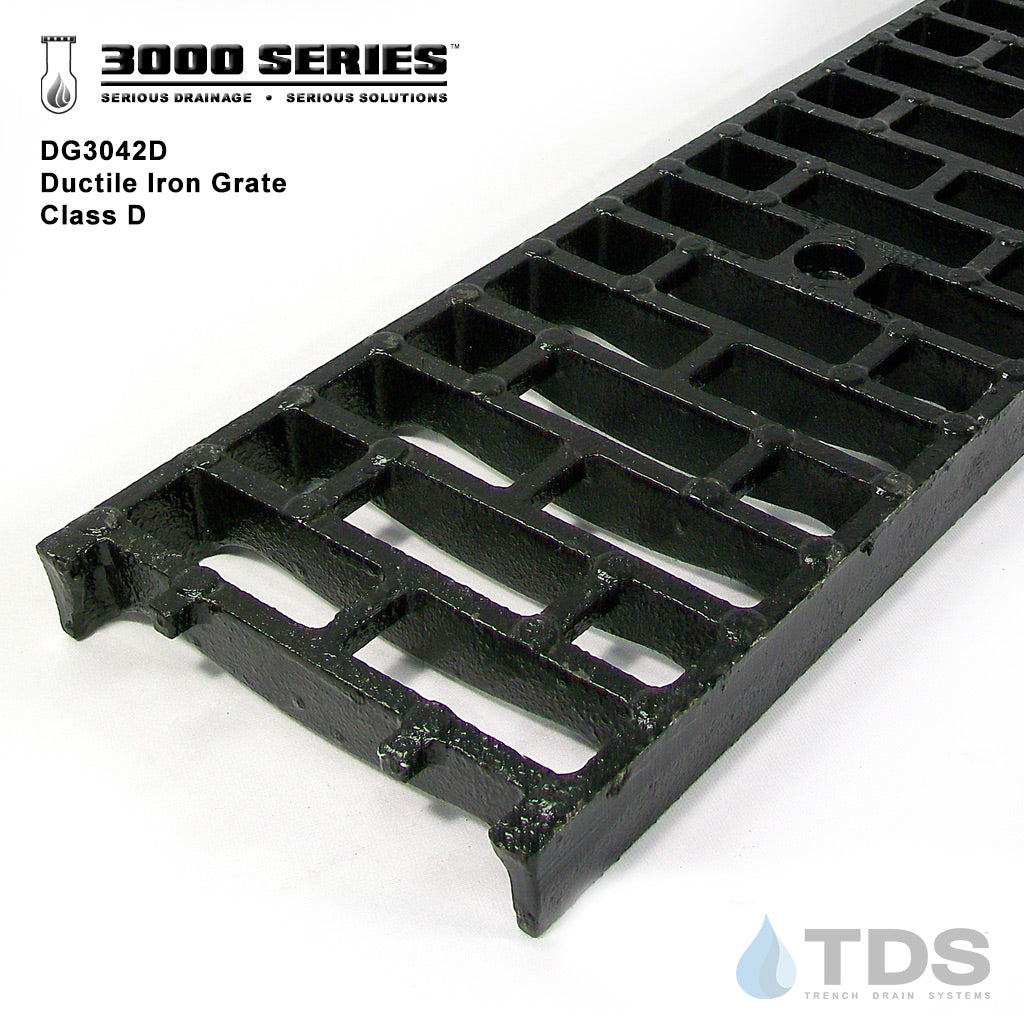

TDS DG3042D Class D Slotted Ductile Iron 8" x 24" Grate

Grate Width: 8.00"

Grate Thickness: 1.50"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: TDS (Trench Drain Systems)

System: 3000 Series (Replacement Parts Only), FE0600, FF Series, and FP1200 (Replacement Part Only)

Grate Load Class: Class D

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Fiberglass - Polyester, Cast in Place / EPS Foam, and Form Your Own OR Site Built

Channel Frame / Edging: Edging - Galvanized and Edging - Stainless

Application: Chemical Processing, General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Transportation

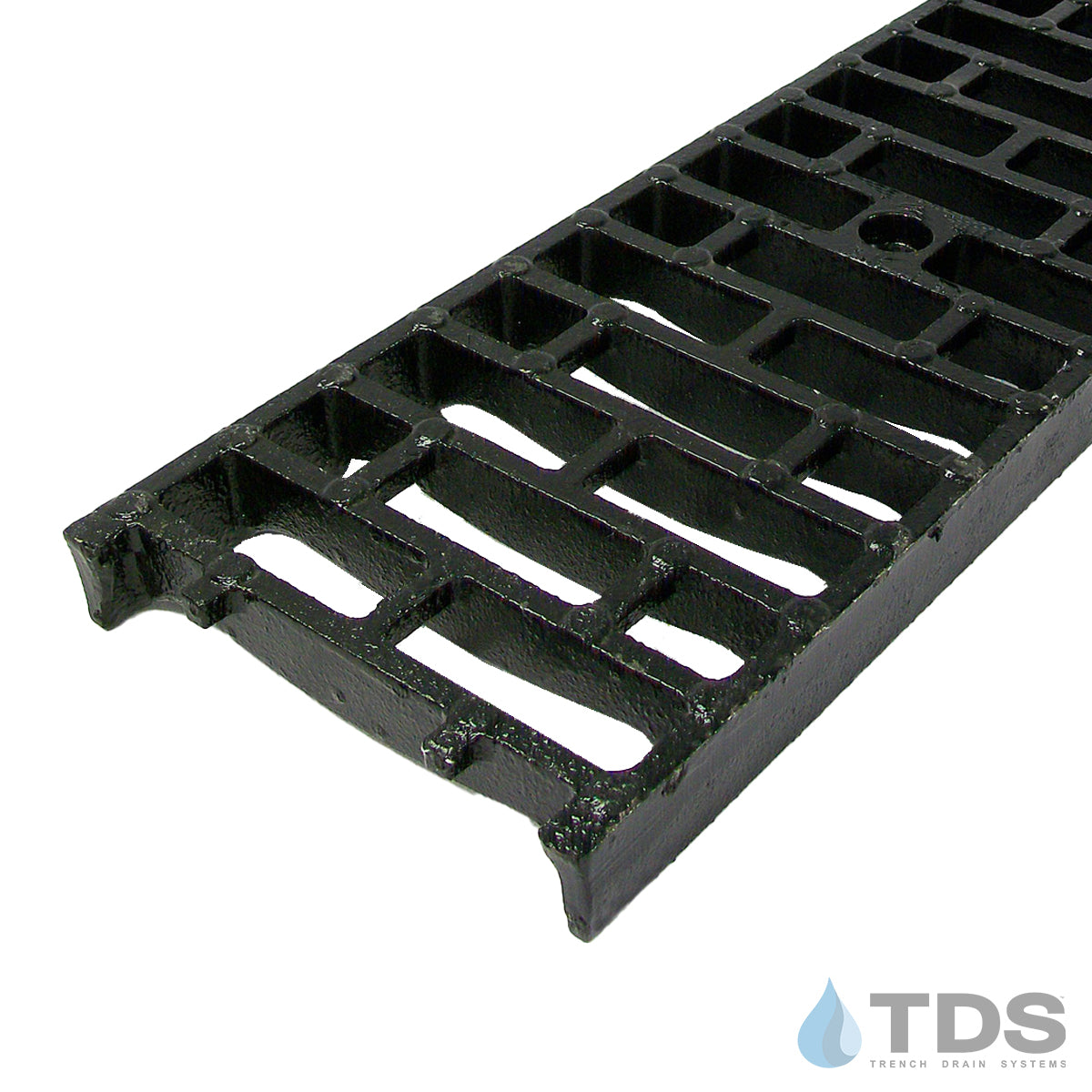

Ductile iron Class D grate for the 3000 Series by Trench Drain Systems™.  Black paint finish. Meets Class D Loading Requirements. Locking devices not included (DA3042B)

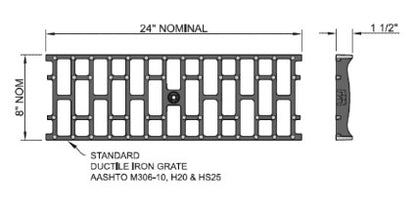

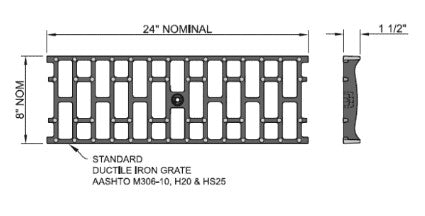

DG3042D Grate Specification Sheet
