TDS DG3041D Class F Slotted Ductile Iron 8" x 24" Grate

Grate Width: 8.00"

Grate Thickness: 1.50"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: TDS (Trench Drain Systems)

System: 3000 Series (Replacement Parts Only), FE0600, FF Series, and FP1200 (Replacement Part Only)

Grate Load Class: Class F

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Fiberglass - Polyester, Cast in Place / EPS Foam, and Form Your Own OR Site Built

Channel Frame / Edging: Edging - Galvanized and Edging - Stainless

Application: Chemical Processing, General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Transportation

For aircraft runways, docks, and high-impact wheel loads. Made in USA!
Large project? Request a Quote

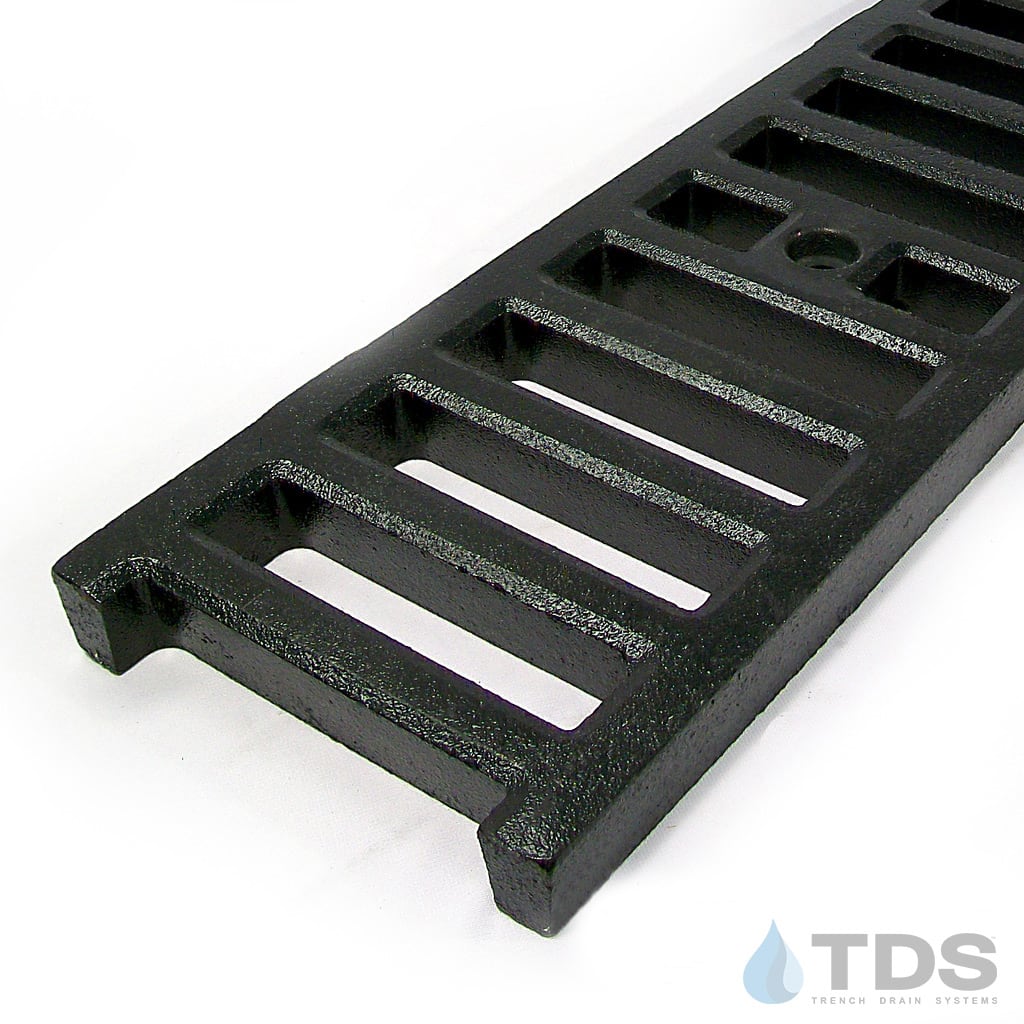

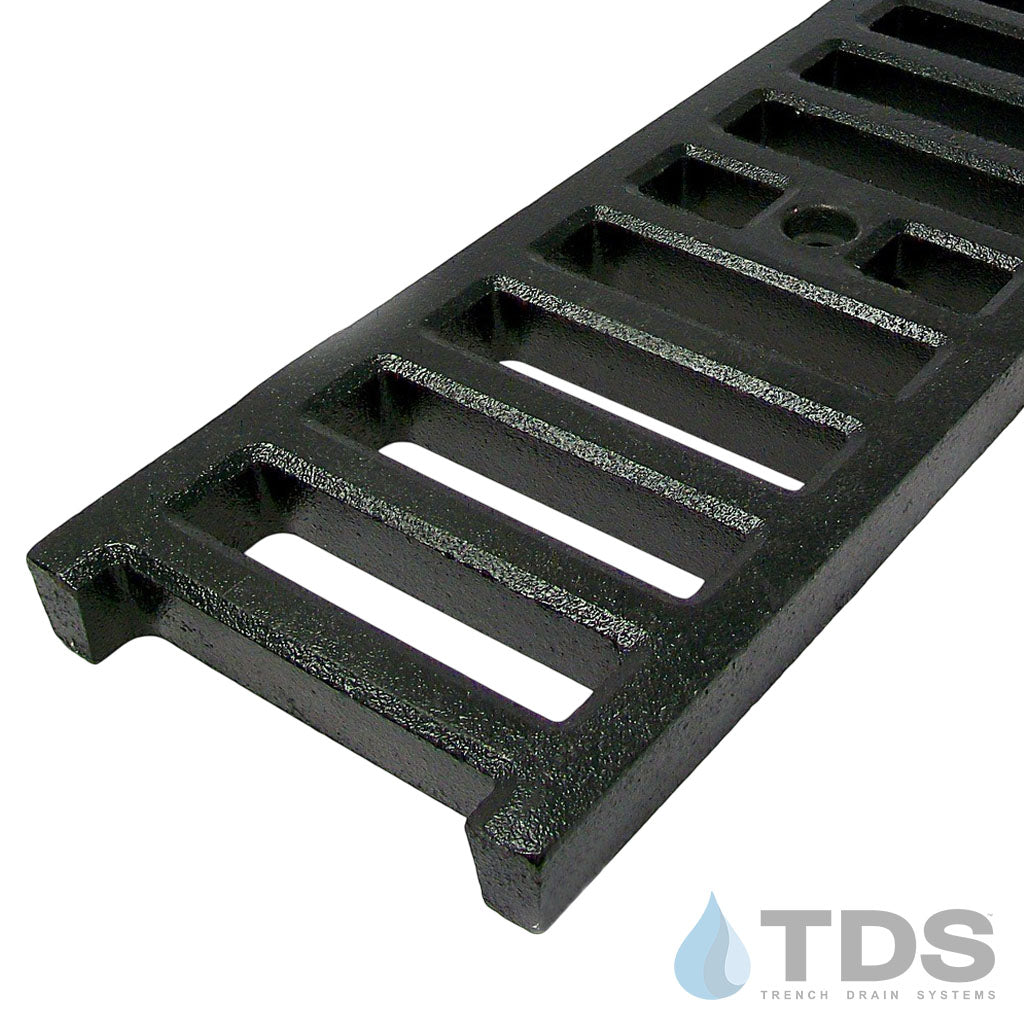

The TDS DG3041D 8" x 24" ductile iron slotted grate is suitable for heavy load traffic applications. This Load Class F grate is designed to fit the 3000 Series by Trench Drain Systems™. Each heavy-duty grate weighs 35 lbs and comes in black paint as the standard.

Accepts (1) DA3042B Locking device which is sold separately.

Specification Sheet for DG3041D

Specification Sheet for DA3042B Locking Device
