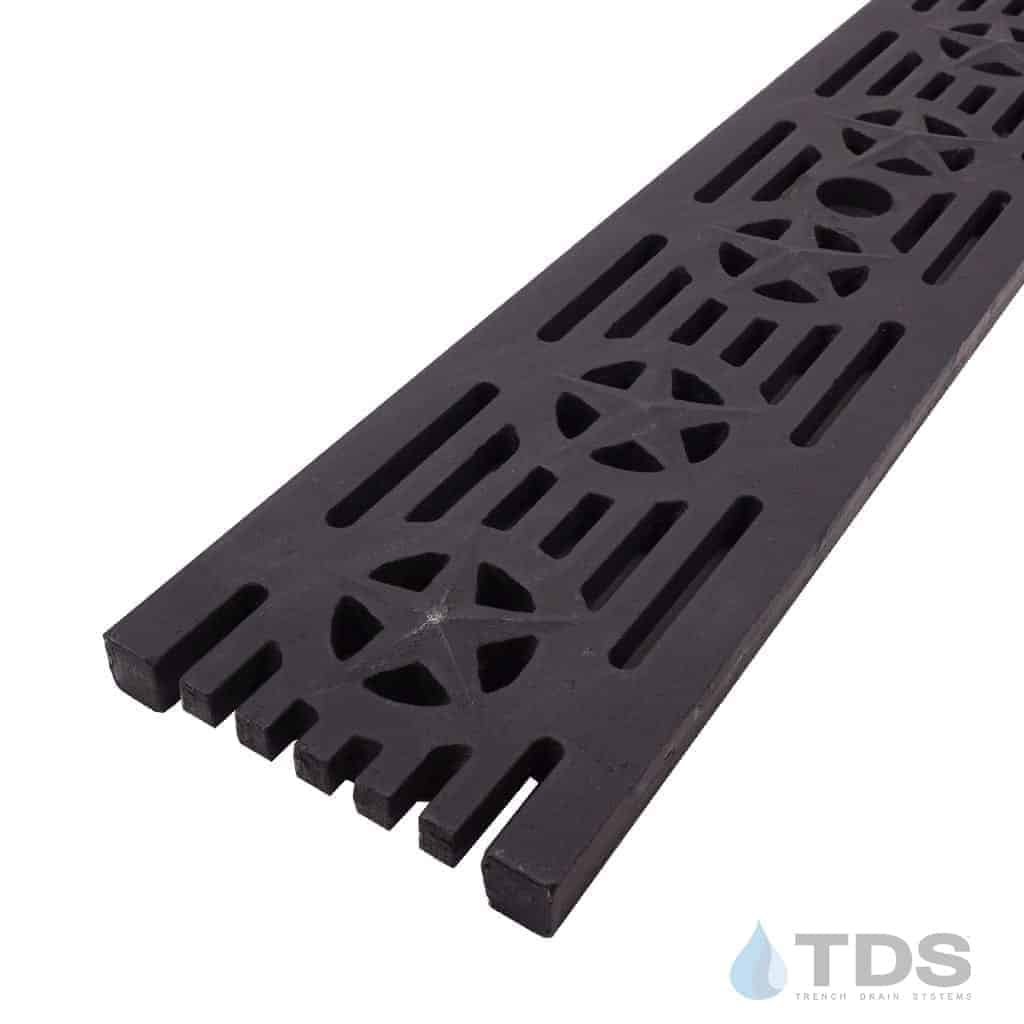

TDS DG0692 Class C ADA Compliant Patriot Ductile Iron 6" x 24" Grate - BLACK

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: Hubbell - POLYCAST and TDS (Trench Drain Systems)

System: POLYCAST 500, POLYCAST 600, and POLYCAST 700

Grate Load Class: Class C

Grate Pattern: PATRIOT

Grate Pattern Style: PATRIOTIC

Channel Material: Polymer Concrete - Polyester and Polymer Concrete - Vinyl Ester

Channel Frame / Edging: Frame - None, Edging - None, Edging - Galvanized, Edging - Stainless, Frame - Ductile Iron, and Frame - HDPE

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, Sports Complex - Recreational, and Transportation

Americana look for your POLYCAST® drainage system with this decorative grate.
Large project? Request a Quote

Decorative ductile Cast iron Patriot grate for the polymer concrete POLYCAST® 500, 600, and 700 Series trench drain systems by Hubbell and the SS600 Series Stainless drainage system. Now produced by Trench Drain Systems, the Patriot grate is ADA Compliant and Made in USA! Load Class C. Load Class D when mounted in POLYCAST® Hardnose frame. Painted black.

Suitable For:

• Fire Houses
• Veterans Memorials
• Government buildings
• City Courtyard / Streetscape
• Americana restaurant patio

Locking device not included - For POLYCAST 600 locking device, click here.

Specification Sheet
