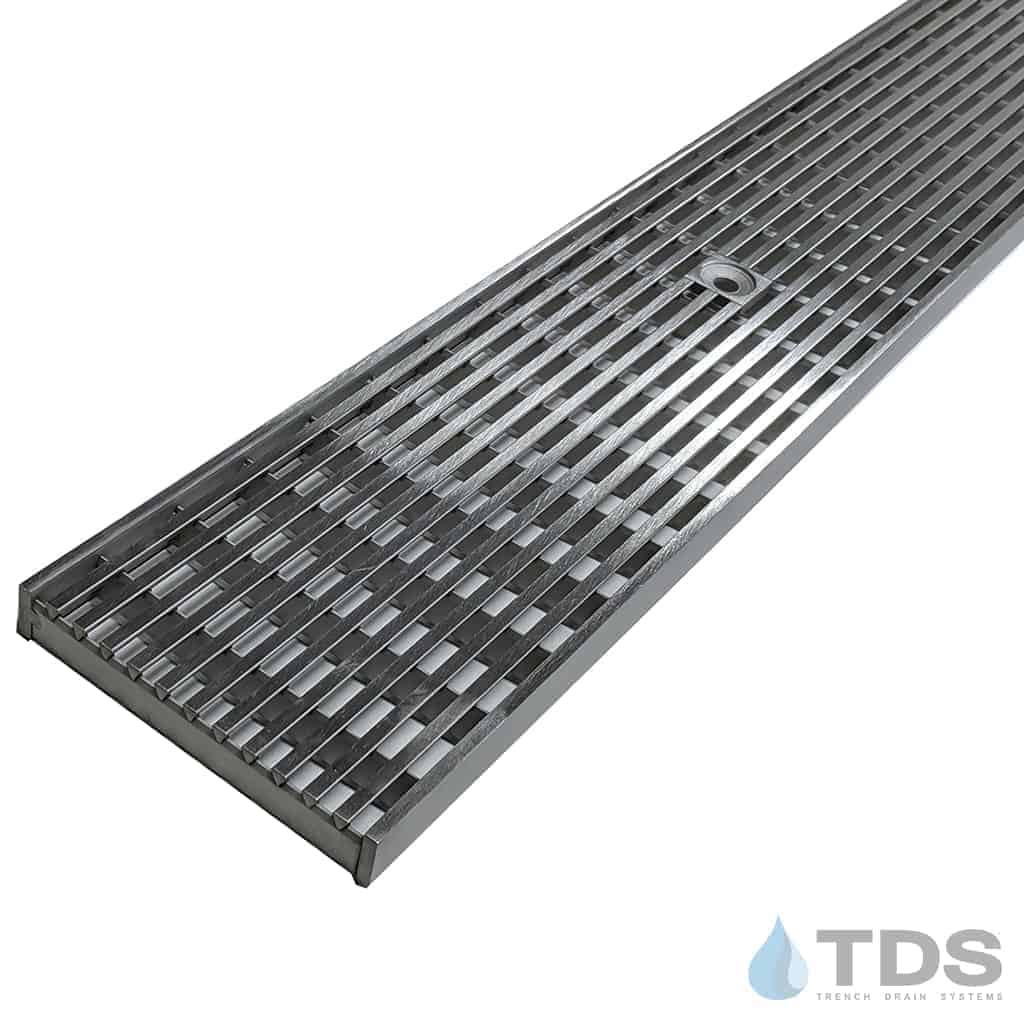

TDS DG0655H Class B ADA Compliant Wedge Wire Stainless Steel 6" x 24" Grate

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish: Stainless Steel 316L

Manufacturer: Hubbell - POLYCAST and TDS (Trench Drain Systems)

System: POLYCAST 500 and POLYCAST 600

Grate Load Class: Class B

Grate Pattern: WEDGE WIRE

Grate Pattern Style: INDUSTRIAL

Channel Material: Polymer Concrete - Polyester and Polymer Concrete - Vinyl Ester

Channel Frame / Edging: Frame - None, Edging - None, Edging - Galvanized, and Edging - Stainless

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

Large project? Request a Quote

This light-duty DG0655H Wedge Wire Stainless Steel Grate is a great replacement for any 6" grate!

This Wedge Wire Grate measures 5.12" width and length options of 24" and (DG0655H) 48" with a slot size of 0.25" dia.

Class B Load Requirements for Light Loads and is ADA compliant.

These grates are perfect for any low-traffic applications such as pedestrians, bicycles, and golf carts.

Locking devices not included - Click here to see compatible locking devices.

Spec Sheet: TDS DG0655 Wedge Wire Stainless Steel Grate | Class B
