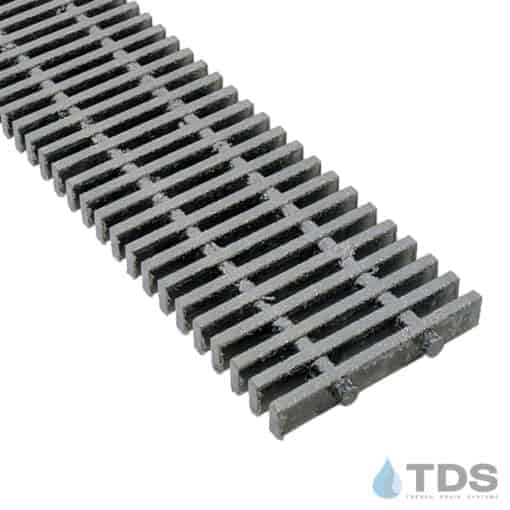

TDS 489 Vinyl-Ester Fiberglass Bar 122mm x 0.5M Bar Grate - 0.6" on center - Class C

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Fiberglass

Manufacturer: ULMA and TDS (Trench Drain Systems)

System: U100K, U100KX, HYDROPLUS, HYDROPLUS MINI, D100, M100V, M100K, and M100KX

Grate Load Class: Class C

Grate Pattern: BAR

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Frame - None, Edging - None, Edging - Galvanized, and Edging - Stainless

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

Fiberglass Reinforced Polyester Resin (FRP) Bar grate. Normally used in areas where extreme chemical resistance is needed. This grate has a non-slip grit surface.

Actual Dimensions: 0.75″ [20mm] x 4.80″ [122mm] x 19.68″ [500mm]

Large project? Request a Quote

Locking device sold separately:

• The LD100X-5 locking device is compatible with the ULMA U100, D100 and HYDROPLUS channel systems.
• The LD100X-5CB locking device is compatible with the ULMA AD100 & AK100 Catch Basins.

Designed to fit:

• • ULMA - HYDROPLUS
  • ULMA - U100 and M100
  • MEA-Josam - MEArin 100
  • MEA-Josam - MEA J1000
  • MultiDrain - Alfa Channel
  • J.R. Smith - Enviro-Flo

  • ABT - Polydrain

Want this grate in a longer length? CLICK HERE for the 1 meter option, item# 488 grate.
