TDS 488 Vinyl-Ester Fiberglass Bar 122mm x 1M Bar Grate - 0.6" on center - Class C

TDS 488 Vinyl-Ester Fiberglass Bar 122mm x 1M Bar Grate - 0.6" on center - Class C

  • 488_Vinylester FRP 0.6 in center 1M Grate
1 1

Drainage Kits

488

Actual Dimensions: 0.75" [20mm] x 4.80" [122mm] x 39.29" [998mm] Large project? Request a Quote
$270.86 USD
$0.00 USD $270.86 USD
Sale Sold out
View full details

Additional Information

  • Grate Width: 4.81"
  • Grate Thickness: 0.75"
  • Product Type: Channel Grate, Grate
  • Grate Material / Color / Finish: Fiberglass - Bar
  • Manufacturer: ULMA, TDS
  • System: U100K, U100KX, HYDROPLUS, HYDROPLUS Mini, D100, M100V, M100K, M100KX
  • Grate Load Class: C
  • Grate Pattern: Bar
  • Grate Pattern Style: Slotted
  • Channel Material: Polymer Concrete - Polyester
  • Frame/Edging: No Frame, No Edging, Galvanized, Stainless
  • Application: General Purpose Drainage - Interior, General Purpose Drainage - Exterior, Residential, Sport Complex - Recreational

Description

Actual Dimensions: 0.75″ [20mm] x 4.80″ [122mm] x 39.29″ [998mm]

Large project? Request a Quote

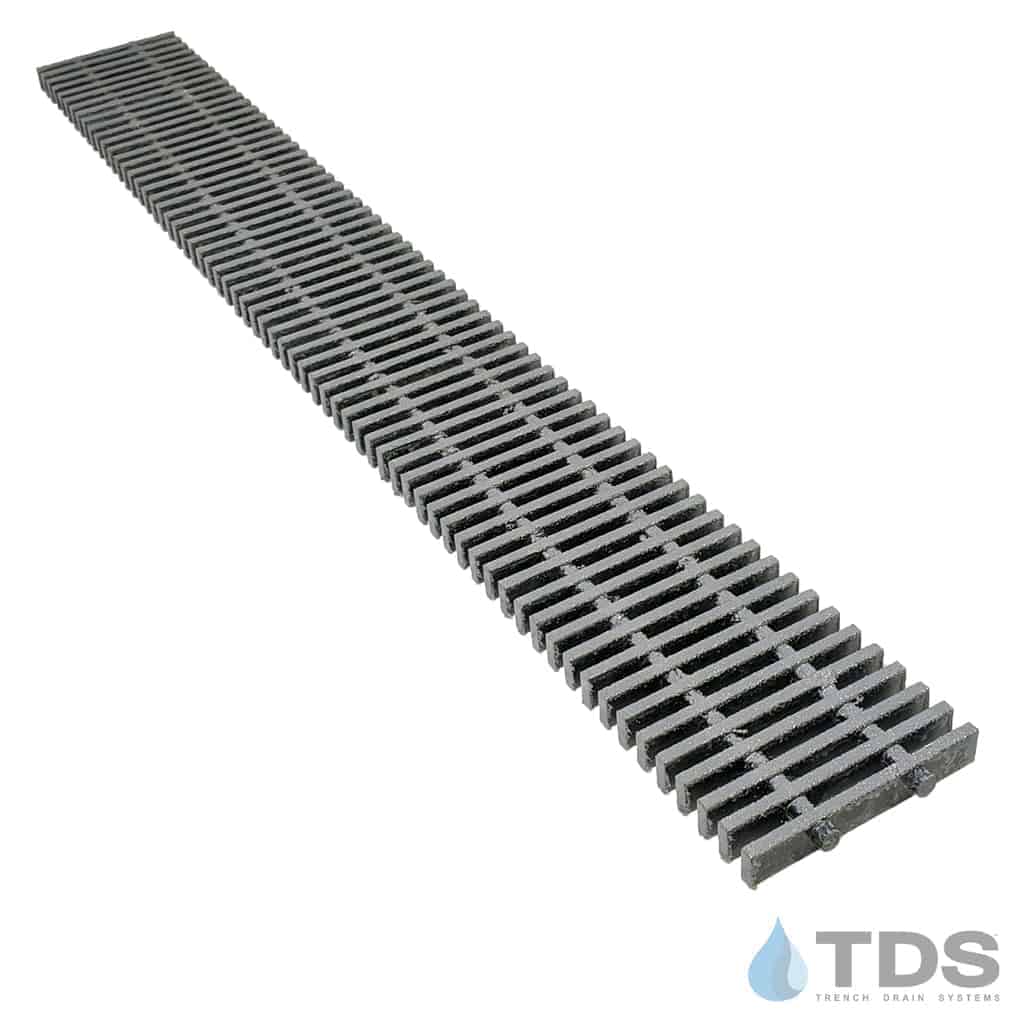

Fiberglass Reinforced Polyester Resin (FRP) Bar grate. Normally used in areas where extreme chemical resistance is needed. This grate has a non-slip grit surface.

Locking device sold separately:

488 fiberglass grate specifications

Designed to fit:

    • ULMA - HYDROPLUS
    • ULMA - U100 and M100
    • MEA-Josam - MEArin 100
    • MEA-Josam - MEA J1000
    • MultiDrain - Alfa Channel
    • J.R. Smith - Enviro-Flo
    • J.R. Smith - Smith/ACO K100S
    • ABT - Polydrain
