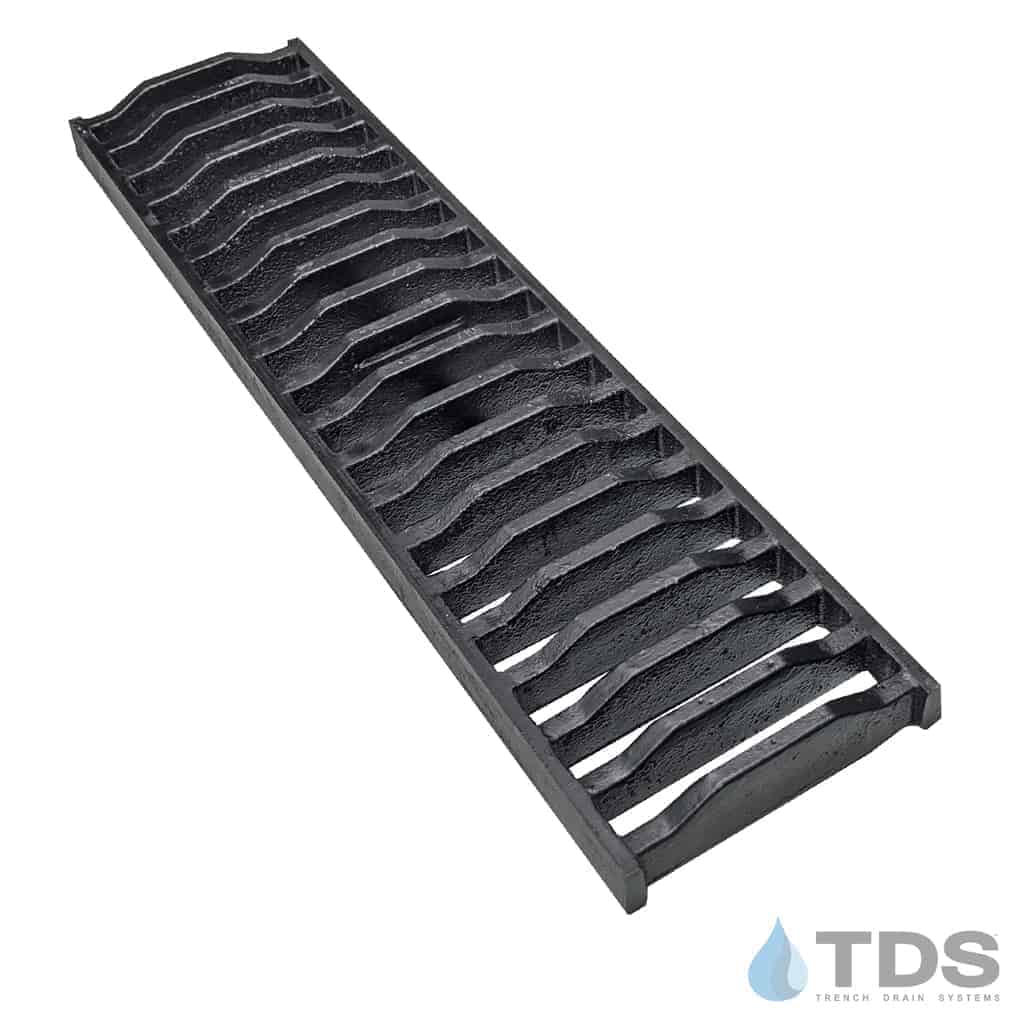

TDS 462G Class D Slotted Ductile Iron Grate

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: Hubbell - POLYCAST and TDS (Trench Drain Systems)

System: POLYCAST 500, POLYCAST 600, and POLYCAST 700

Grate Load Class: Class D

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester and Polymer Concrete - Vinyl Ester

Channel Frame / Edging: Frame - None, Edging - None, Edging - Galvanized, Edging - Stainless, Frame - Ductile Iron, and Frame - HDPE

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, Sports Complex - Recreational, and Transportation

Slotted Ductile Iron Grate Load Class D

Universal Ductile Iron Slotted (Class D) Gatic grate that works with 100 mm wide trench drain systems. This ductile iron slotted grate is ideal for replacing your metric trench drain system grates. The 462G grate is the perfect replacement for your now obsolete MEArin 152411 grate.

Grate measures 123mm x 0.5M Specification Sheet

Locking device sold separately.

• The LD100X-3 locking device is compatible with the ULMA U100, D100 and HYDROPLUS channel systems.
• The LD100MX-3 locking device is compatible with the ULMA M Series channel system.
• The LD100X-3CB locking device is compatible with the ULMA AD100 & AK100 Catch Basins.
• The 141460 locking device is compatible with the MEArin 100 channel.
• The 2811B locking device is compatible with the ABT Polydrain
