TDS 461D Class E Slotted Ductile Iron 122mm x 500mm Grate

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: ULMA and TDS (Trench Drain Systems)

System: U100K, U100KX, HYDROPLUS, HYDROPLUS MINI, D100, M100V, M100K, and M100KX

Grate Load Class: Class E

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Frame - None, Edging - None, Edging - Galvanized, and Edging - Stainless

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

Heavy Duty Ductile Iron Slotted Class E (122mm x 498 mm)

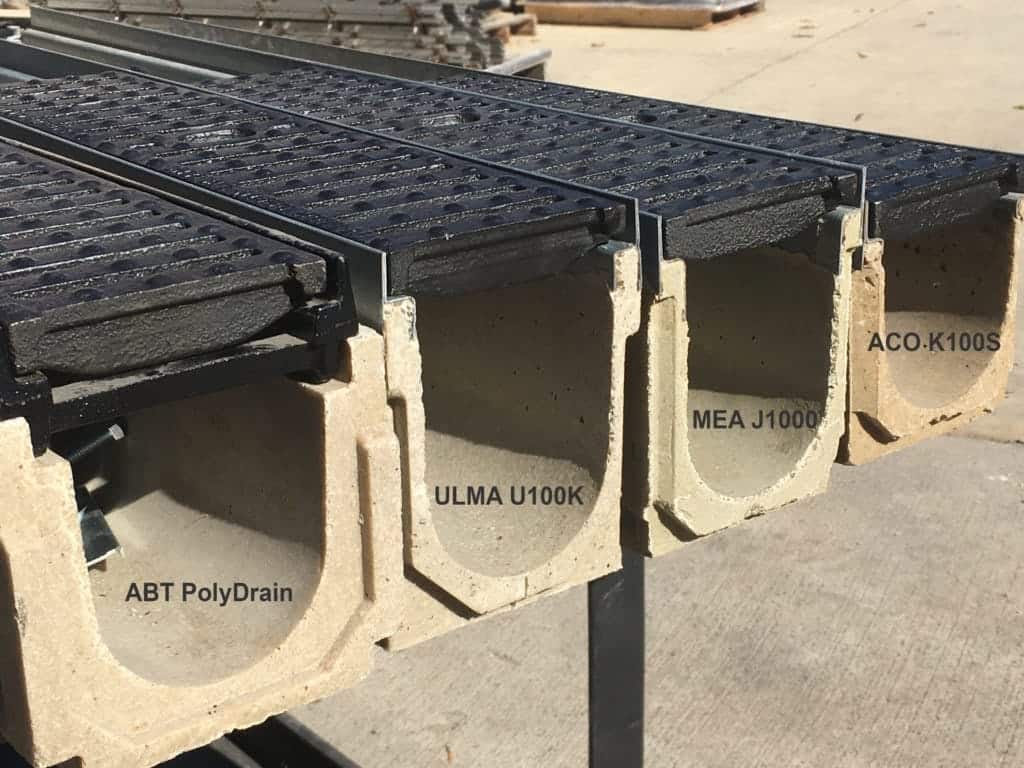

Universal Ductile Iron Slotted (Class E)  grate that works with 100 mm wide trench drain systems. If you need to replace a ductile iron slotted grate for your K100S, ABT PolyDrain, MEA J1000 or ULMA U100K trench drain system, look no further. TDS has introduced a universal trench grate that fits all these systems.

The 461D grate is the perfect replacement grate for the now obsolete MEArin 152411 slotted ductile iron grate.

This grate is 498mm long, 122mm wide, 19.05mm high and has a center hole for a bolt and toggle channel locking.  Thicker ribs under the cross bars enable this grate to handle traffic with a Class E load rating.  Each grate is coated with a black epoxy paint and weighs 13.2 lbs.

Locking devices sold separately.

• The LD100X-3 locking device is compatible with the ULMA U100, D100 and HYDROPLUS channel systems.
• The LD100MX-3 locking device is compatible with the ULMA M Series channel system.
• The LD100X-3CB locking device is compatible with the ULMA AD100 & AK100 Catch Basins.
• The 141460 locking device is compatible with the MEArin 100 channel.
• The 2811B locking device is compatible with the ABT Polydrain
