TDS™ 3" Sand MAX Mini w/ Interlaken BoOF Grate & Oil Rubbed Bronze Edge
TDS™ 3" Sand MAX Mini w/ Interlaken BoOF Grate & Oil Rubbed Bronze Edge
PRODUCT DOCUMENTATION
-
DESCRIPTION
Kits Include:
Pre-assembled sections which include grates, edging, couplers, end caps, and end outlets.

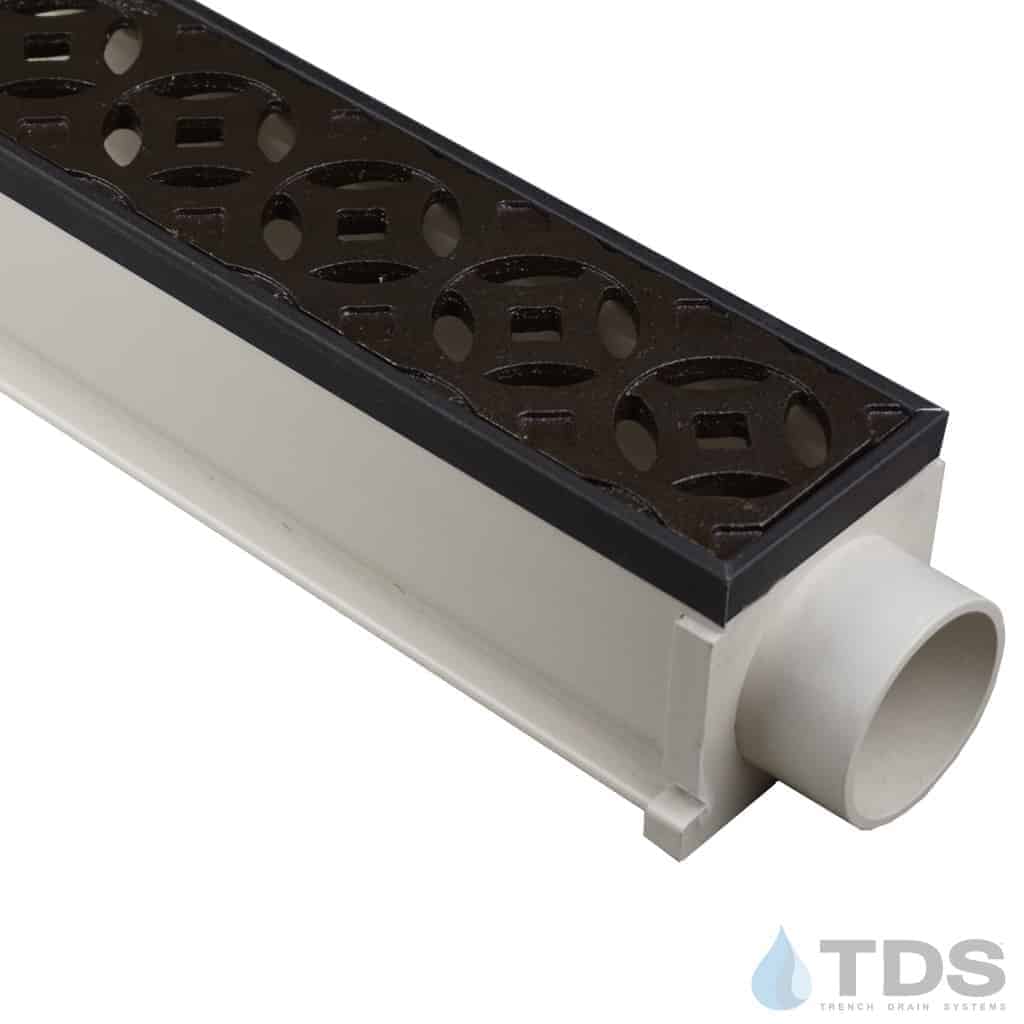

The TDS MAX Mini™ is an enhanced 3" NDS® Mini Channel system that features custom edging and cast iron grates with the BoOF (Baked on Oil Finish) process. Grates are excellent for light-duty applications including patios and tennis courts. Load Class A or B rating if properly installed, see specification sheet for details.
Kits Include:
Pre-assembled sections that include grates, custom edging, couplers, end caps, and end outlets
- Durable and lightweight polyolefin parts
- Connects easily to sewer drain for Sch. 40 pipe and fittings
- A flanged bottom provides straight installation and prevents floating
- Pre-assembled sections include edging and any endcaps, couplers, and outlets
- End outlet fits Sch. 40 2" pipe
- Easy installation
Interlaken grates are 11″ long. Systems with this grate will be slightly shorter in length to accommodate the difference. Actual installed kit lengths are listed below
- 3 ft kit (actual kit length 2′ 8″)
- 6 ft kit (actual kit length 5′ 5″)
- 12 ft kit (actual kit length 11′-0")
- 18 ft kit (actual kit length 15′ 5″)
- 24 ft kit (actual kit length 23'5")
BoOF finish may incur a processing delay (approx. 2 weeks) if not in stock.
IMPORTANT NOTE: Each MAX Mini system is custom-made to your requirements and cannot be returned. However, prior to production, you will be sent a drawing for final approval. Not available for overnight shipping.
