TDS® 3" Sand Max Mini w/ Bronze Age™ Luna Grate - BoOF & Oil Rubbed Bronze Edge

Grate Width: 2.75" for NDS Mini Channel

Grate Thickness: 0.38"

Grate Material / Color / Finish: Ductile/Cast Iron - Baked on Oil Finish

Manufacturer: TDS (Trench Drain Systems)

System: MAX Mini

Grate Load Class: Class A and Class B

Grate Pattern: BOTANICAL

Grate Pattern Style: NATURE

Channel Material: Plastic - (PP, HDPE, PE) - Sand

Channel Frame / Edging: Edging - Bronze

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

Large Project? Request Quote.

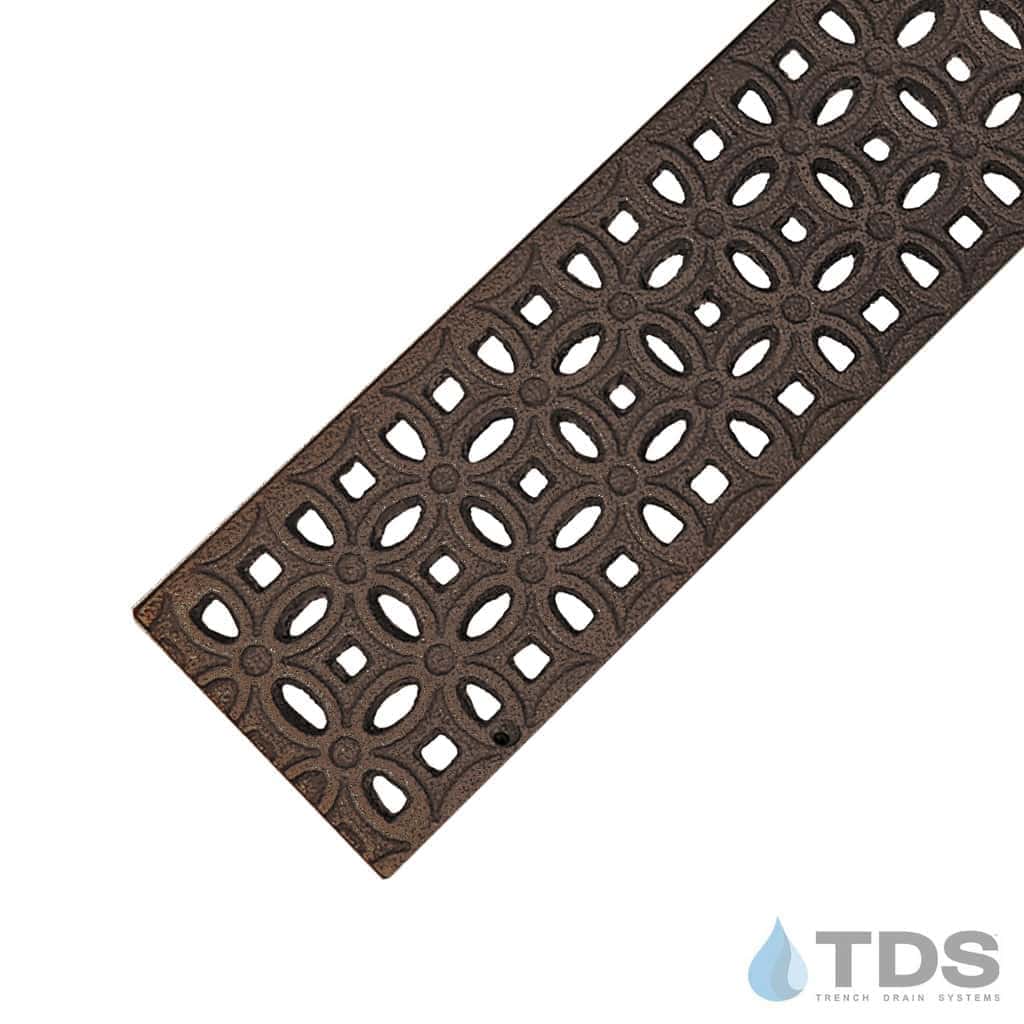

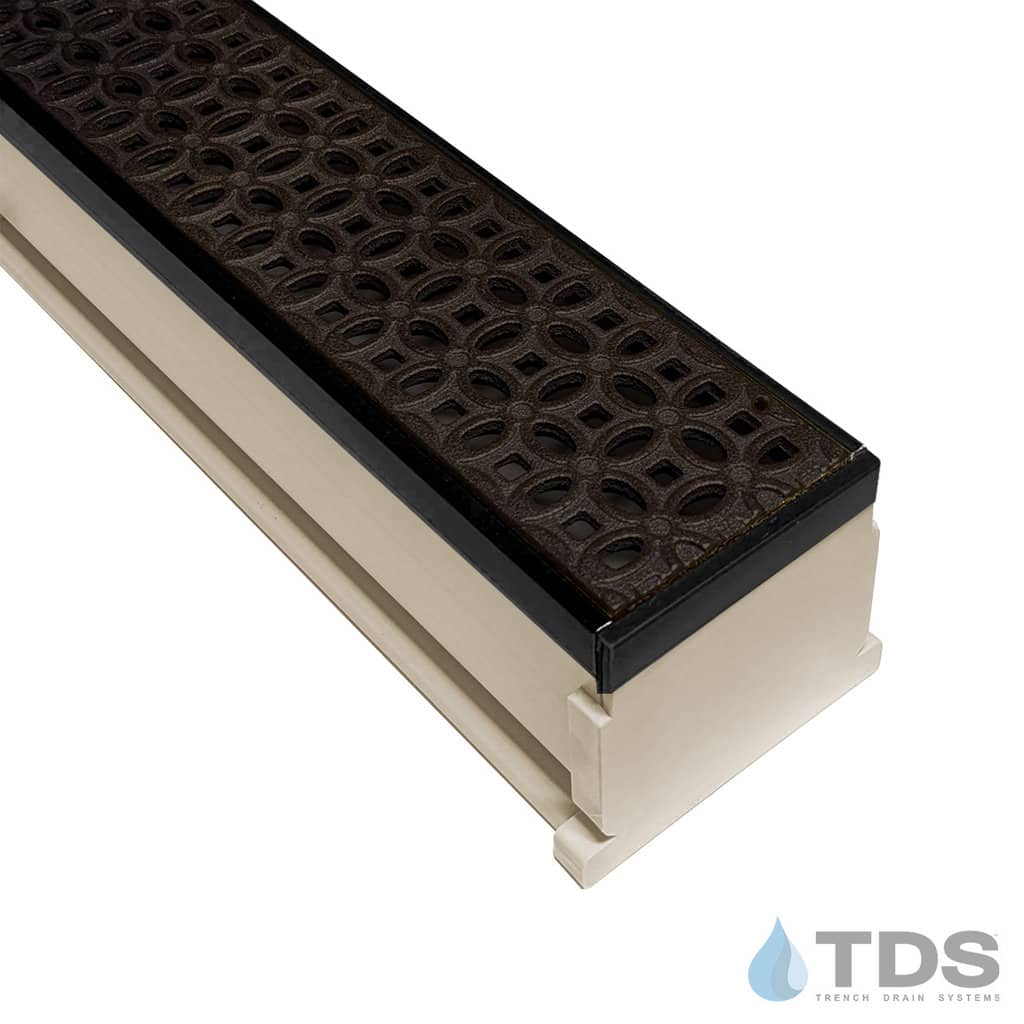

The TDS Max Mini™ is an enhanced NDS® Sand Mini Channel system that features oil-rubbed bronze edging and cast iron grates in the exclusive Luna pattern. Max Mini™ is a linear, non-sloped system built for light traffic applications such as patios and walkways. The channel is UV-protected and manufactured from durable lightweight polyolefin plastic. This kit includes the heelproof and ADA-compliant TDS Bronze Age™ cast iron grate in the Luna pattern with a BoOF (Baked-on Oil Finish).

Available online in pre-assembled 6, 12, 18, and 24-foot kits; custom system lengths are available. Request a Quote.

This system has a Load Class rating of A or B  if properly installed; see the specification sheet for details.

Specification Sheet for Max Mini™

Installation Guide

Each pre-assembled kit includes:

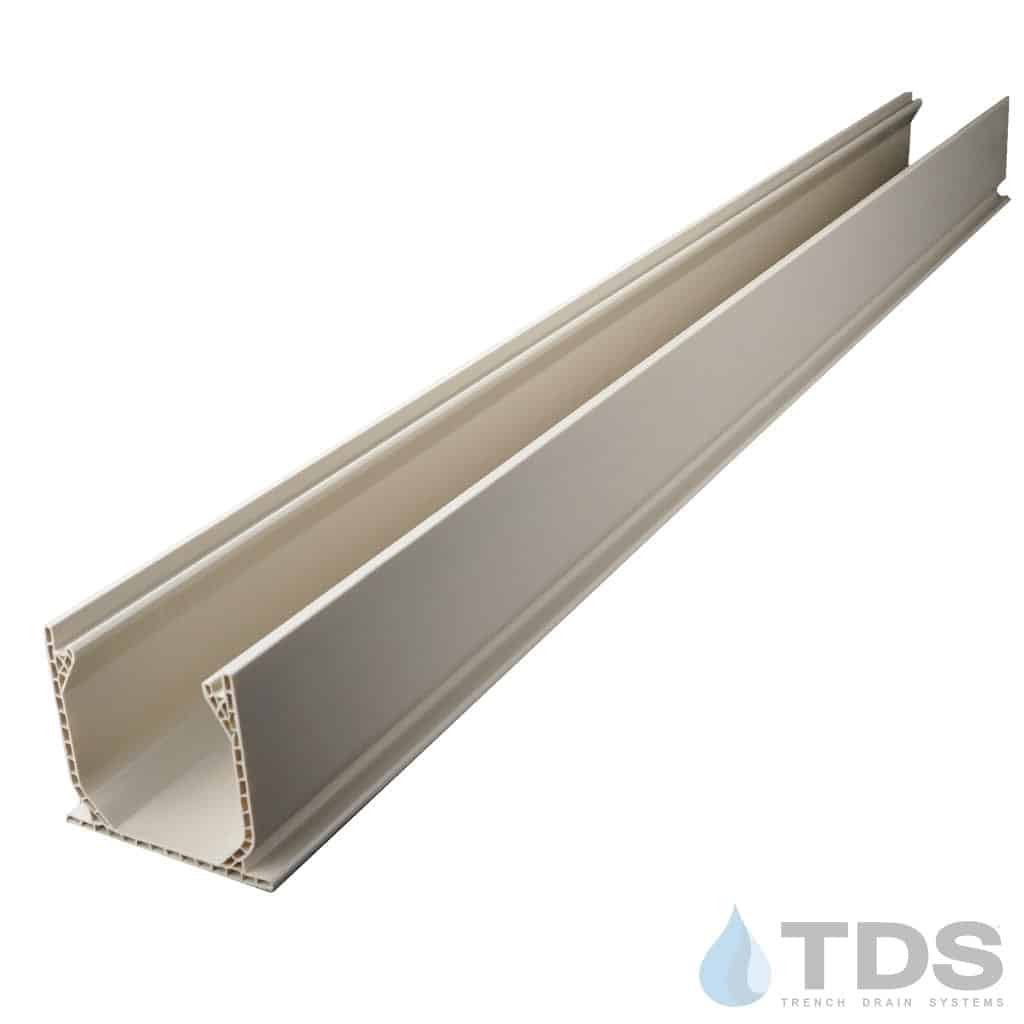

• Channels
• Oil Rubbed Bronze edging

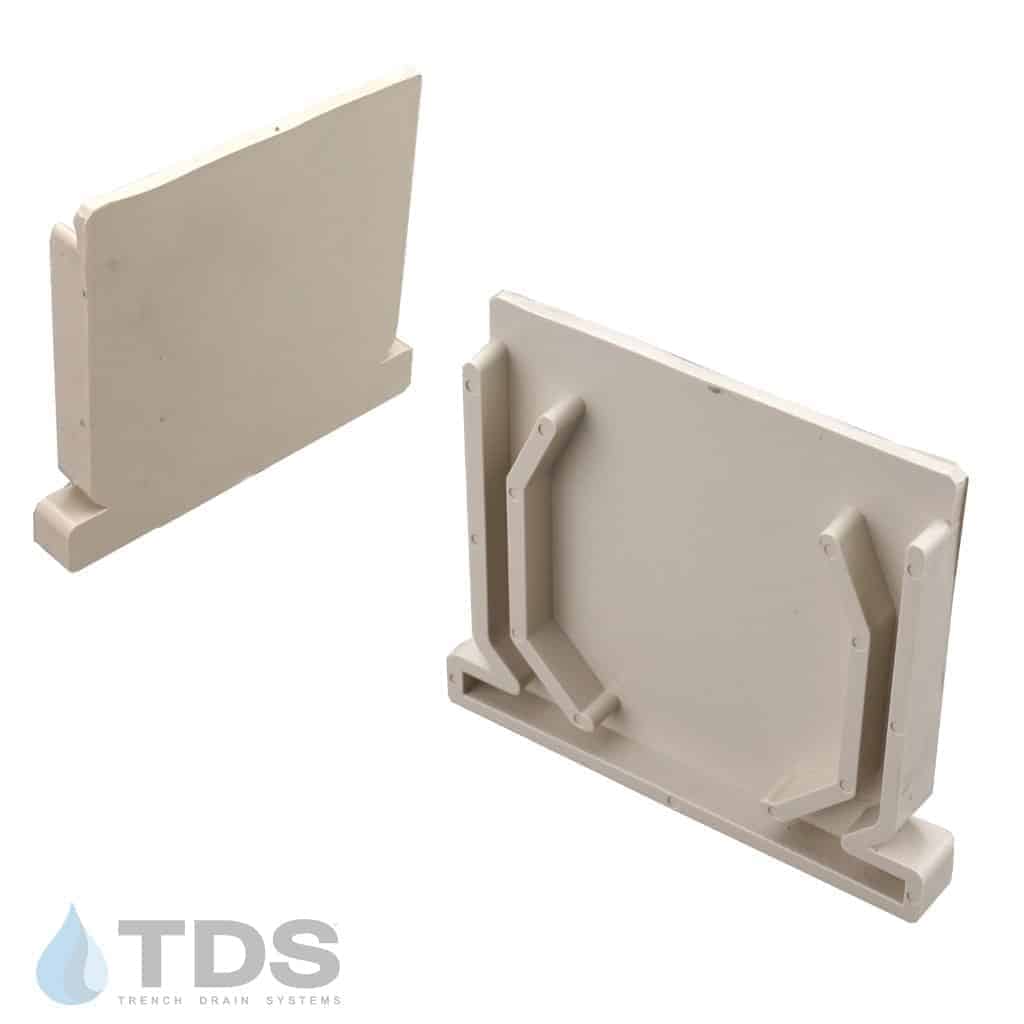

• One End Cap

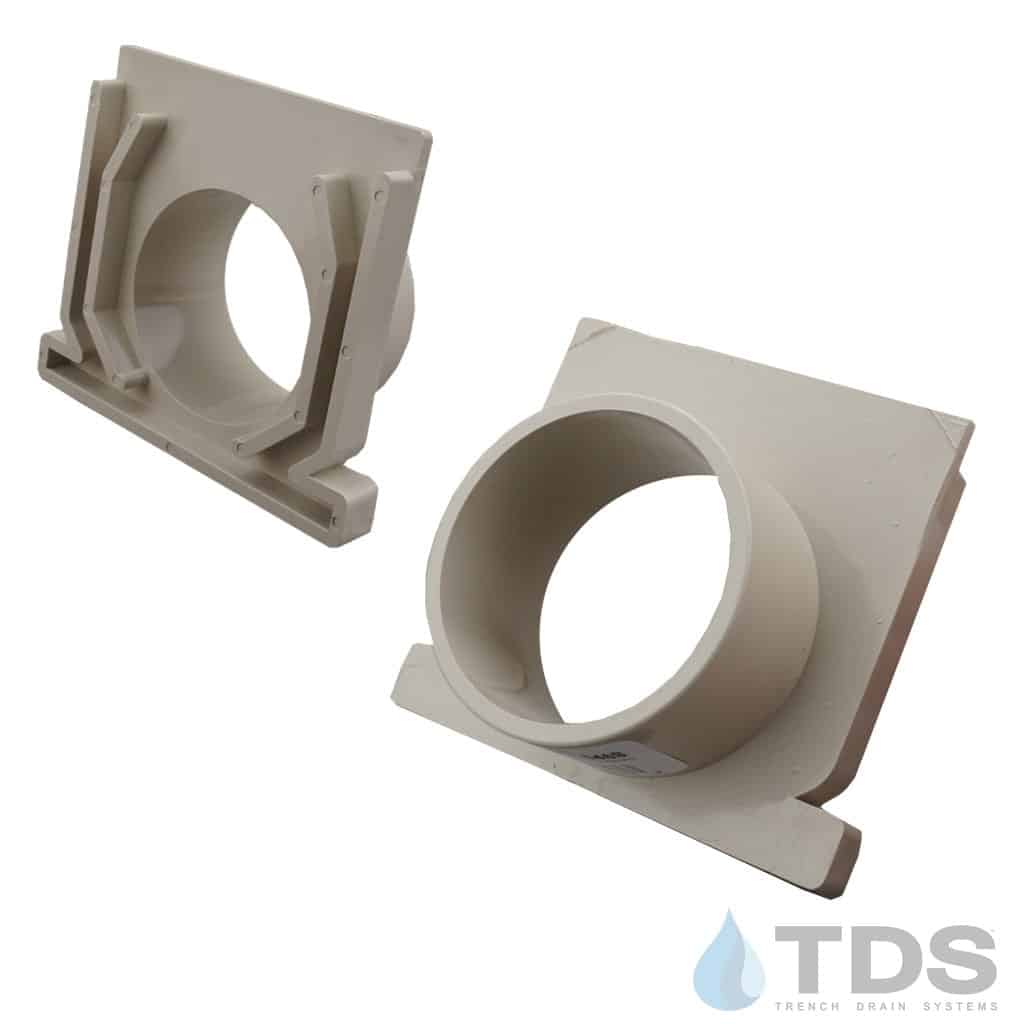

• One Outlet (compatible with SCH 40 pipe)
• Couplers (1 for each joint)
• Grates
• Hold Down Screws

IMPORTANT NOTE: Each MAX Mini system is custom-made to your requirements and cannot be returned. However, before production, you will be sent a drawing for final approval.

Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown. With the Baked-on Oil Finish, the grates will still minutely rust, but not to the same extreme as a raw cast iron grate.

Please allow an additional 2 weeks for delivery of BoOF products.
