TDS™ 3" MAX Mini w/ Iron Age Que BoOF Grates - Sand Channel

TDS™ 3" MAX Mini w/ Iron Age Que BoOF Grates - Sand Channel

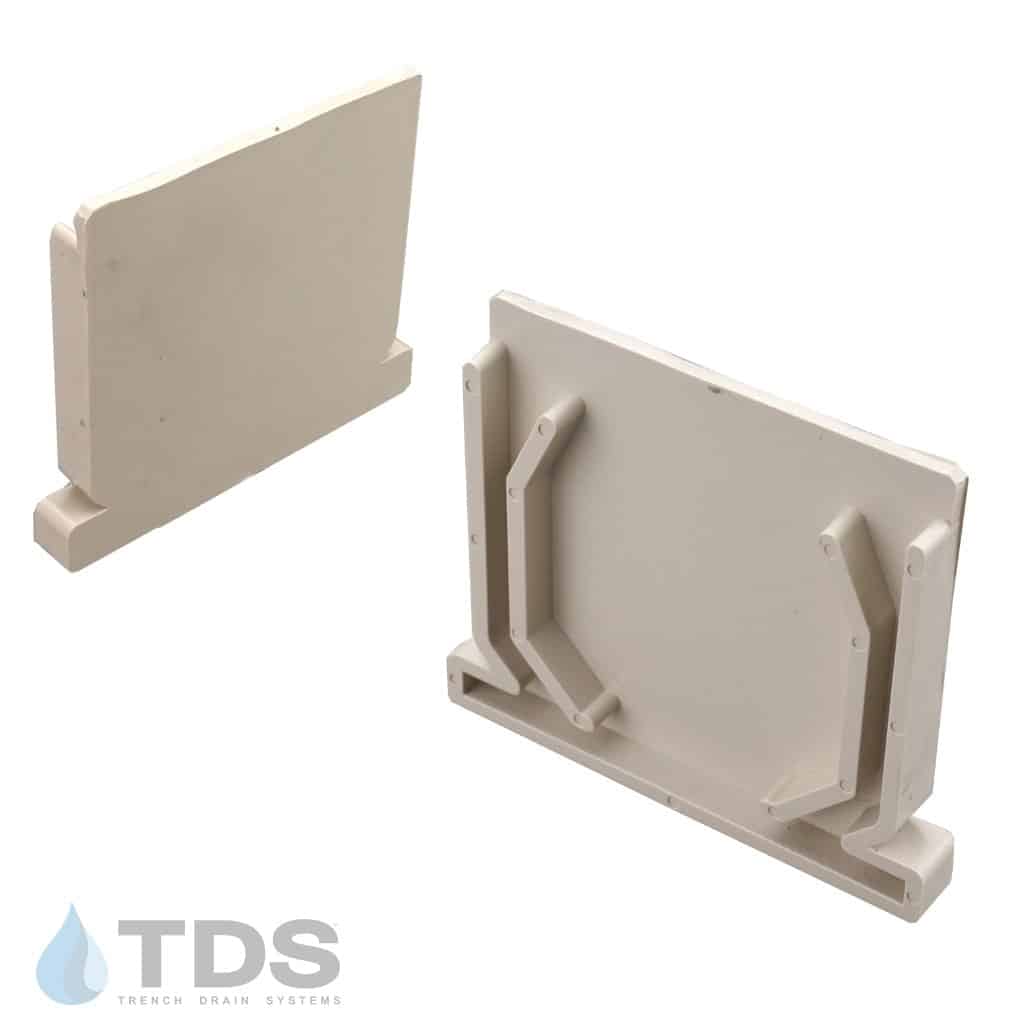

  • NDS 3" Sand Mini Channel End Caps MCKS-547-TDSdrains
  • 3" NDS Sand Mini Channel Coupler MCKS-548-TDSdrains

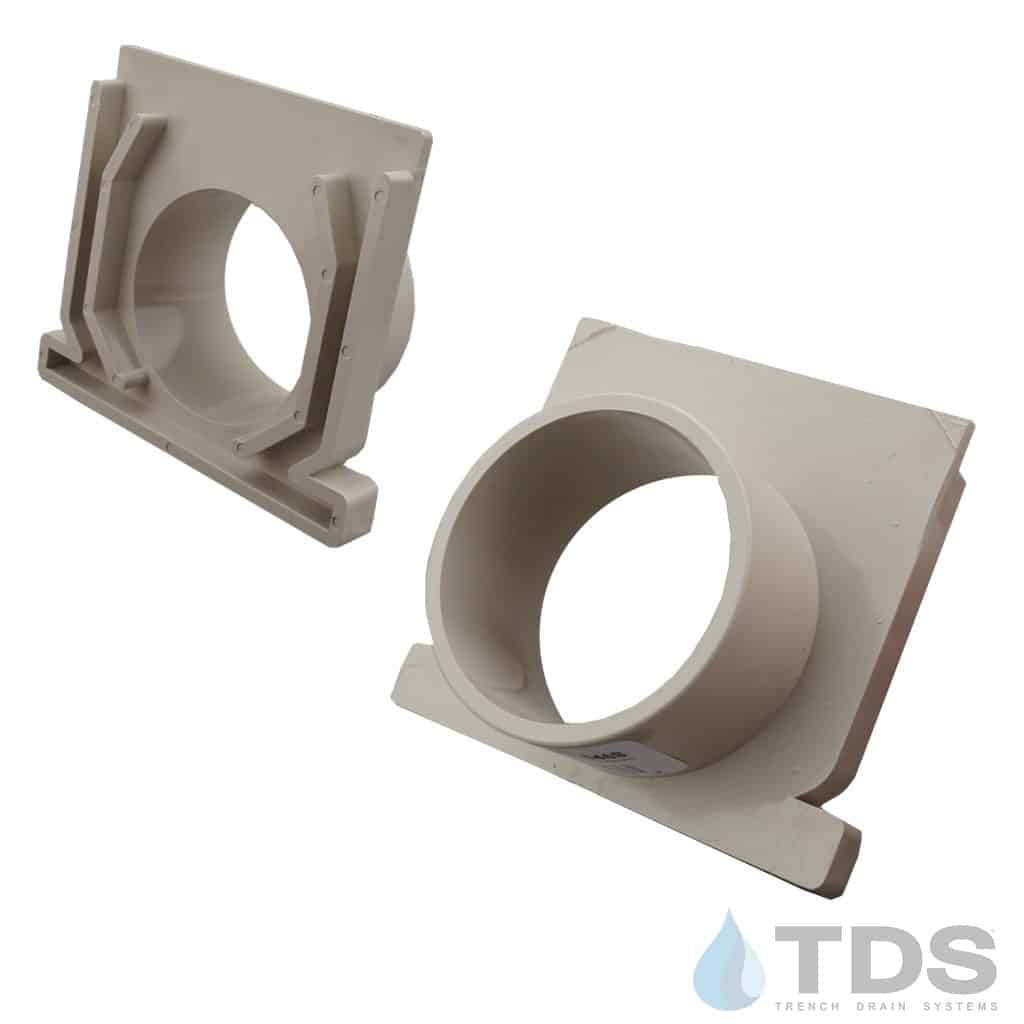

  • 3" NDS Sand Mini Channel End Outlet MCKS-546-TDSdrains

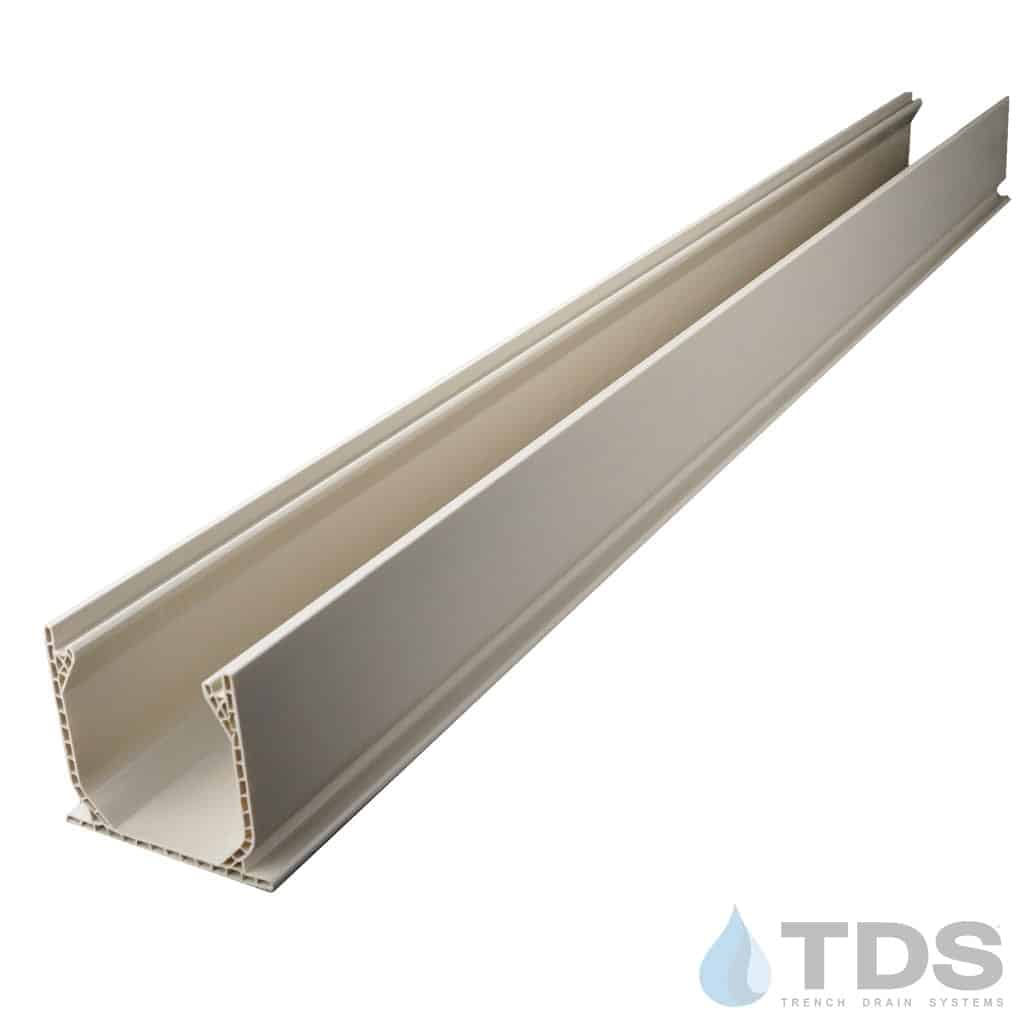

  • TDS500S-TDSdrains

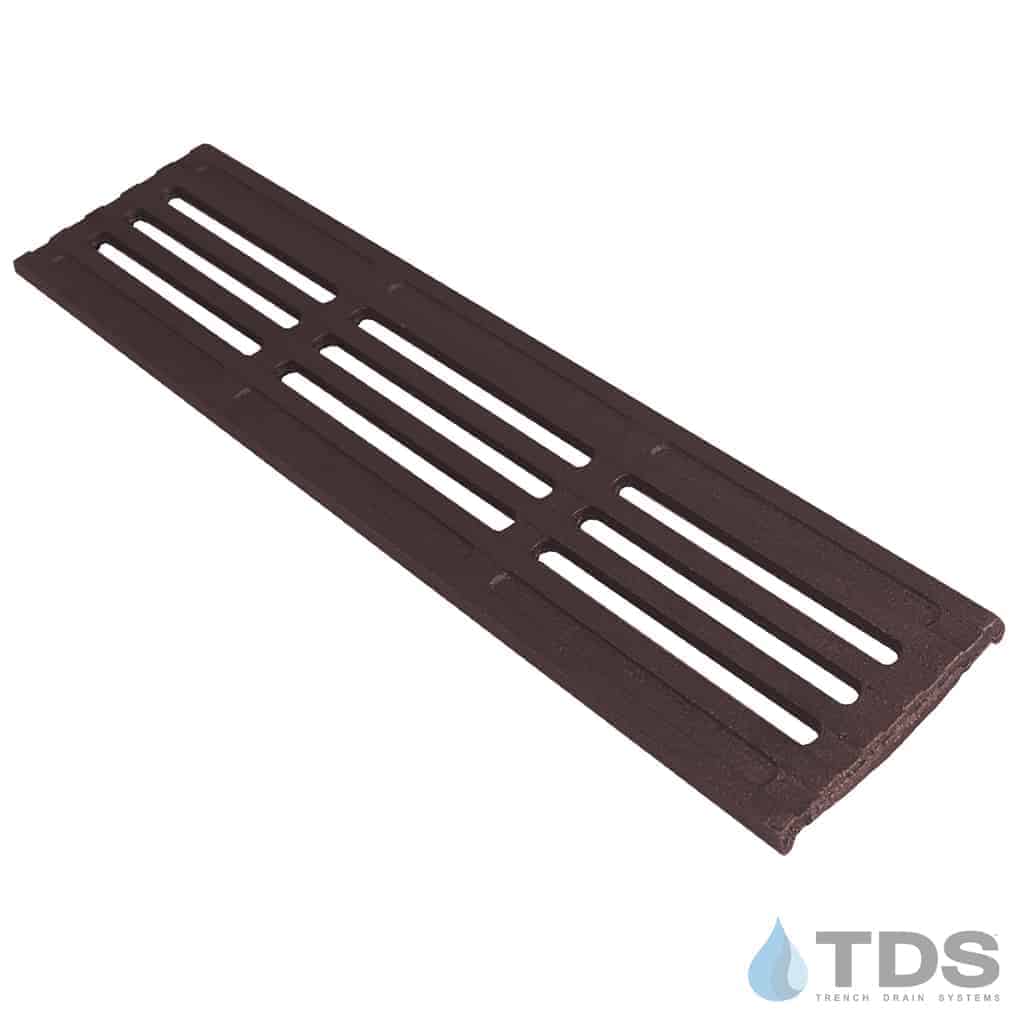

  • IA-QUE-3x12 BOOF Iron Age Cast Iron for Mini Channel
  • Made in America
1 7

Drainage Kits

MMS-BF-IA-QUE-03

MAX Mini Que BoOF (Baked on Oil Finish) Grate Includes: Pre-assembled sections include edging and any endcaps, couplers and end outlets
$1,066.72 USD
$1,066.72 USD
Sale Sold out
View full details

  • ADDITIONAL INFORMATION

    Grate Width:

    Grate Thickness:

    Grate Material / Color / Finish: Ductile/Cast Iron - Baked on Oil Finish

    Manufacturer: TDS (Trench Drain Systems) and Iron Age Designs

    System: MAX Mini

    Grate Load Class:

    Grate Pattern: QUE

    Grate Pattern Style: SLOTTED

    Channel Material: Plastic - (PP, HDPE, PE) - Sand

    Channel Frame / Edging: Edging - Bronze

    Application:

  • DESCRIPTION

    MAX Mini Que BoOF (Baked on Oil Finish) Grate

    Includes:

    Pre-assembled sections include edging and any endcaps, couplers and end outlets

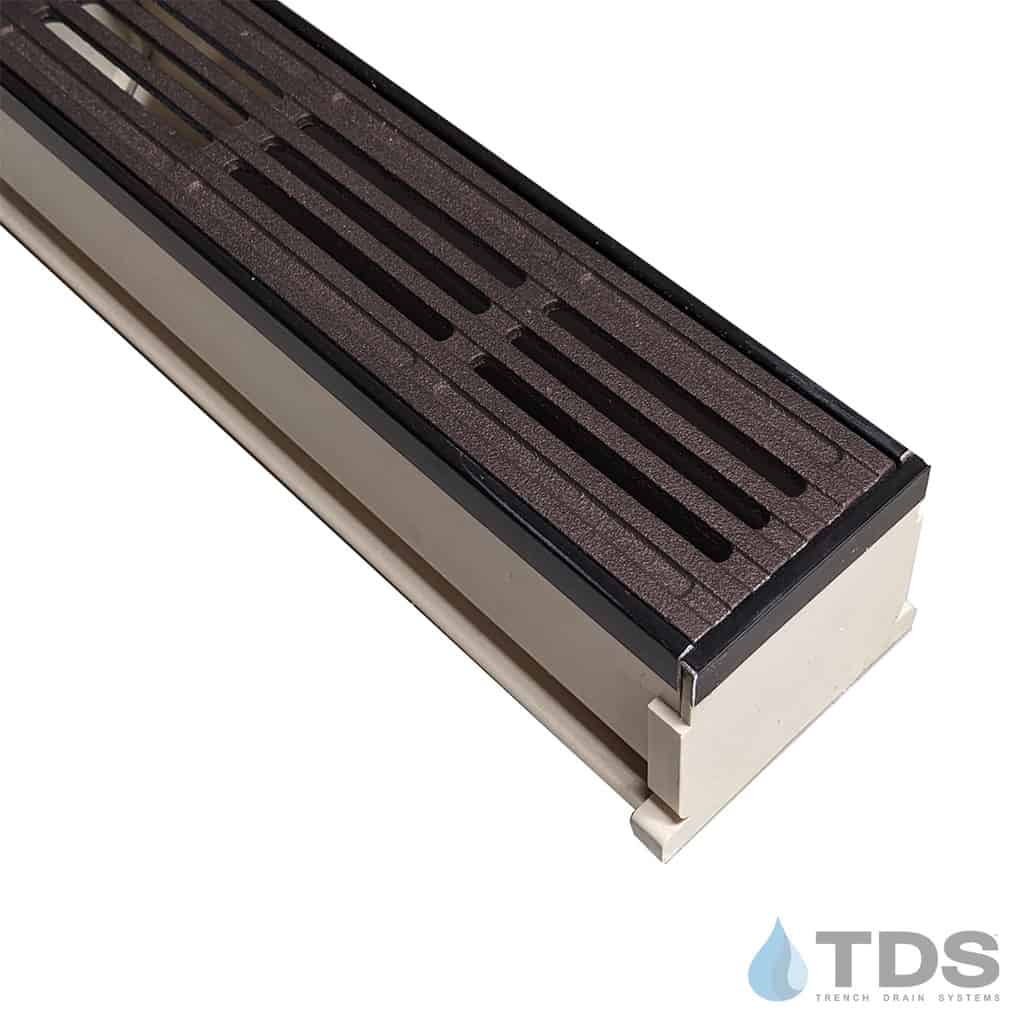

    The MAX Mini is an enhanced Mini Channel system that features oil rubbed bronze edging and cast iron grates in the Que pattern with the BoOF (Baked on Oil Finish) process.

    Excellent for light-duty applications including residential pools, concrete and paver patios, spas and tennis courts.

    • Durable and lightweight polyolefin parts
    • Connects easily to sewer drain for Sch. 40 pipe and fittings
    • Flanged bottom provides straight installation and prevents floating
    • Pre-assembled sections include edging and any endcaps, couplers and end outlets
    • End outlet fits Sch. 40 2" pipe
    • Easy installation

    IMPORTANT NOTE: Each MAX Mini system is custom made to your requirements and cannot be returned. However, prior to production you will be sent a drawing for final approval.

    BoOF finish may incur a processing delay (approx. 2 weeks) if not in stock.

    Que grates are 11″ long. Systems with this grate will be slightly shorter in length to accommodate the difference. Actual installed kit lengths are listed below:

    • 3 ft kit (actual kit length 2′ 8″)
    • 6 ft kit (actual kit length 5′ 5″)
    • 12 ft kit (actual kit length 11′-0″)
    • 18 ft kit (actual kit length 15′ 5″)
    • 24 ft kit (actual kit length 23’5″)
