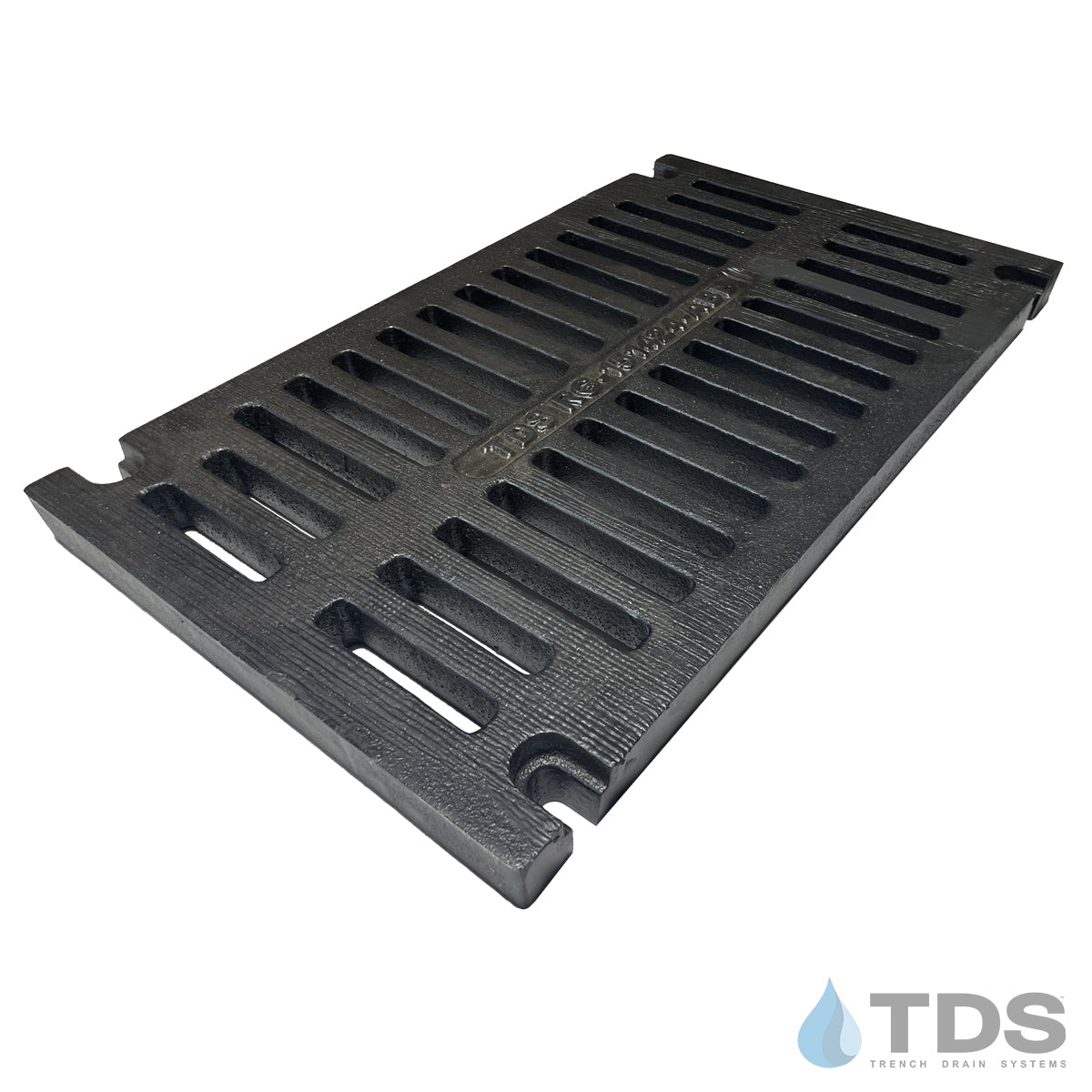

The RG-151424-ABB heavy-duty bolted ductile iron grate measures 14" x 24" x 1.5" and includes a flat-bottomed edge. Each grate weighs approximately 71 lbs, has built-in bolt cutouts, and is designed to fit a variety of applications where a more robust grate is needed. (Bolts not Included)
Load Class D (89,920 lbs per foot (400 kN) rolling traffic)

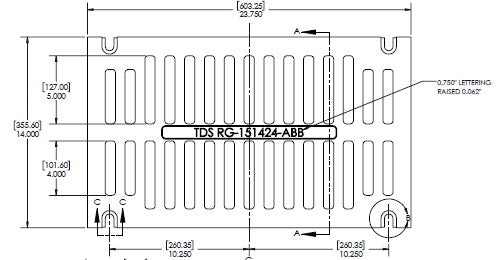

Actual Dimensions : 14-1/8" x 23-7/8" x 1.5"
An alternative to Neenah R-4999-DX
Large project? Request a Quote
Looking to create a DIY trench drain system with these grates? We have a variety of rails/frames to make the build easier.
NOTE: Due to the weight of this product, expect higher than normal shipping costs. Contact Customer service to explore possible alternatives (ground vs. freight).
All ductile iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to a dark brown.
