RG-151424-AB Heavy Duty Ductile Iron Slotted 14" x 24" x 1.5" Grate | TDS

Grate Width: 14.00"

Grate Thickness: 1.50"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: TDS (Trench Drain Systems)

System: Foundry

Grate Load Class: Class D

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Form Your Own OR Site Built

Channel Frame / Edging: Frame - Ductile Iron

Application: Transportation, General Purpose Drainage - External, and General Purpose Drainage - Interior

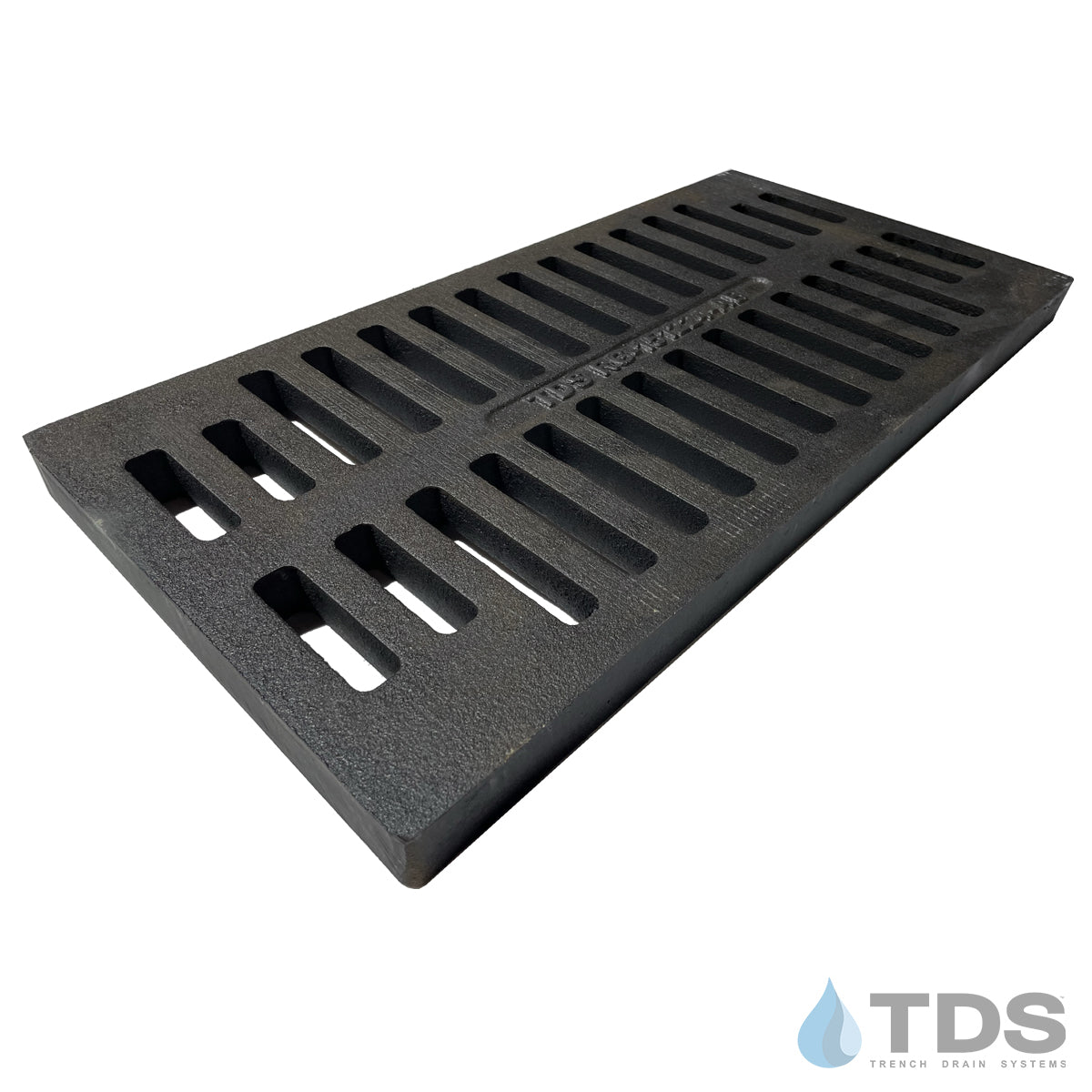

TDS Foundry RG-151424-AB heavy-duty ductile iron grate measures 14" x 24" x 1.5" and includes a flat-bottomed edge. Each grate weighs approximately 72 lbs and is designed to fit a variety of applications where a more robust grate is needed.

NOTE: Due to the weight of this product, expect higher than normal shipping costs.

Load Class D = 89,920 lbs per foot (400 kN) rolling traffic

An alternative to Neenah R-4990-DX

Actual Dimensions : 14-1/8" x 23-7/8" x 1.5"

Large project? Request a Quote

Looking to create a DIY trench drain system with these grates? We have a variety of rails/frames to make the build easier.

All ductile iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to a dark brown.
