RG-151224-AB Heavy Duty Ductile Iron Slotted 12″ x 24″ x 1.5″ Grate | TDS

Grate Width: 12.00"

Grate Thickness: 1.50"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: TDS (Trench Drain Systems)

System: Foundry

Grate Load Class: Class D

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Form Your Own OR Site Built

Channel Frame / Edging: Frame - Ductile Iron

Application: Transportation, General Purpose Drainage - External, and General Purpose Drainage - Interior

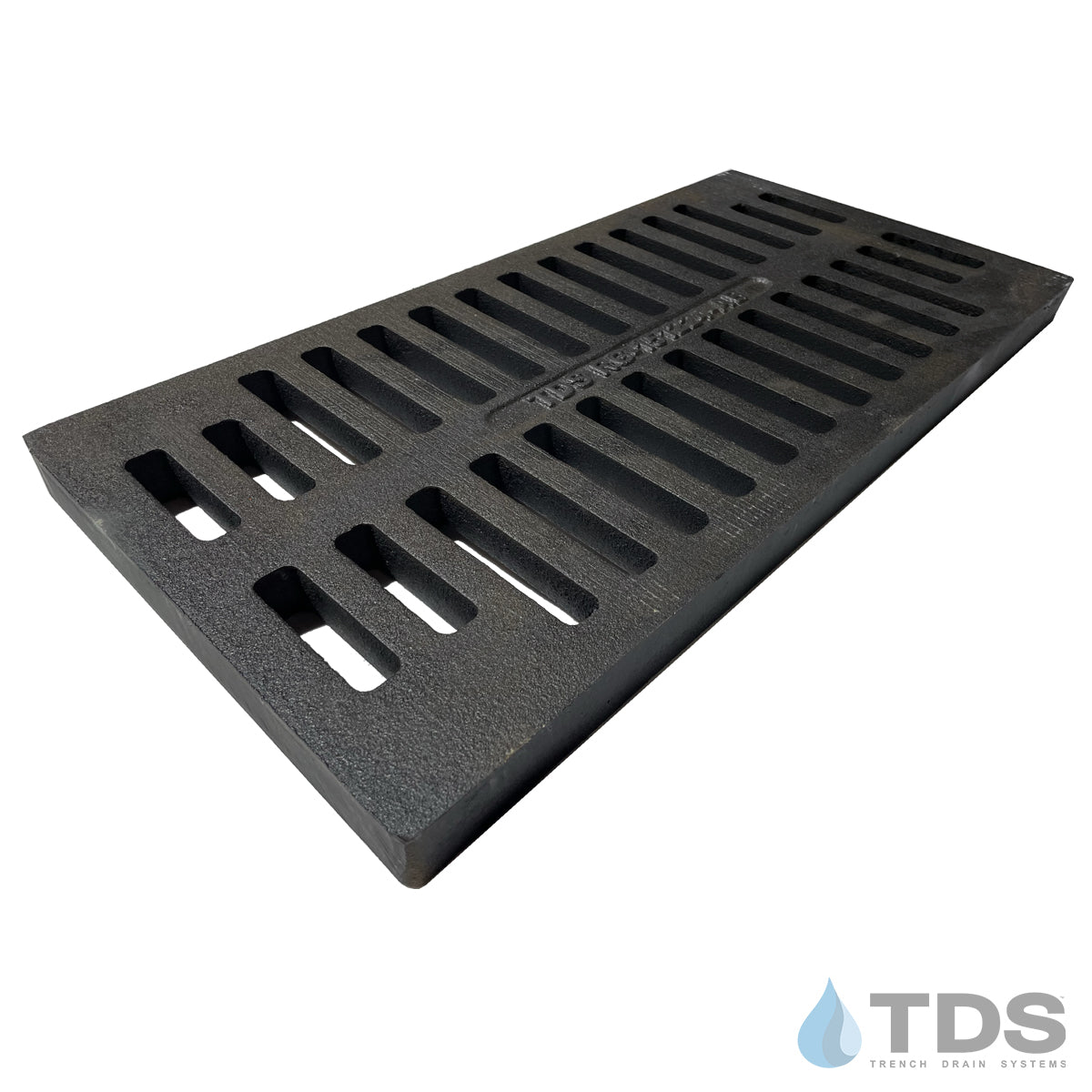

TDS Foundry RG-151224-AB heavy-duty ductile iron grate that measures 12″ x 24″ x 1.5″ and includes a flat-bottomed edge. Each grate weighs approximately 55 lbs and is designed to fit a variety of applications where a more robust grate is needed.

Note: Due to the weight of this product, expect higher-than-normal shipping costs.

An alternative to Neenah R-4990-CX

Load Class D (89,920 lbs per foot (400 kN) rolling traffic)

Actual Dimensions : 11-7/8″ x 23-3/4″ x 1.5″

Large project? Request a Quote

Looking to create a DIY trench drain system with these grates? We have a variety of rails/frames to make the build easier.

All ductile iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to a dark brown.
