Regular Joe Iron Age Grates on U100KX ULMA Heelproof - BoOF

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Baked on Oil Finish

Manufacturer: ULMA and Iron Age Designs

System: U100KX

Grate Load Class: Class B

Grate Pattern: REGULAR JOE

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Stainless

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

Each Kit Includes :

• Channel(s)
• Grate(s)
• Installation chair(s)
• Locking device(s)
• End Cap (not included with half channel)
• End Outlet (not included with half channel)

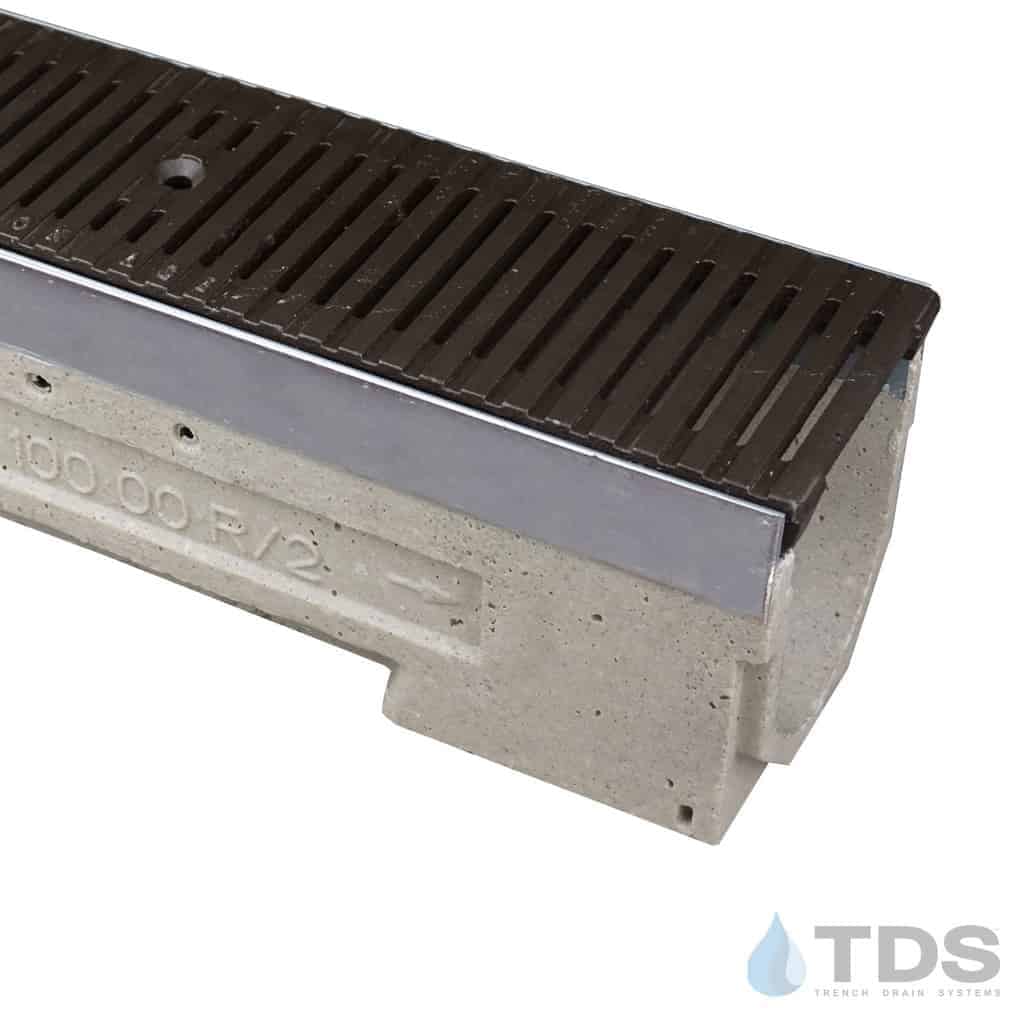

This Pre-sloped Polymer Concrete trench drain kits use the ULMA Type U100KX channel with integral stainless steel edging. It has an external width of 130 mm, an internal width of 100 mm, and is available in overall heights ranging between 130 mm and 280 mm. Channels are 1 meter in length and have a 0.5% slope. The locking system consists of locking bar CS100 and hex head screws.  Installation hardware is included.

ULMA's U100KX channel fits Iron Age Designs decorative cast iron trench grating measuring 122 mm x 498 mm.  This kit has the Heel Proof Regular Joe pattern, which is available in either the raw casting or Baked on Oil Finish (BoOF).

Each Kit Includes :

• Channel(s)
• Grate(s)
• Installation chair(s)
• Locking device(s)
• End Cap (not included with half channel)
• End Outlet (not included with half channel)

Please allow an additional 2 weeks for delivery of BoOF products.

What is Baked On Oil Finish (BooF)? Click Here to learn more.
