POLYCAST®DP0650 Inline Catch Basin-Polymer Concrete

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish:

Manufacturer: Hubbell - POLYCAST

System: POLYCAST 500, POLYCAST 600, POLYCAST 700, and POLYCAST 900

Grate Load Class:

Grate Pattern:

Grate Pattern Style:

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Frame - None, Edging - None, Edging - Galvanized, Edging - Stainless, Frame - Ductile Iron, and Frame - HDPE

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, Sports Complex - Recreational, and Transportation

Deep Catch Basin

6.25″W x 24″L x 24″H

Large project? Request a Quote

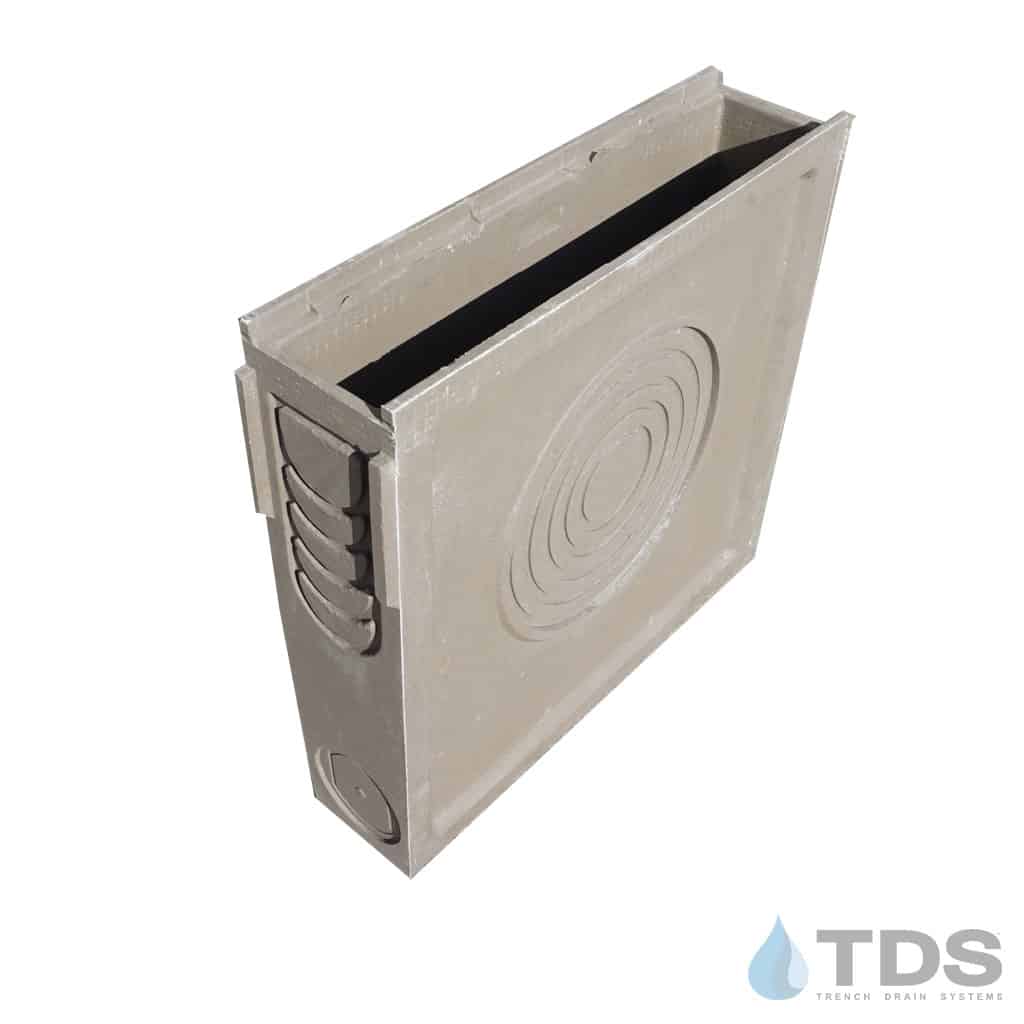

The POLYCAST® Catch Basin is an important part of a pre-sloped drainage system. This catch basin is manufactured with a high strength, corrosion resistant material. They are designed to be used as collection points and drain run transitions to collect solid debris.

The DP0650 can be used as an individual catch basin, or with the POLYCAST® trench drain system. It can also be used beneath the POLYCAST® TP0650S short catch basin for a deeper installation with larger capacity.

Catch basin accepts the same grate options, edging, and frames as the POLYCAST® 600 trench drains for an unnoticeable transition between the channels and catch basin. Cut-out for side, bottom, and end outlets are located on the catch basin for ease of installation. Core drill is available prior to shipment (at an additional cost).

The following POLYCAST® channels correspond with the catch basin: 600N, 605, 610, 615, 620, 625 and their corresponding halves and neutrals.

Actual Dimensions: 6-1/4"W x 24"L x 24"H

Want to learn more about this system? Click Here for more information.
