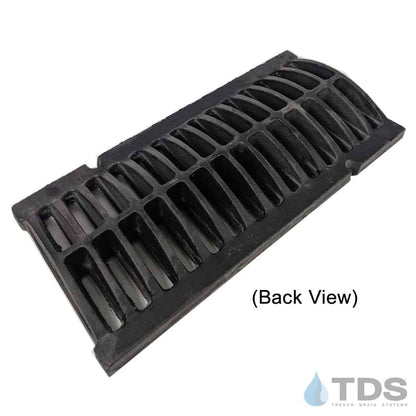

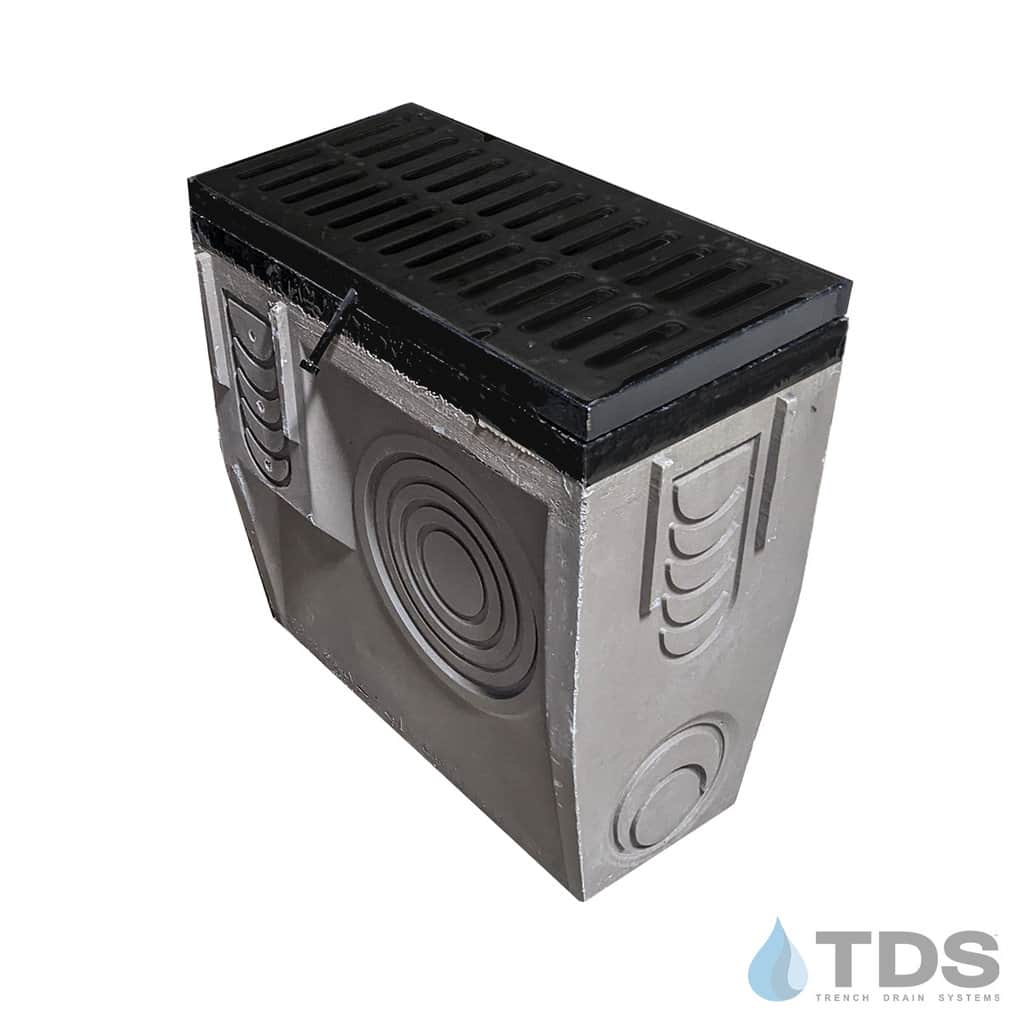

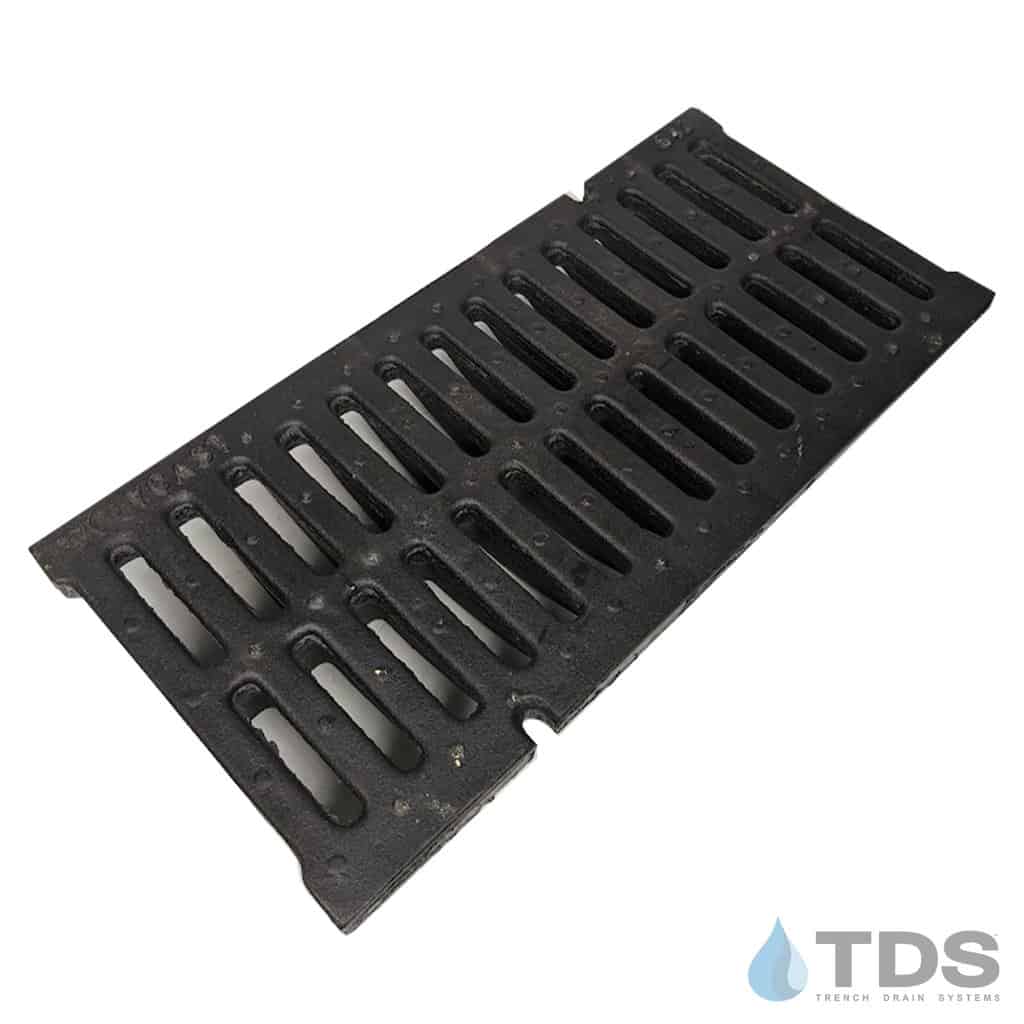

POLYCAST® DP0751 Catch Basin w/DG0643 Gray Iron Slotted Grate and Frame

Grate Width: 12.00"

Grate Thickness: 1.50"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: Hubbell - POLYCAST

System: POLYCAST 700

Grate Load Class: Class E

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Frame - Ductile Iron

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, and Transportation

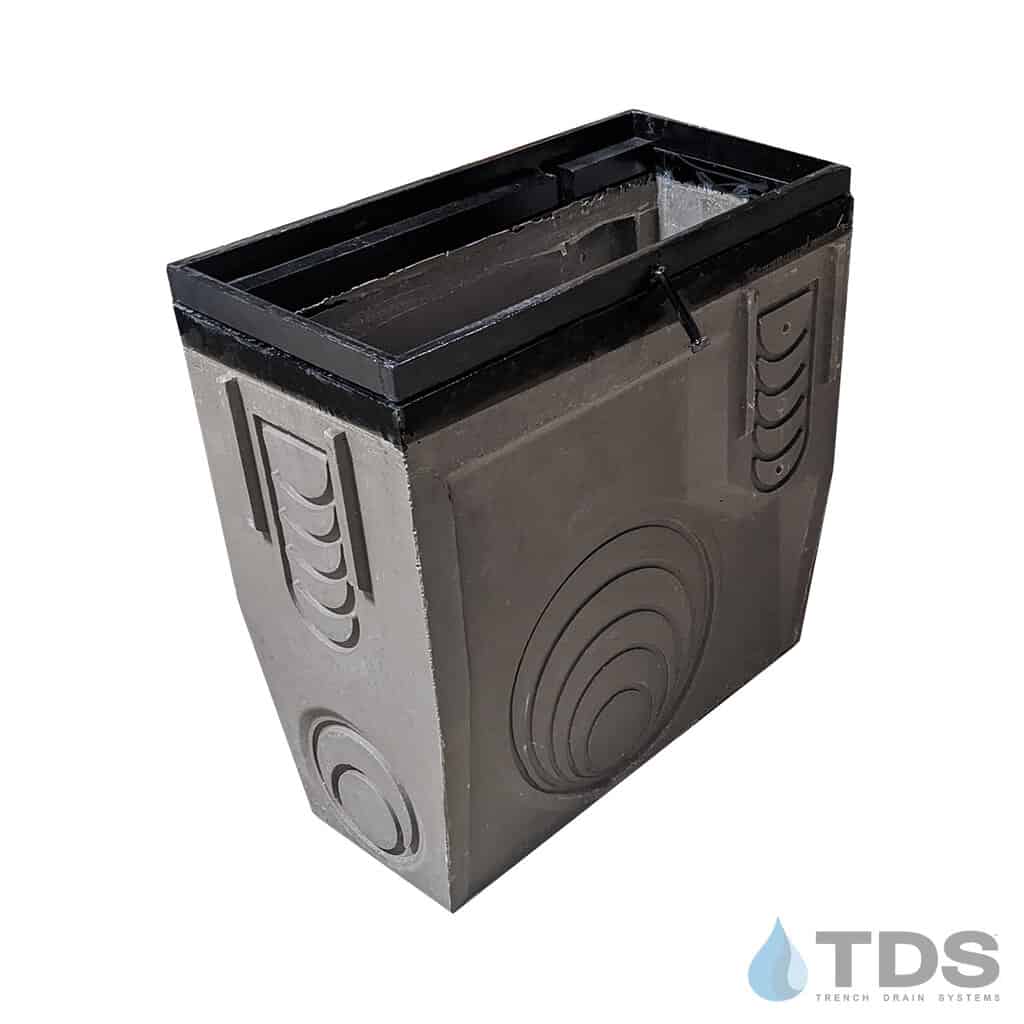

POLYCAST® DP0751 Catch Basins are an important part of a pre-sloped drainage system. These catch basins are manufactured with the same high-strength, corrosion-resistant material used for the POLYCAST® drain channels. They are designed to be used as collection points, drain run transitions, and interceptors to collect solid debris. Catch Basins can be used with the POLYCAST® Drain System or can be used as individual catch basins and have multiple grating options available. Accessories available include a DA0651TC stainless debris basket.

Heavy-Duty Catch Basin Kit Includes:
• Grate
• Catch Basin (2' Section)

Specification Sheet for DG0643 Grate

Specification Sheet for POLYCAST® DP0651 & DP0751 Catch Basin
