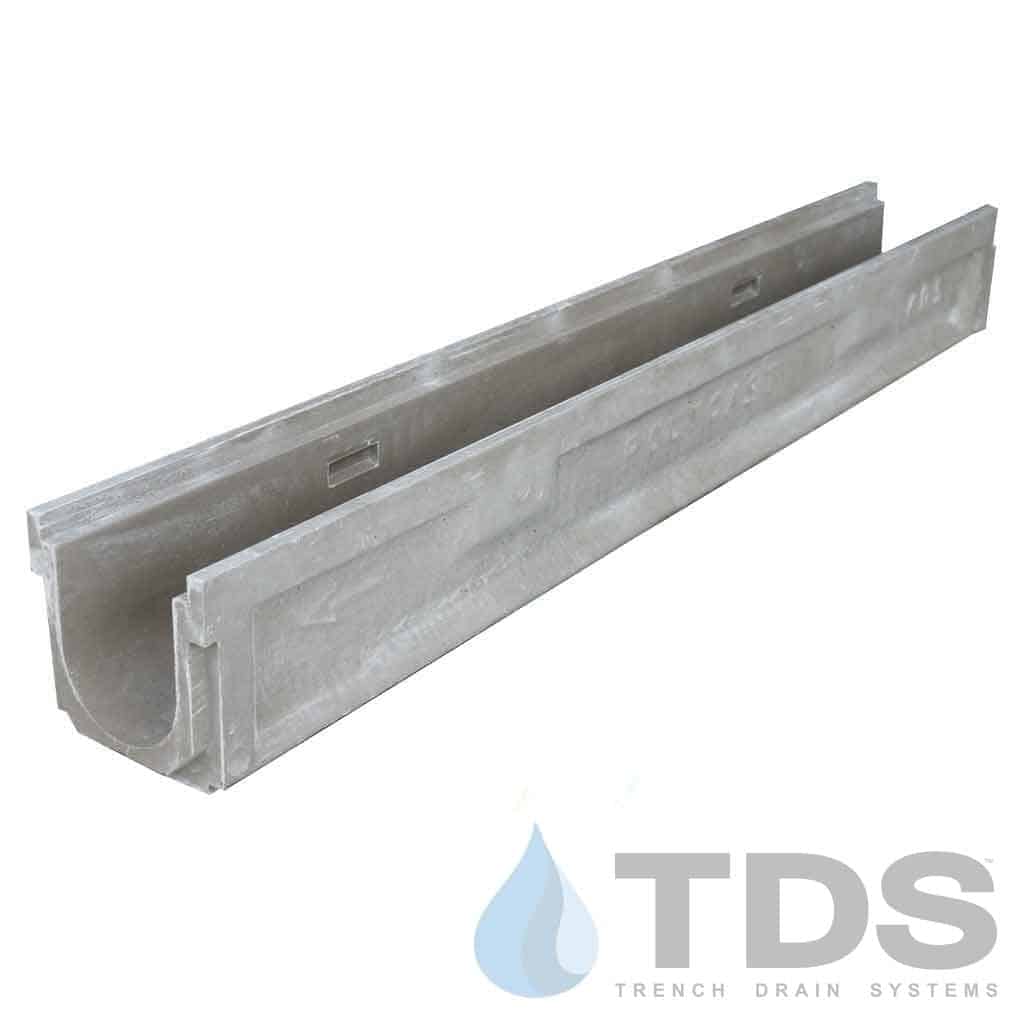

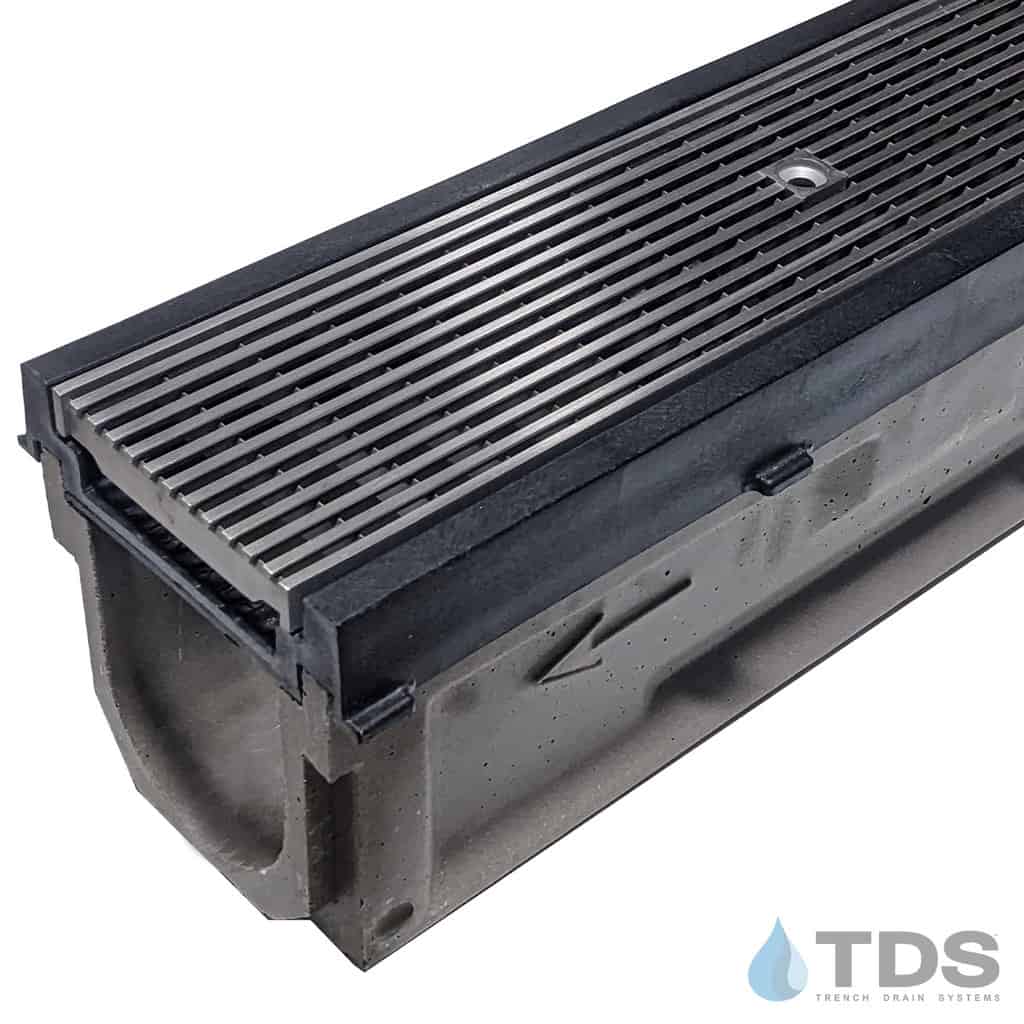

This POLYCAST® 700 Series is a vinyl ester polymer concrete channel that has a built-in 0.65 percent slope that allows the system to achieve flow rates of 470 GPM.
The vinyl ester polymer channels are chemically inert and resistant to high temperatures. This series is perfect for breweries and other industries that experience extreme conditions. The installation chairs tighten the joints between channels while aligning and leveling the drainage run. Each installation chair is secured to the ground (using your own rebar), ensuring that the channels will not float during the concrete pour.
Channel Depths/Dimensions
Corrosion Resistance Details
Engineering Specifications
Installation Instructions

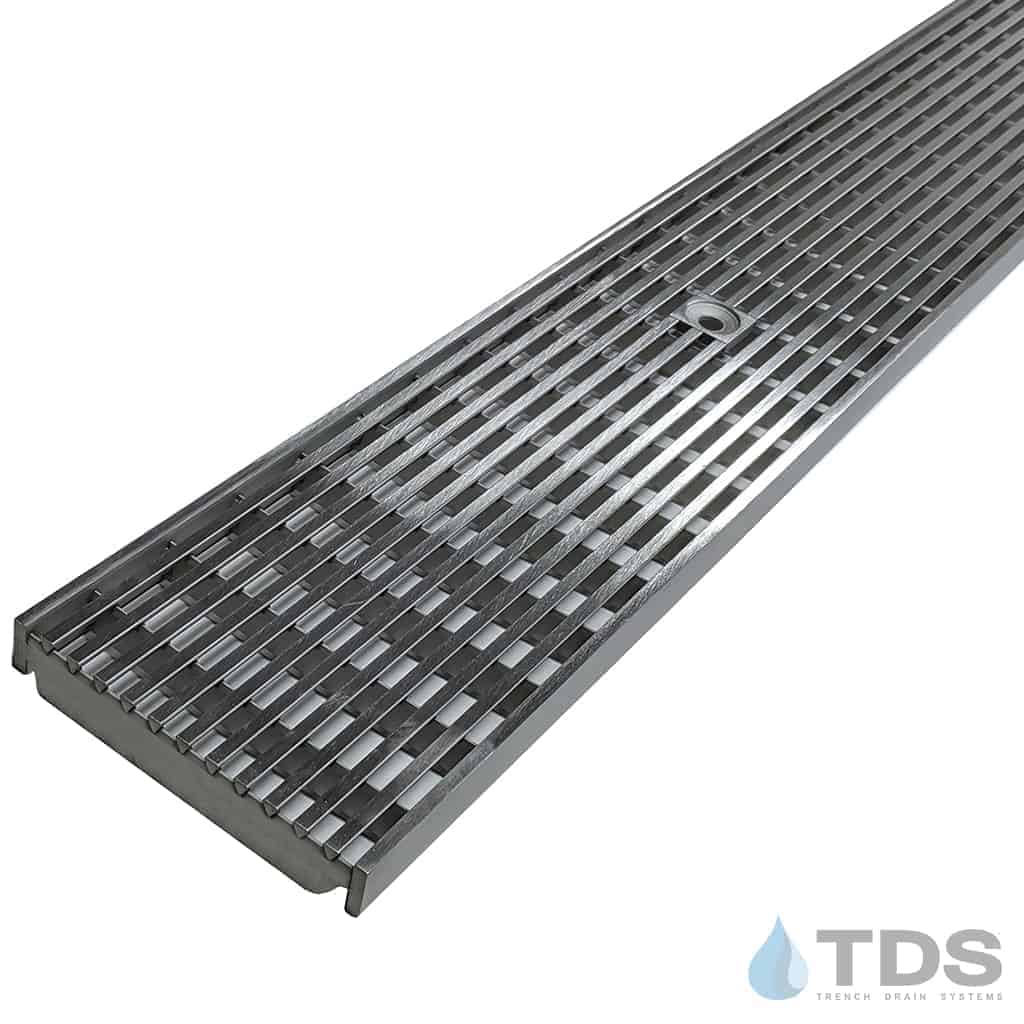

DG0655R Grate Specification Sheet

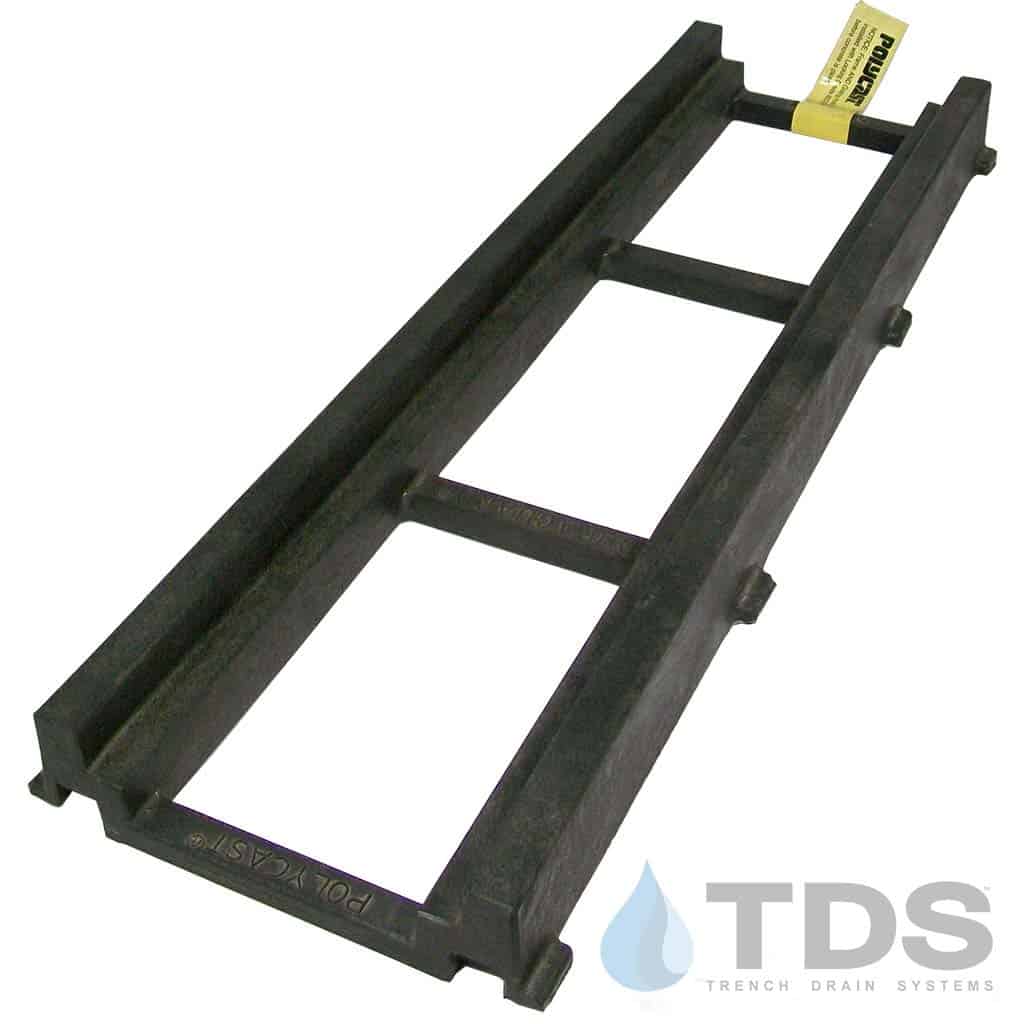

DG0700PE Frame Specification Sheet
Each Kit Includes:
- 48" POLYCAST® vinyl ester pre-sloped channel (1 for each 4' of kit ordered)
Non-sloped runs available by requesting all neutral channels
- Grates
- HDPE Frames (Raises system to a Load Class D)
- Grate Hold-down devices
- Installation Chairs
- End Outlet (fits 4" S&D pipe)
- End Cap
Installation instructions
Layout Info:
Before we can ship your pre-sloped drain order, a layout will need to be approved by you. We will contact you via email with a layout drawing showing channel depths to be shipped. Once layout approval is received, the order is shipped.
If you choose all neutral channels (no slope), please note this in the ‘Order Notes’ during checkout. A layout is not necessary with neutral channels. TDS reserves the right to choose the channel depths based on availability. If you require specific channel depths, please note this in the ‘Order Notes’ during checkout, and we will do our best to accommodate the request.
