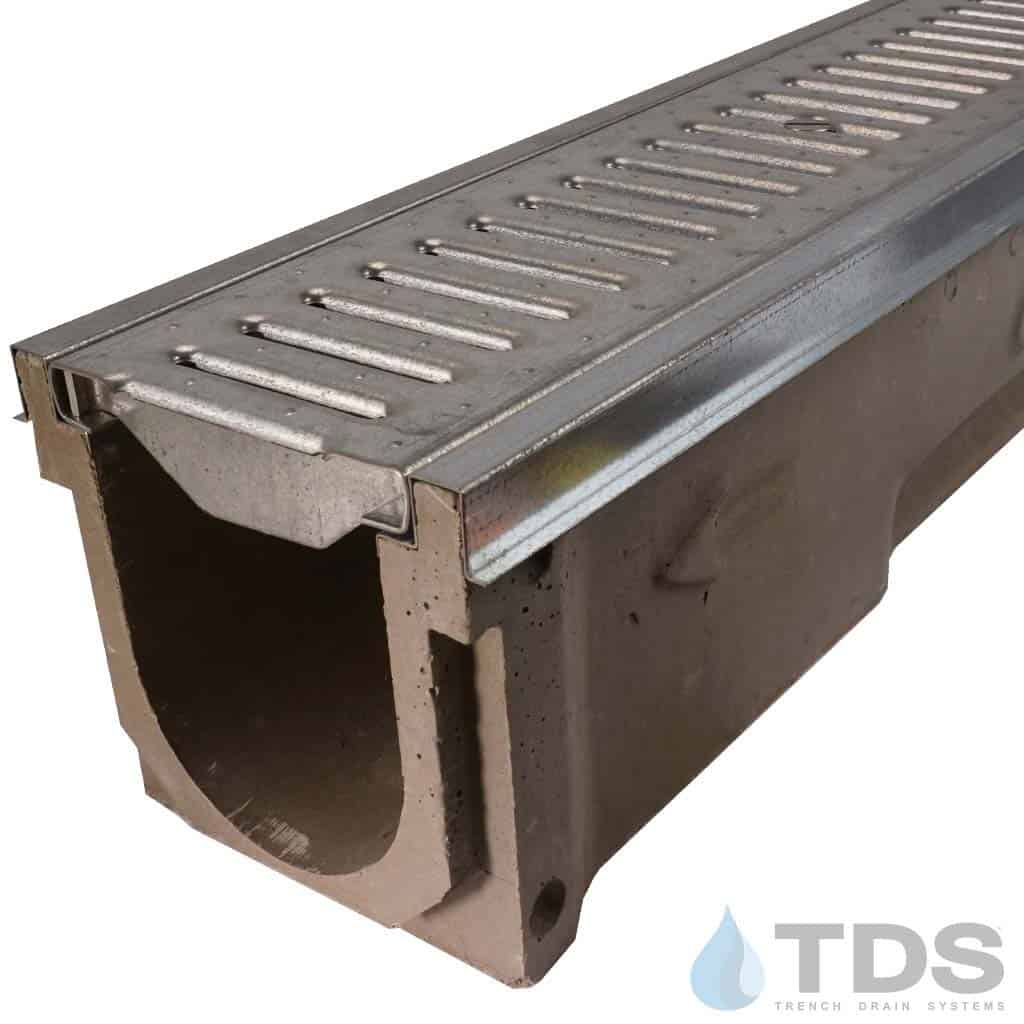

POLYCAST®600 Series Kit w/DG0640R Slotted Galvanized Grate and Edging

POLYCAST® 600 Series is a polymer concrete channel that has a built-in .65 percent slope that allows the system to achieve flow rates of 470 GPM. The installation chairs tighten the joints between channels while aligning and leveling the drainage run. Each installation chair is secured to the ground (using your own rebar), ensuring that the channels will not float during the concrete pour.

Typical Applications

• Decks and Patios
• Commercial
• Hotels
• Driveway Drainage

Grating:

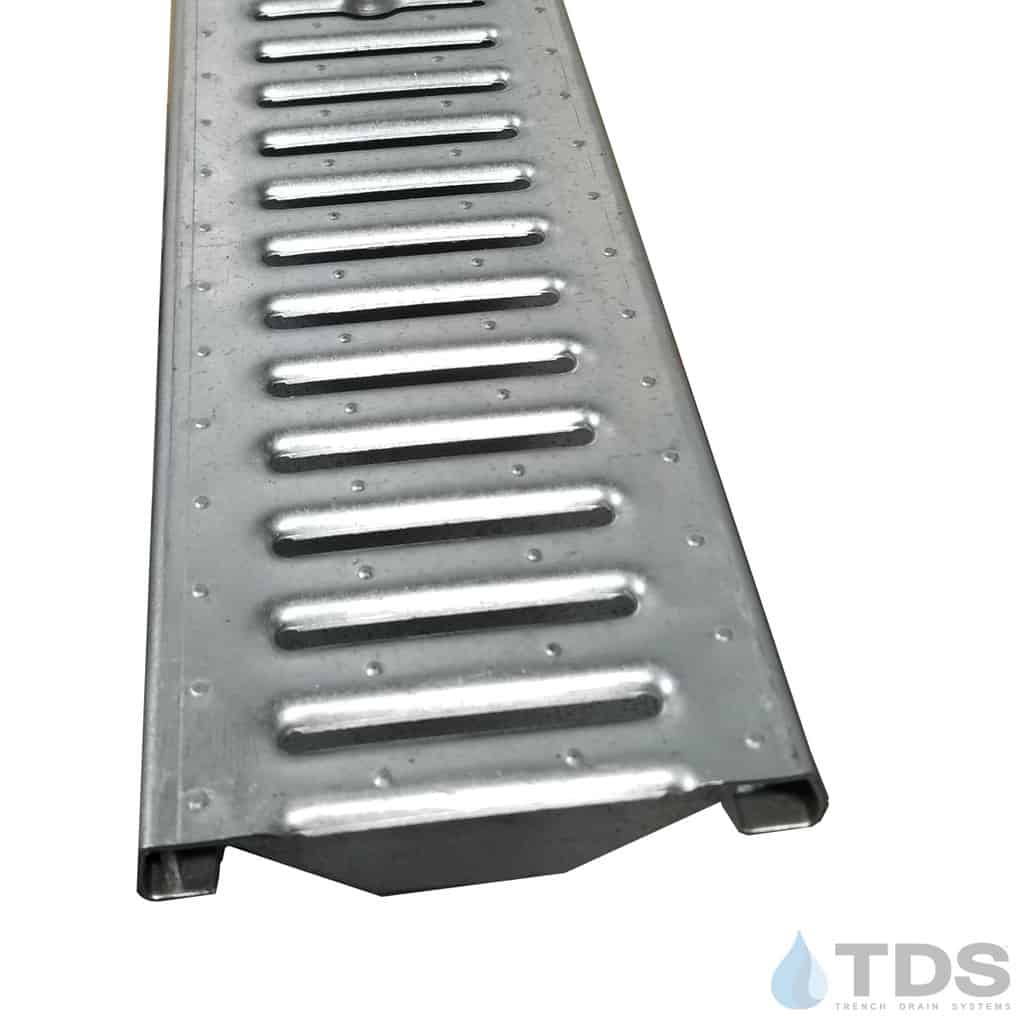

• Galvanized Grate - (Class C Load Rating)
• Pattern: Slotted
• Open Surface Area: 17%

Specification Sheet for DG0640R

Each Kit Includes:

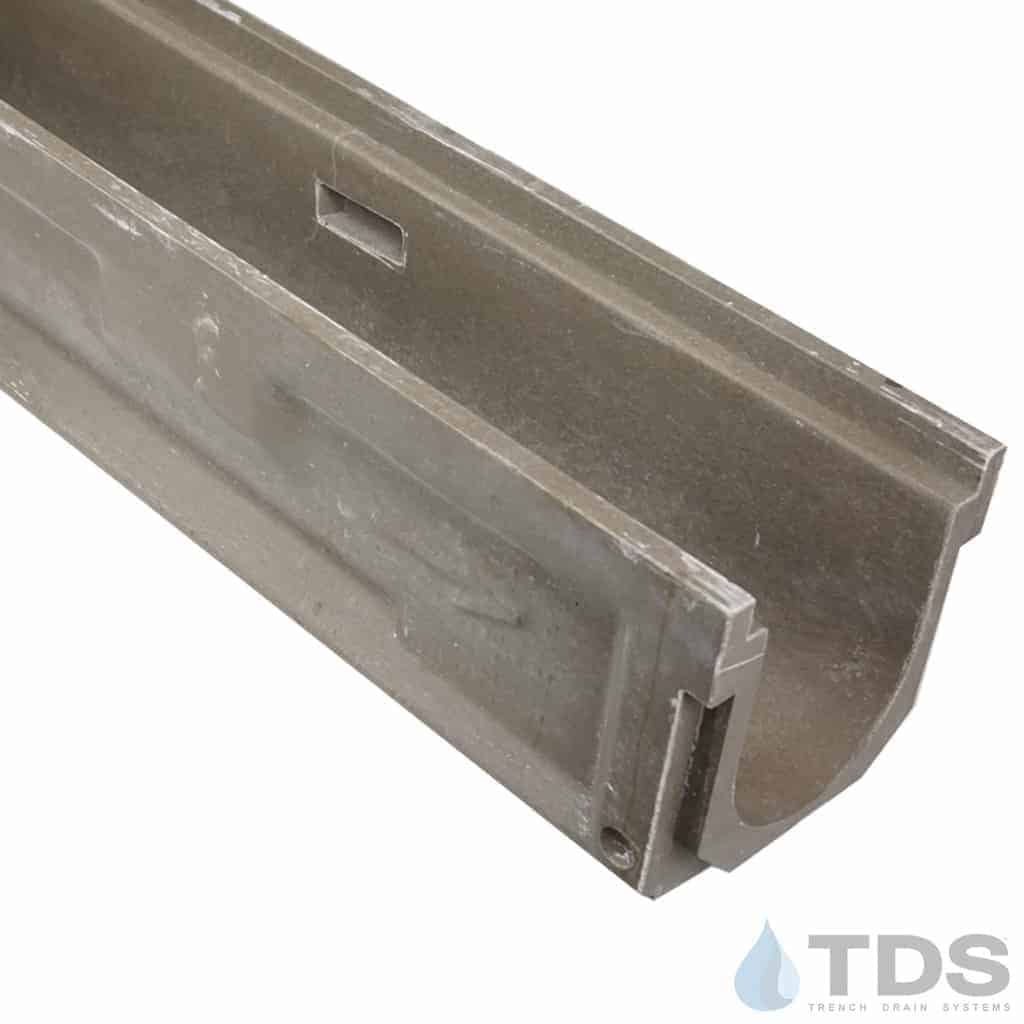

• 48" POLYCAST®  600 channel (1 for each 4' of kit ordered)
  Non-sloped runs available by requesting all neutral channels

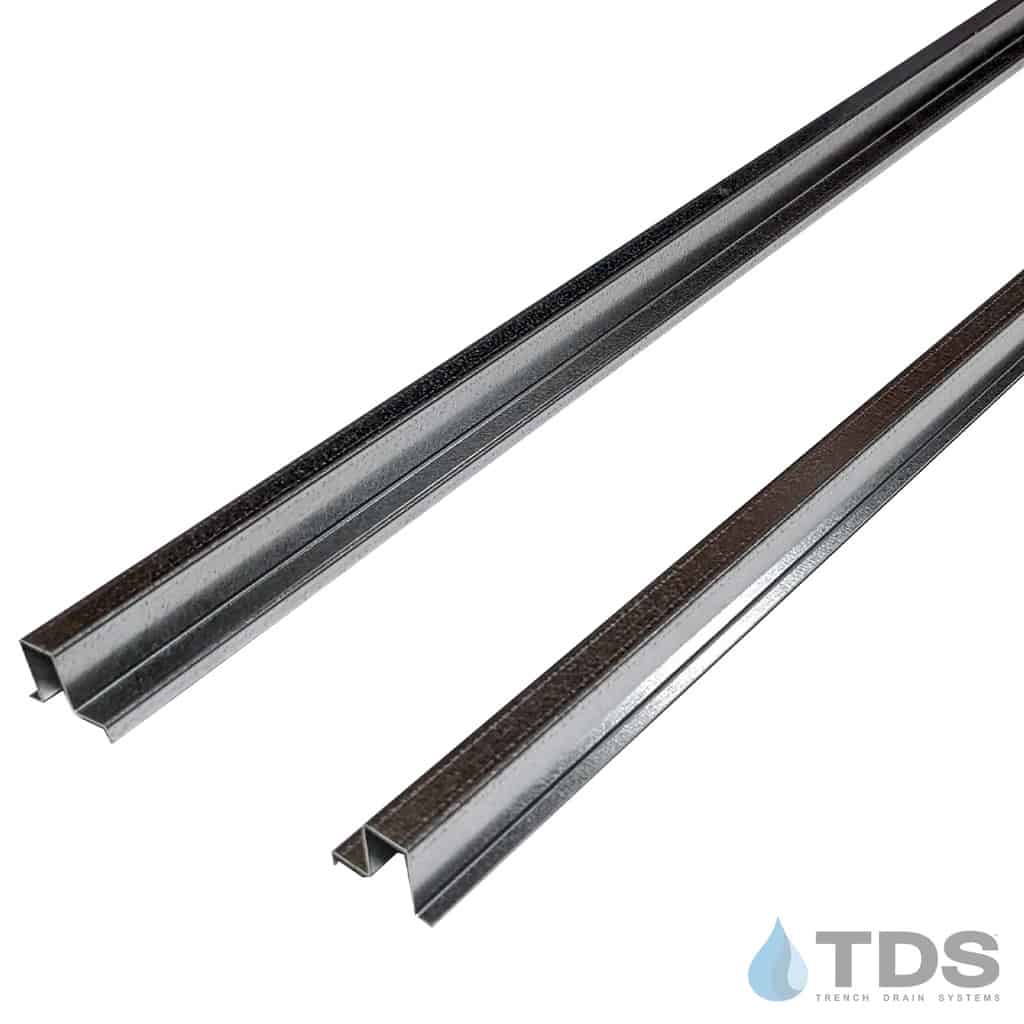

• 48" Galvanized Steel Edging (1pr per channel)
• 48" Galvanized Steel Grate (1 per channel)
• Grate Hold-down devices (2 per grate)
• Installation Chairs
• End Caps (1 per system)
• End Outlet (1 per system)
• Installation instructions

Layout Info:
If you have certain channels, a channel depth requirement, or a large project, we invite you to request a quote.

Channel Depths/Dimensions
Corrosion Resistance Details
Engineering Specifications
Installation Instructions

Want to learn more about this system? Click Here for more information.
