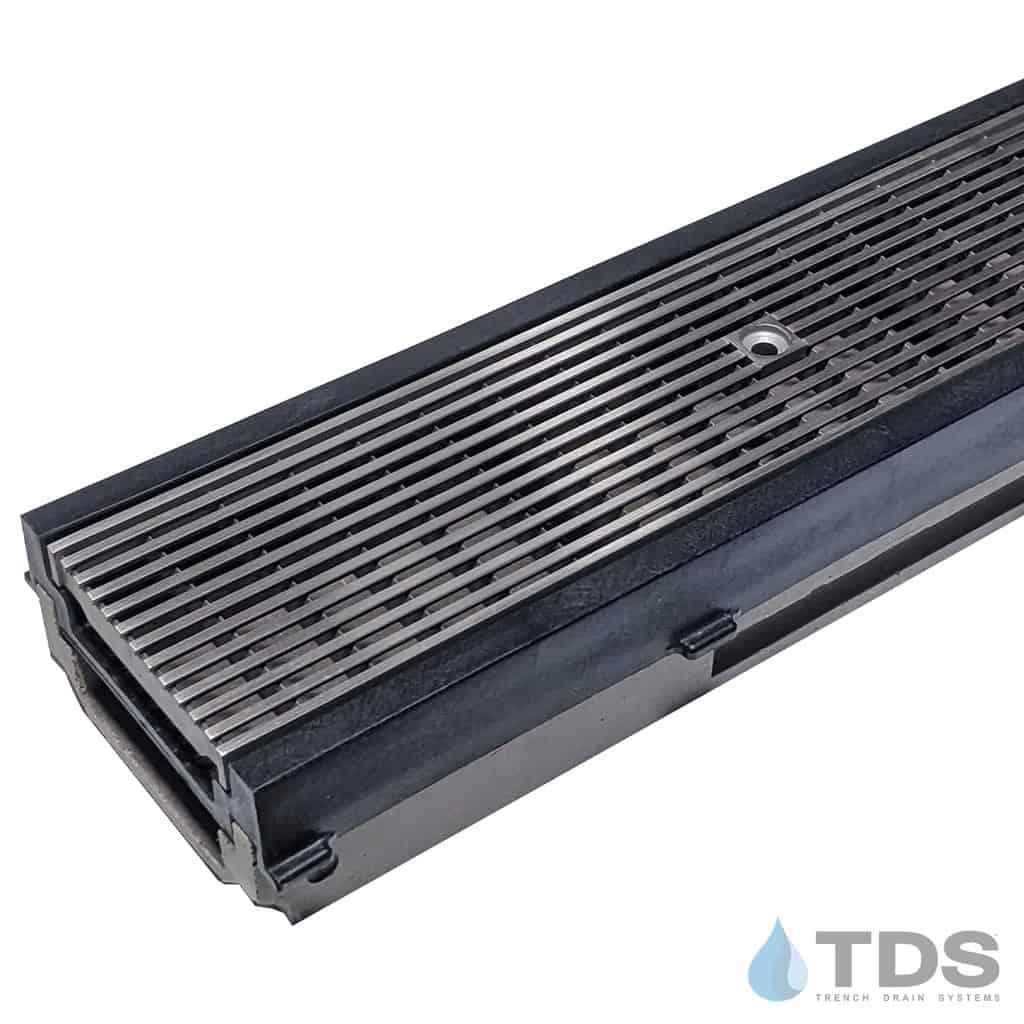

POLYCAST®500 Series Kit w/ DG0655R Wedge Wire Grate & HDPE Frame | Load Class C

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish: Stainless Steel 316L

Manufacturer: Hubbell - POLYCAST and TDS (Trench Drain Systems)

System: POLYCAST 500

Grate Load Class: Class C

Grate Pattern: WEDGE WIRE

Grate Pattern Style: INDUSTRIAL

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Frame - HDPE

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

Kits include:

• 48″ POLYCAST® neutral channel (1 for each 4′ of kit ordered)
• 48″ Stainless Steel Wedge Wire Grates (1 per channel)

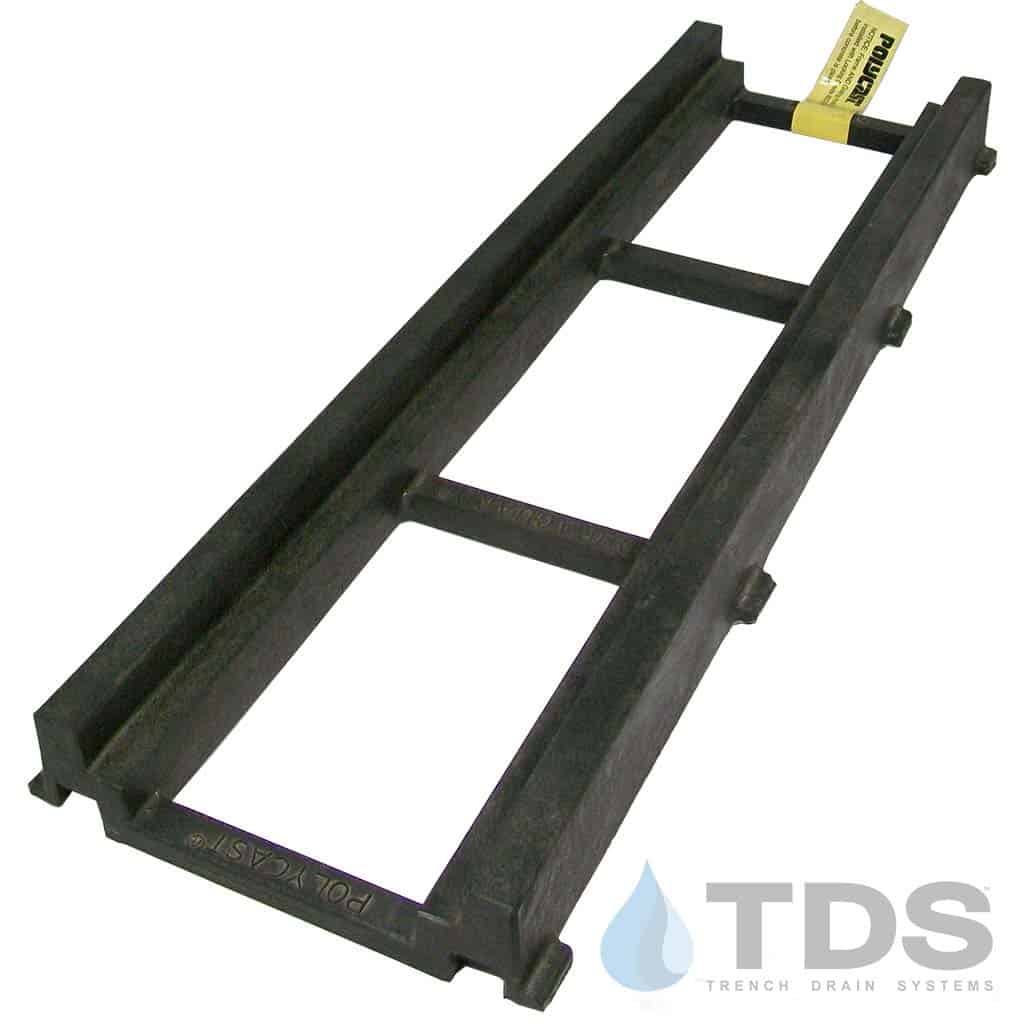

• 48″ HDPE Frame (2 per channel)
• Grate Hold-down devices (2 per grate)
• Installation Chairs
• End Caps
• Installation instructions

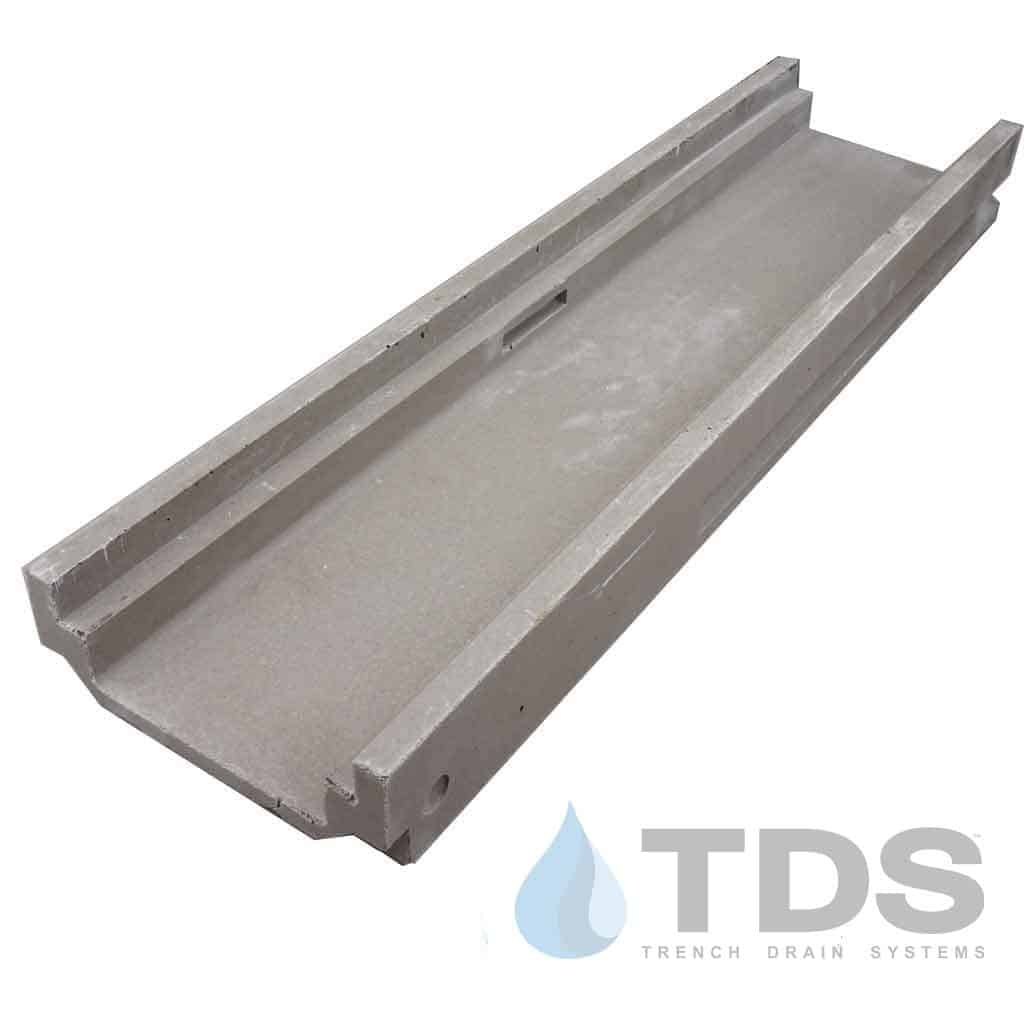

POLYCAST 500 shallow trench drain is 1.75” in depth, 6.25″ wide and comes in 48” lengths . A bottom outlet will need to be core drilled for pipe connection.  Installation chairs are included and provide a tight joint between channels while aligning and leveling the drainage run. Each installation chair is secured to the ground (using your own rebar), ensuring that the channels will not float during the concrete pour.

Typical Applications

• Decks and Patios
• Grocery Stores
• Driveways
• Hotels
• Swimming Pools

Grating:

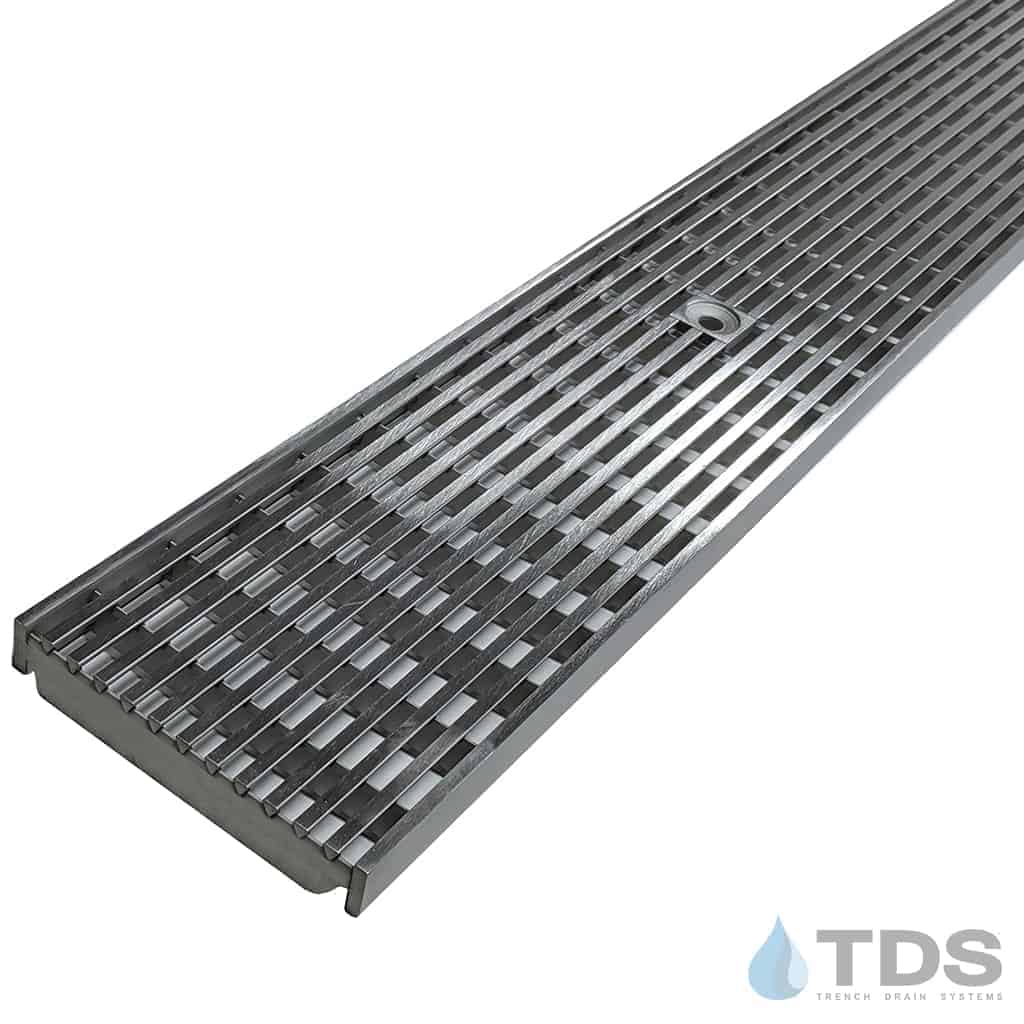

• Stainless Steel Wedge Wire Grates - (Class C Load Rating)
• Open Surface Area:  20%
• Material: Stainless Steel

POLYCAST® 500 Kit Includes:

• 48" POLYCAST®500 neutral channel (1 for each 4' of kit ordered)
• 48" Stainless Steel Wedge Wire Grates (1 per channel)
• 48" HDPE Frame (2 per channel)
• Grate Hold-down devices (2 per grate)
• Installation Chairs
• End Caps
• Installation instructions

Want to learn more about this system? Click Here for more information.

NOTE: For proper installation, grates must be in the channel during installation.
