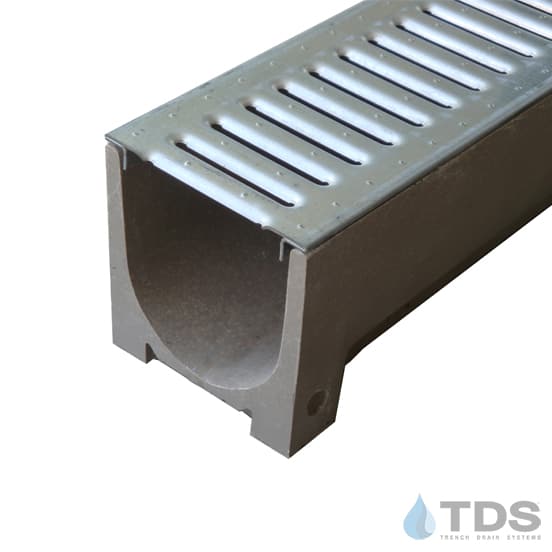

POLYCAST®400 Series Kit w/DG0442 5"x48" Slotted Galvanized Grate

Grate Width: 5.18" for Hubbell Polycast

Grate Thickness: 0.50" with T-Top

Grate Material / Color / Finish: Galvanized Steel

Manufacturer: Hubbell - POLYCAST

System: POLYCAST 400

Grate Load Class: Class A

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Frame - None and Edging - None

Application: General Purpose Drainage - External, Residential, and Sports Complex - Recreational

Each Kit Includes:

• 48" POLYCAST® 400 channel (1 for each 4' of kit ordered)

• 48" Galvanized Steel Grate (1 per channel)
• Grate Hold-down Devices
• Installation Chairs
• End Cap/Outlet
• Installation instructions

POLYCAST® 400 Series is a Neutral polymer concrete trench drain system designed for light traffic applications such as sidewalks, patios, or tennis courts. Channels are fitted with ADA-compliant 5" x 48" galvanized steel slotted grates. They are rated at a Load Class A and can withstand the weight of pedestrian traffic or lightweight vehicles, such as lawnmowers and golf carts.

Actual Grating Dimensions: 5.19" [132mm] x 47.81" [1214mm] x .50" [13mm]

Specification Sheet for DG0442

Product Catalog for POLYCAST°

Each Kit Includes:

• 48" POLYCAST® 400 channel (1 for each 4' of kit ordered)

• 48" Galvanized Steel Grate (1 per channel)
• Grate Hold-down devices
• Installation Chairs
• End Cap/Outlet
• Installation instructions

Want to learn more about this system? Click Here for more information.
