POLYCAST DP0699M Channel Adapter Male-to-Male

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish:

Manufacturer: Hubbell - POLYCAST

System: POLYCAST 600, POLYCAST 700, and POLYCAST 900

Grate Load Class:

Grate Pattern:

Grate Pattern Style:

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Frame - None, Edging - None, Edging - Galvanized, Edging - Stainless, Frame - Ductile Iron, and Frame - HDPE

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Transportation

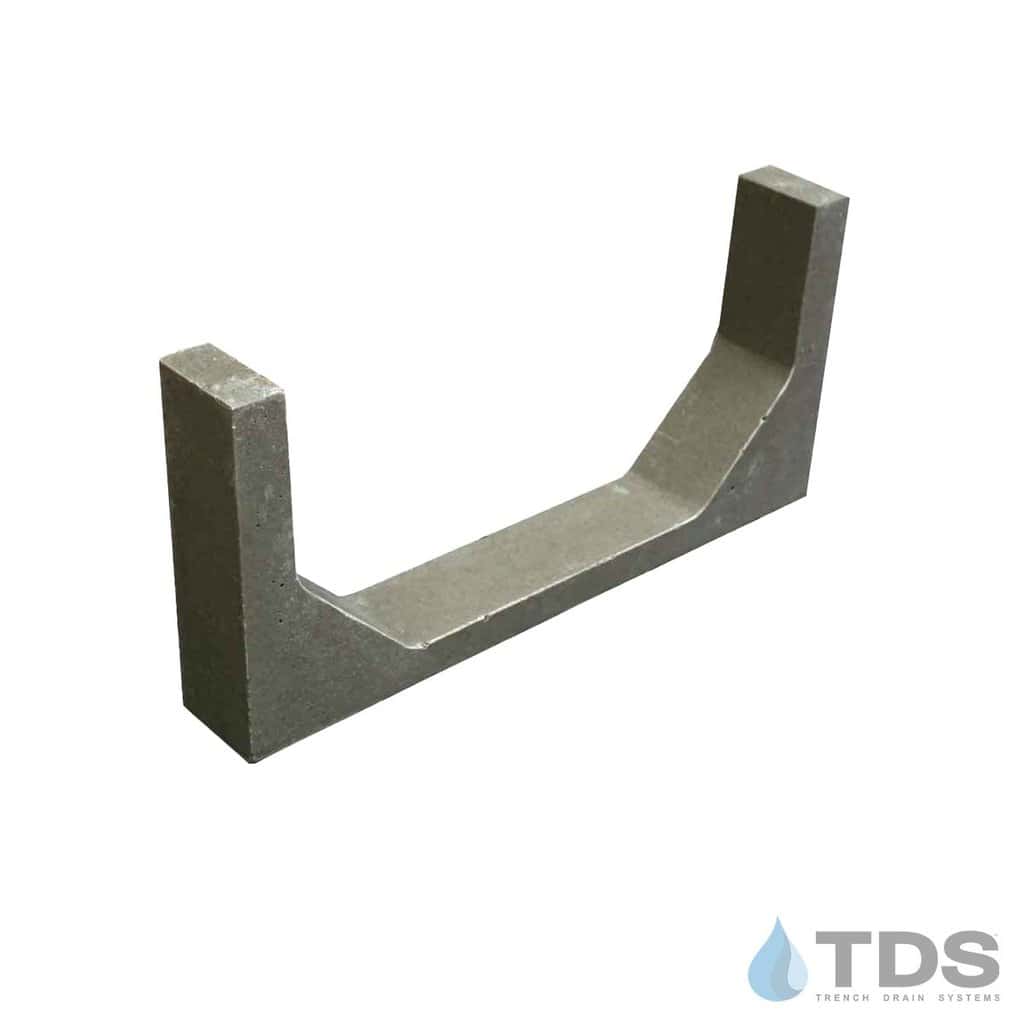

The DP0699M male transition piece is used to lap under the male to male joint . For POLYCAST® 600 system only.

Male and Female transition devices are available for POLYCAST® 600 where channel runs are in opposite directions and two channels are set either female to female or male to male. The DP0699M male transition piece is used to lap under the male to male joint to connect two drain run ends together at the low point. (This applies to 600 Series only.)

Specification Sheet for DP0699M
