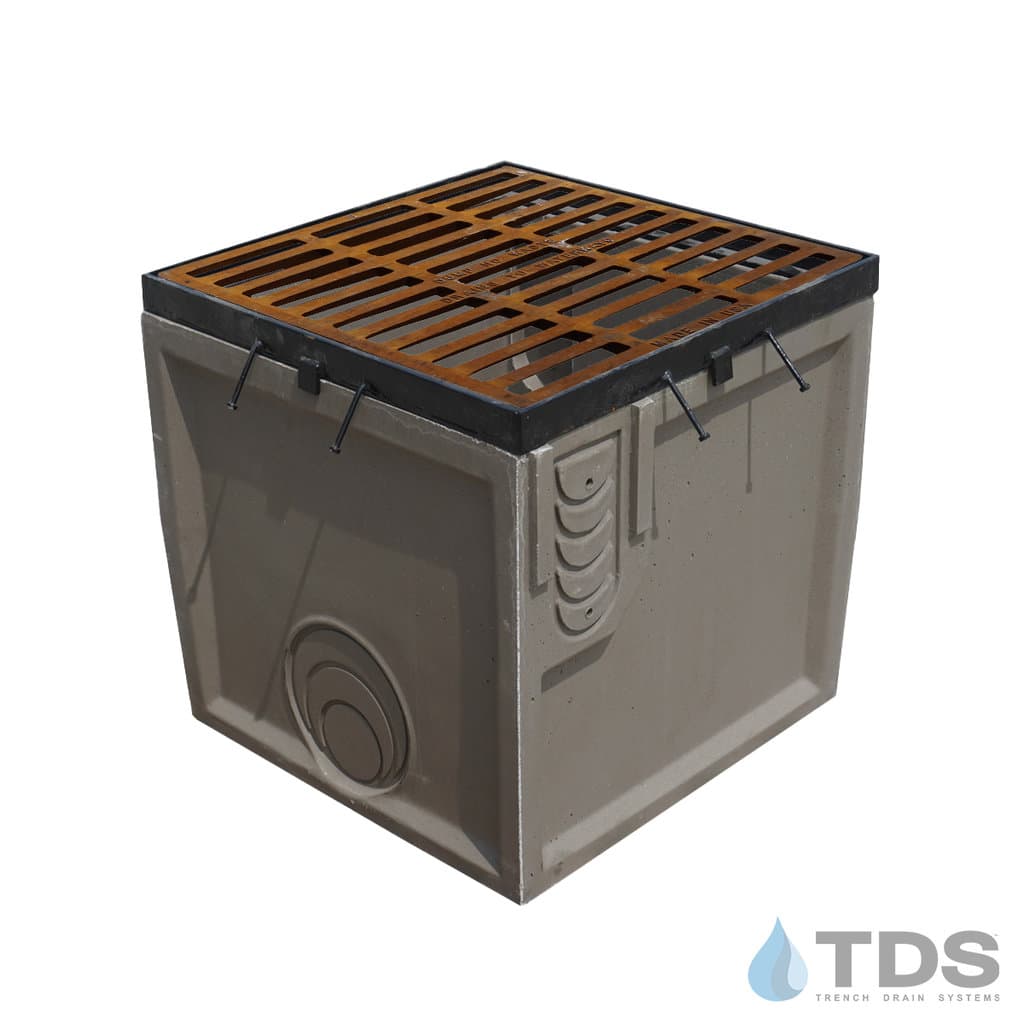

POLYCAST® DP0653SB 24" Catch Basin w/DG0653D Slotted Ductile Iron Grate

Grate Width: 24.0" x 24.0" for Hubbell Polycast

Grate Thickness: 1.50"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: Hubbell - POLYCAST

System: POLYCAST 600

Grate Load Class: Class F

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Frame - None and Edging - None

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

Heavy-Duty Catch Basin Kit

Large Project? Request Quote.

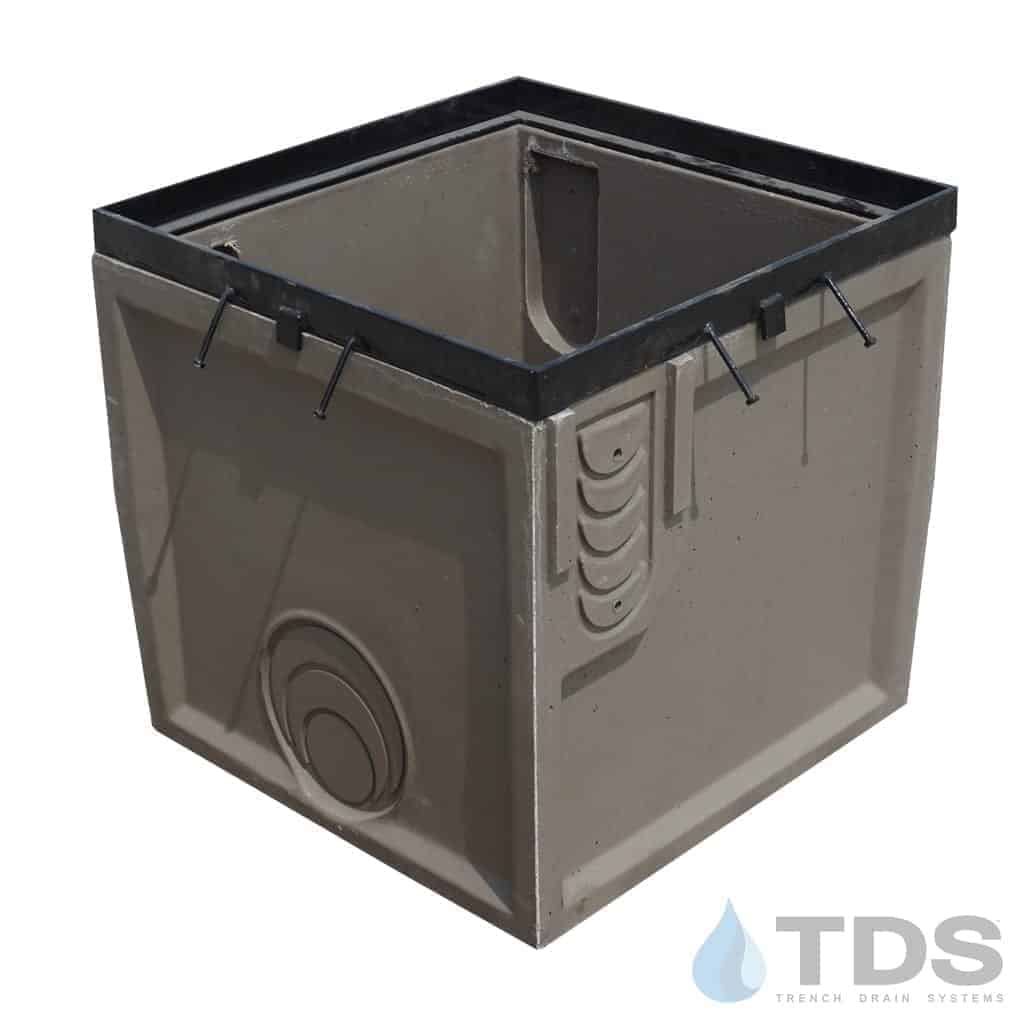

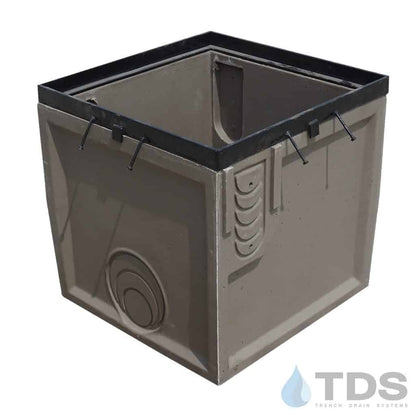

Hubbell’s POLYCAST DP0653SB 24" x 24" solid bottom catch basin with an additional ductile iron frame raises the whole system by 1.5" for ease of installation and the basin is designed to be used as a collection point, drain run transition, or interceptor that captures solid debris and can hold up to 46 gallons of water. They are made of polymer concrete and created to attach using preformed cut-out indicators along the sides basin.

Grates are sold separately. Basin Risers DP0653OB are available if deeper collection points are needed.

Grating:

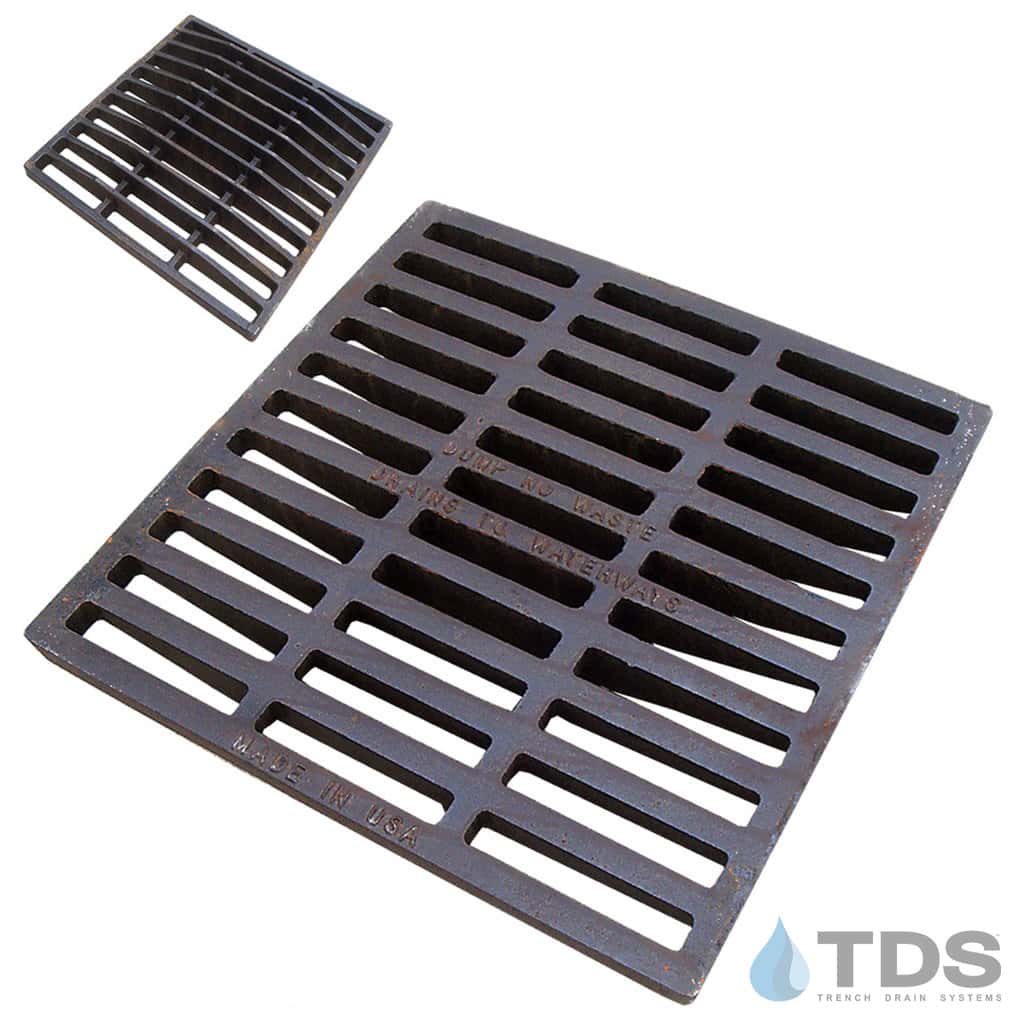

• DG0653D - Ductile Iron Slotted Grate - (Class F Load Rating)
• Meets DIN 19580 / DIN EN1433 standards
• Made in USA
• Color: Black

Specification Sheet for DG0653D

Catch Basin Kit Includes:

• Grate (Ductile Iron Slotted)
• Catch Basin (Solid Bottom)

Specification Sheet for DP0653SB
