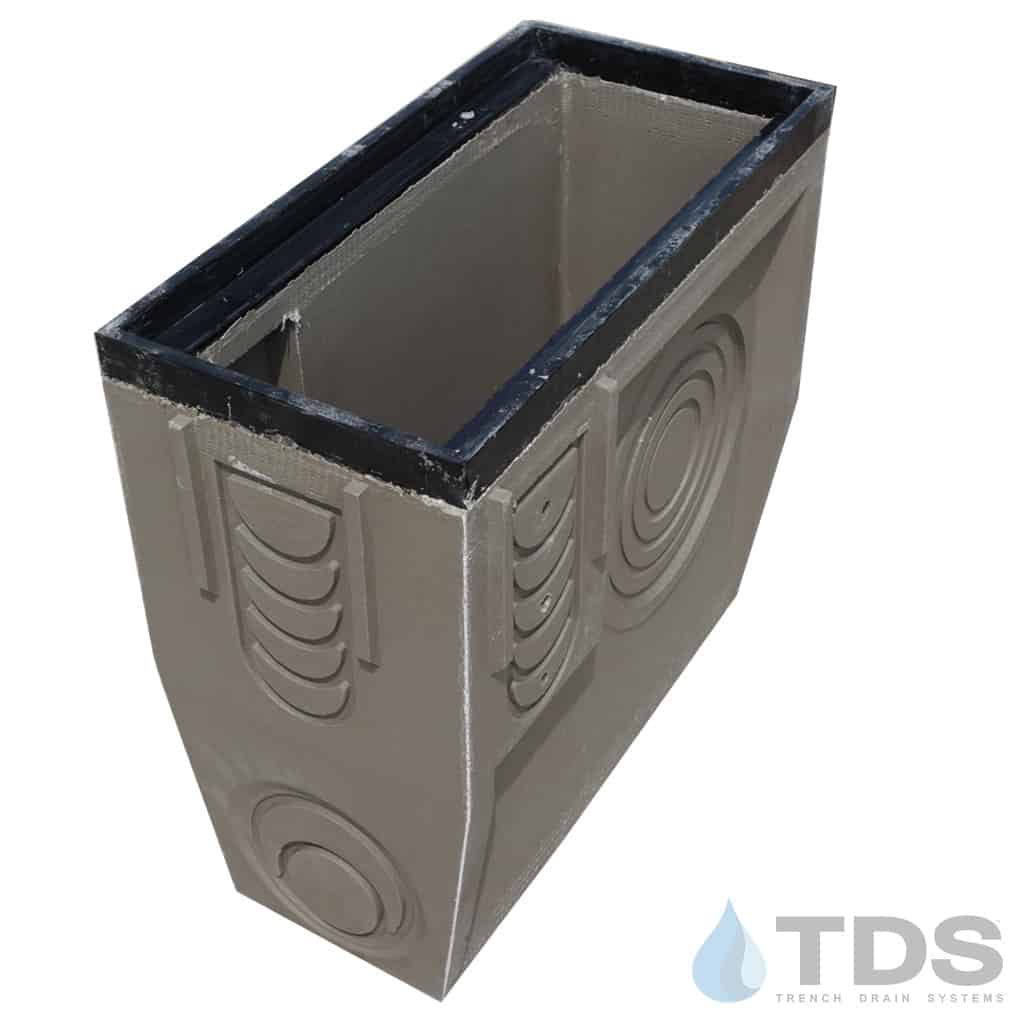

POLYCAST® DP0651 Polymer Concrete Catch Basin

Grate Width: 12" x 24" for Hubbell Polycast

Grate Thickness: 1.50"

Grate Material / Color / Finish:

Manufacturer: Hubbell - POLYCAST

System: POLYCAST 500, POLYCAST 600, POLYCAST 700, and POLYCAST 900

Grate Load Class:

Grate Pattern:

Grate Pattern Style:

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Frame - None, Edging - None, and Frame - Ductile Iron

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, Sports Complex - Recreational, and Transportation

Deep Catch Basin

12″W x 24″L x 24″H

Large project? Request a Quote

The POLYCAST® Catch Basin is an important part of a pre-sloped drainage system. This catch basin is manufactured with a high strength, corrosion resistant material. They are designed to be used as collection points and drain run transitions to collect solid debris.

The DP0651 can be used as an individual catch basin, or with the POLYCAST® trench drain system.

Cut-out for side, bottom, and end outlets are located on the catch basin for ease of installation. Core drill is available prior to shipment (at an additional cost).

The following POLYCAST® channels correspond with the catch basin: 600N, 605, 610, 615, 620, 625 and their corresponding halves and neutrals.

Debris baskets (sold separately) are available as stainless steel material or HDPE material.

Actual Dimensions: 12"W x 24"L x 24"H

Want to learn more about this system? Click Here for more information.
