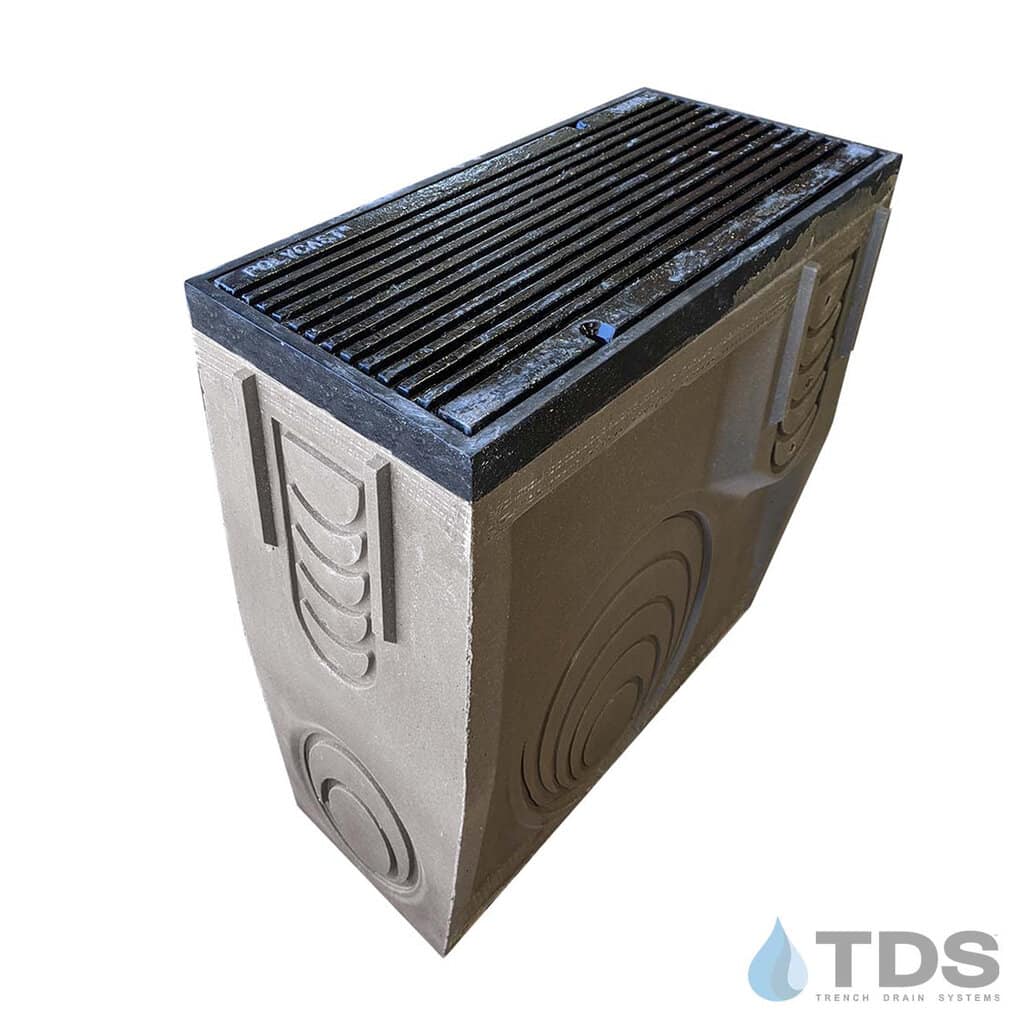

POLYCAST® DP0651 Catch Basin w/DG0685HD Transverse Slotted Ductile Iron Grate

Grate Width: 12.00"

Grate Thickness: 1.50"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: Hubbell - POLYCAST

System: POLYCAST 600

Grate Load Class: Class E

Grate Pattern: TRANSVERSE SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Frame - None and Edging - None

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

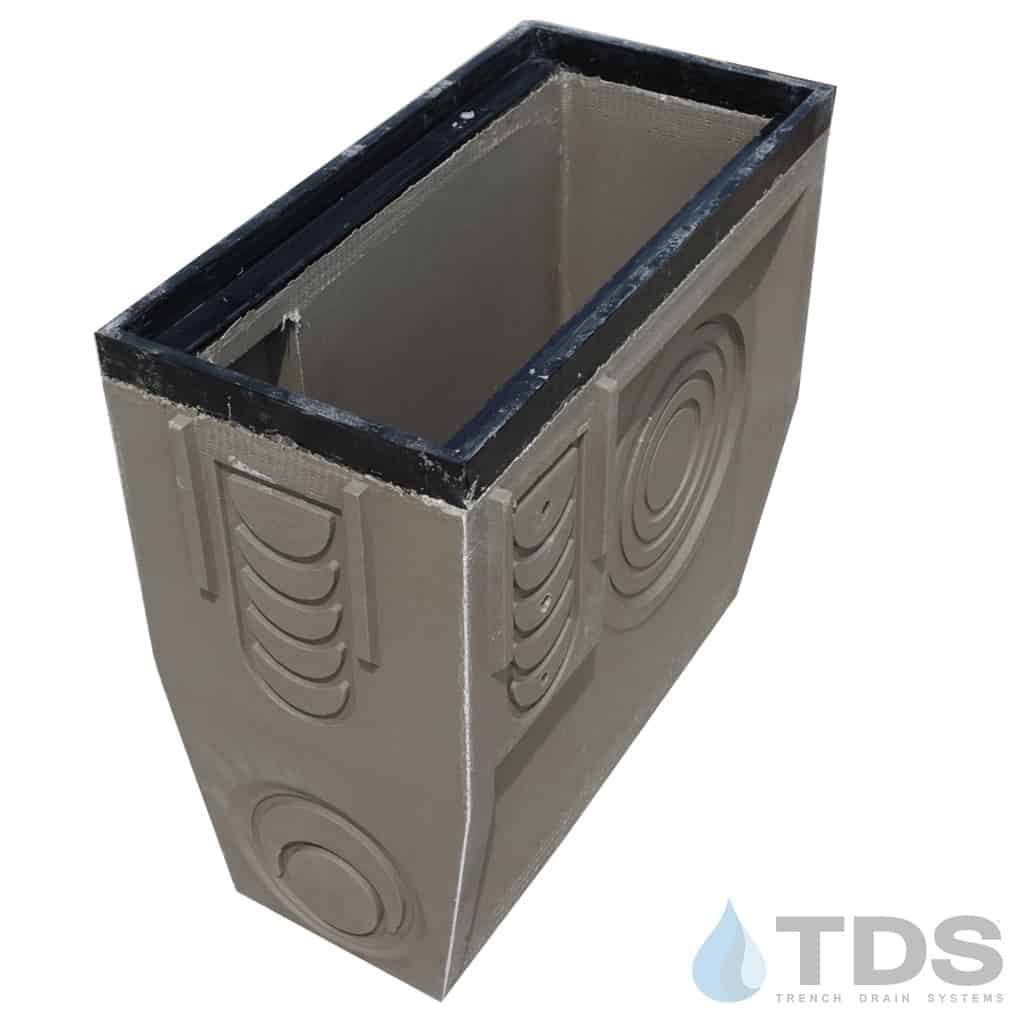

The POLYCAST® DP0651 - 12" wide inline catch basin with ductile iron edging is an important part of a pre-sloped drainage system. This catch basin is manufactured with a high-strength, corrosion-resistant material. They are designed to be used as collection points and drain run transitions to collect solid debris.

The DP0651 can be used as an individual catch basin, or with the POLYCAST® trench drain system.

Cut-outs for side, bottom, and end outlets are located on the catch basin for easy installation. A core drill is available before shipment (at an additional cost).

The following POLYCAST® channels correspond with the catch basin: 600N, 605, 610, 615, 620, 625 and their corresponding halves and neutrals.

Debris baskets (sold separately) are available in stainless steel or HDPE material.

Actual Basin Dimensions: 12"W x 24"L x 24"H

Grating:

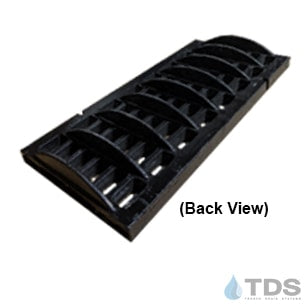

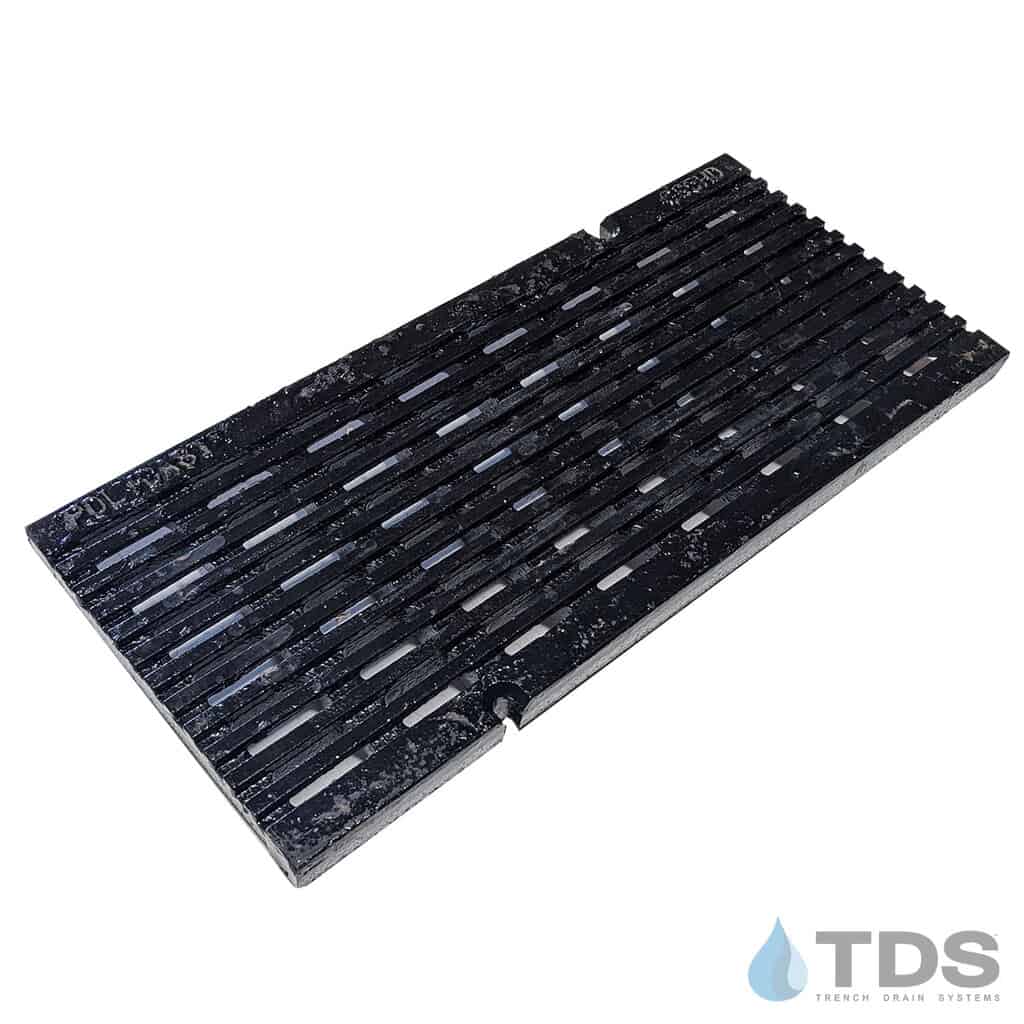

• DG0685HD - Ductile Iron Slotted Grate - (Class E Load Rating)
• Open Area: 17% (34IN2)
• Color: Silver

Catch Basin Kit Includes:

• Grate (Ductile Iron Slotted)
• Locking Device
• Catch Basin

Specification Sheet for POLYCAST® 651/751 Catch Basin
