Deep Catch Basin
12″W x 24″L x 24″H
Large project? Request a Quote

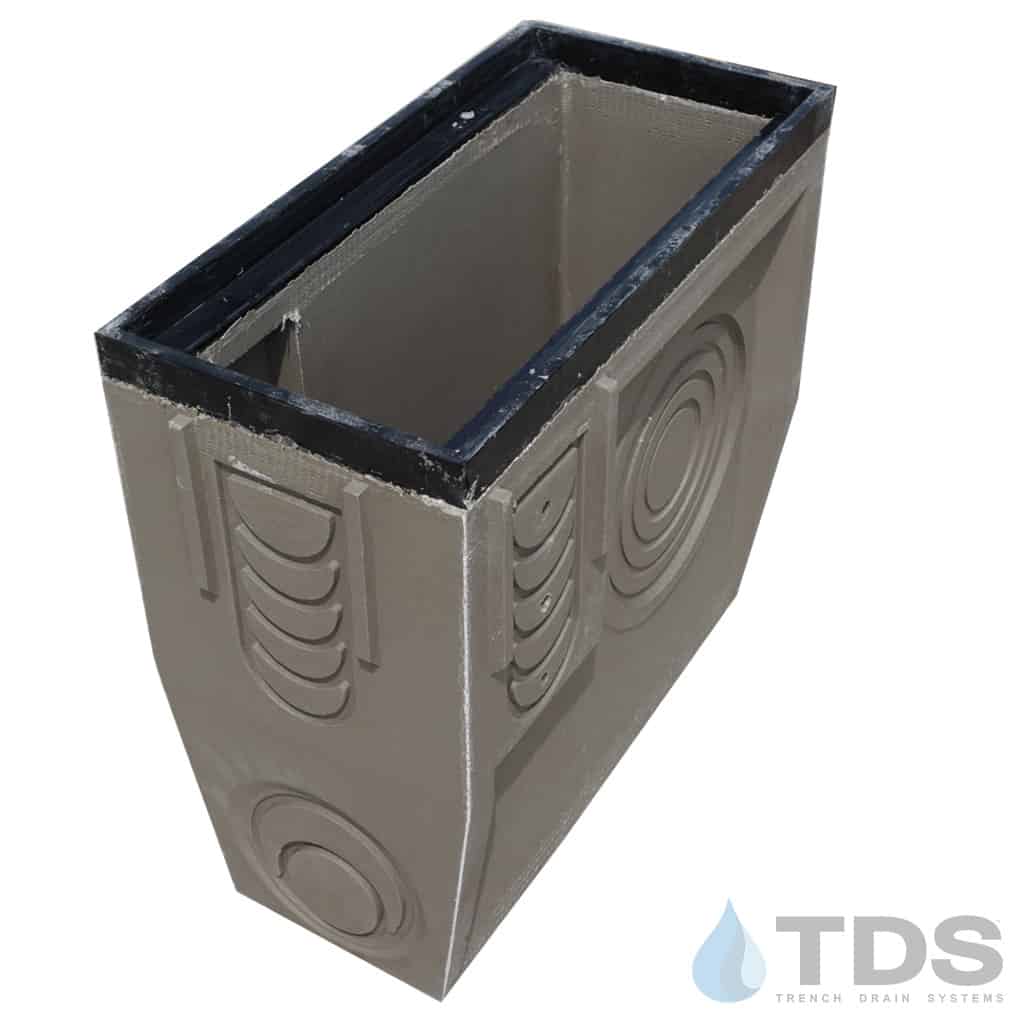

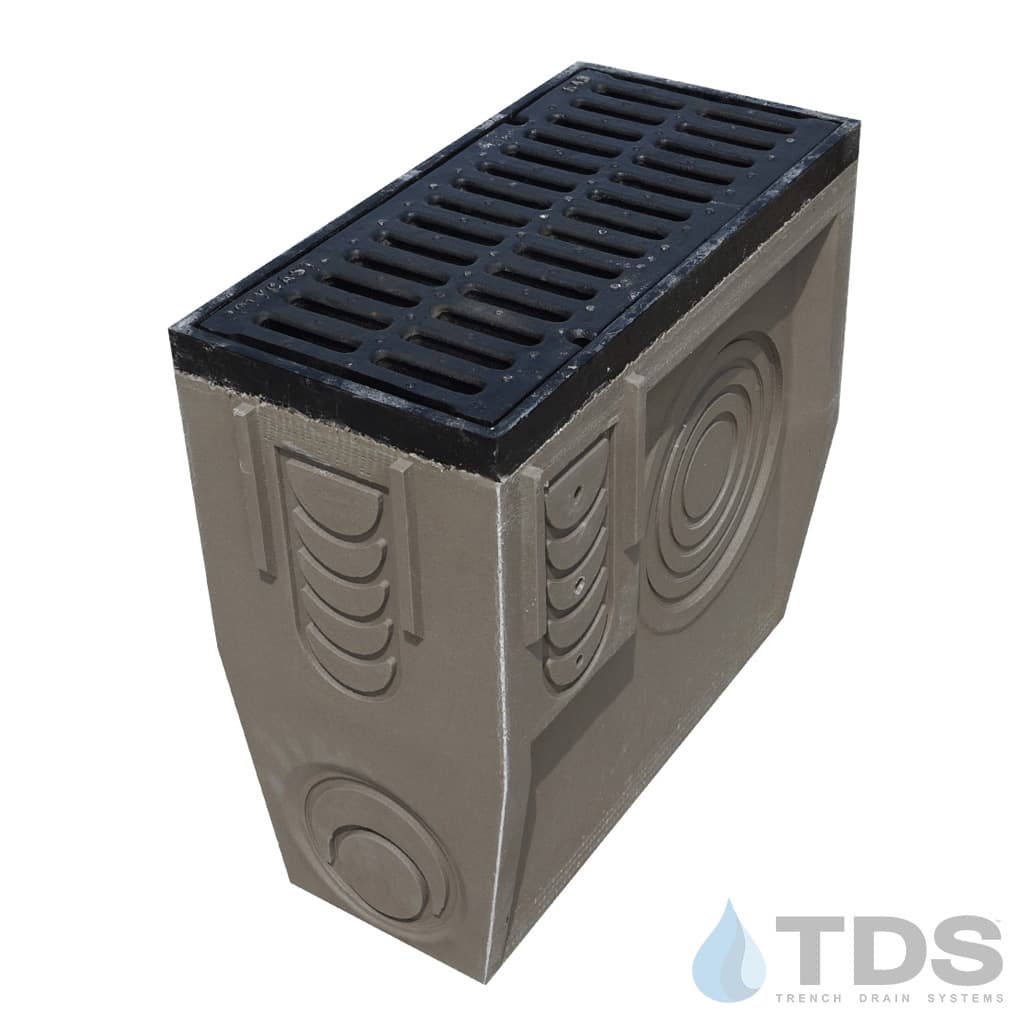

The POLYCAST® DP0651 - 12" wide inline catch basin with ductile iron edging is an important part of a pre-sloped drainage system. This catch basin is manufactured with a high-strength, corrosion-resistant material. They are designed to be used as collection points and drain run transitions to collect solid debris.
The DP0651 can be used as an individual catch basin, or with the POLYCAST® trench drain system.
Cut-outs for side, bottom, and end outlets are located on the catch basin for easy installation. Core drill is available before shipment (at an additional cost).
The following POLYCAST® channels correspond with the catch basin: 600N, 605, 610, 615, 620, 625 and their corresponding halves and neutrals.
Debris baskets (sold separately) are available in stainless steel material or HDPE material.
Actual Basin Dimensions: 12"W x 24"L x 24"H

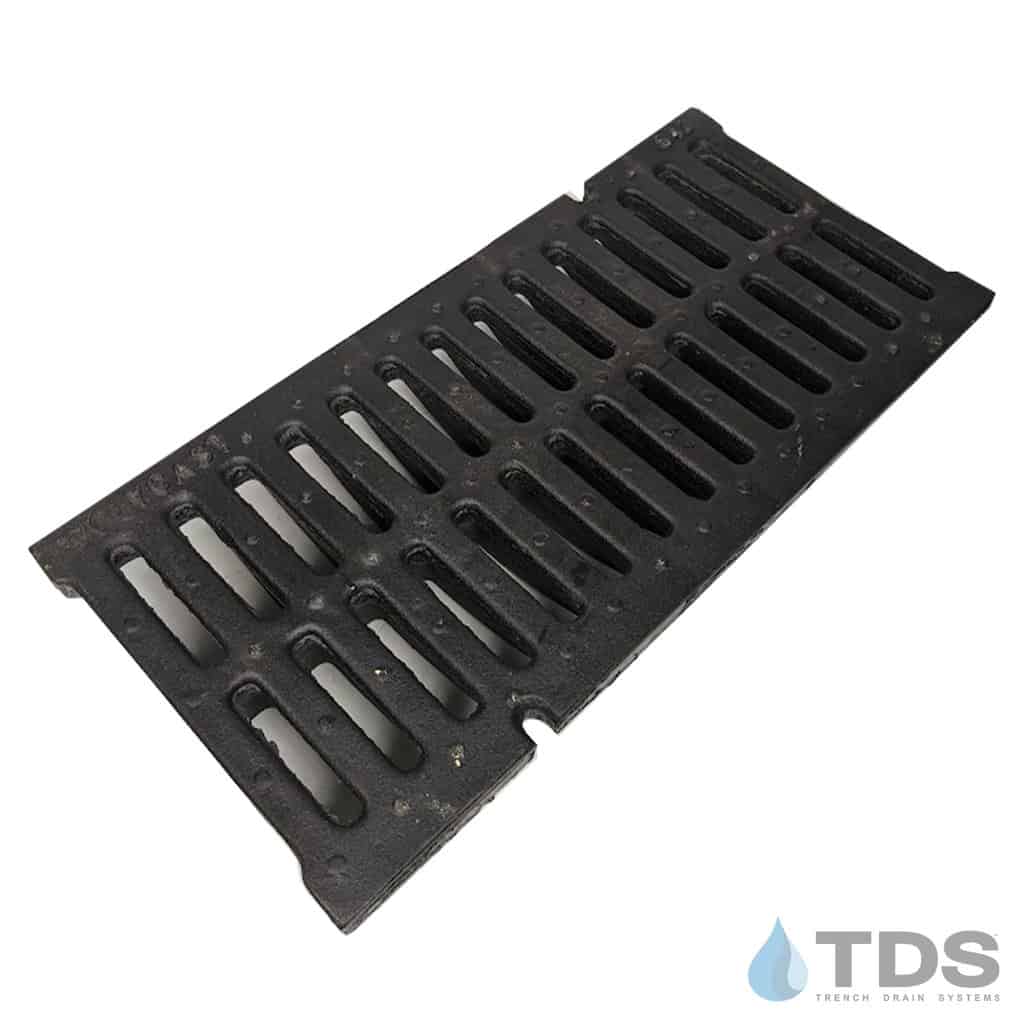

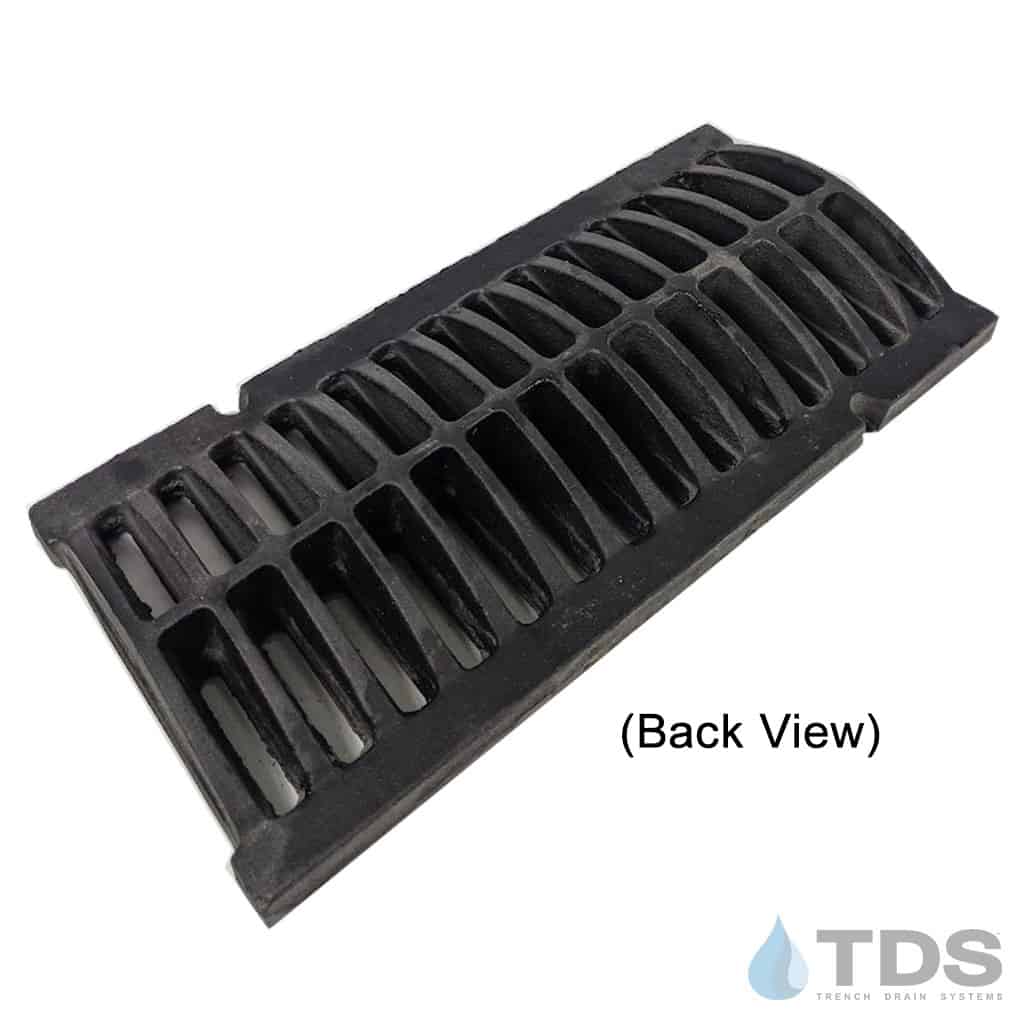

Grating:
Specification Sheet for DG0643
Catch Basin Kit Includes:
