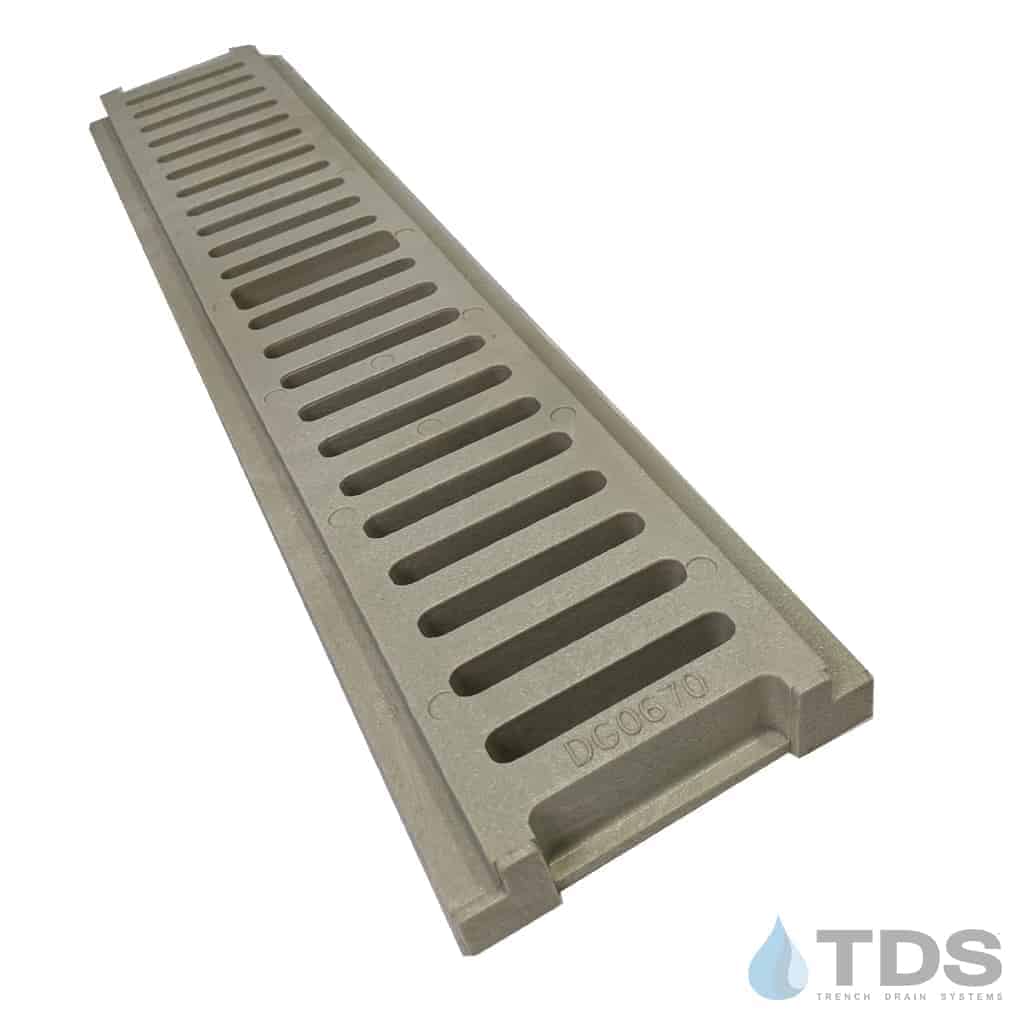

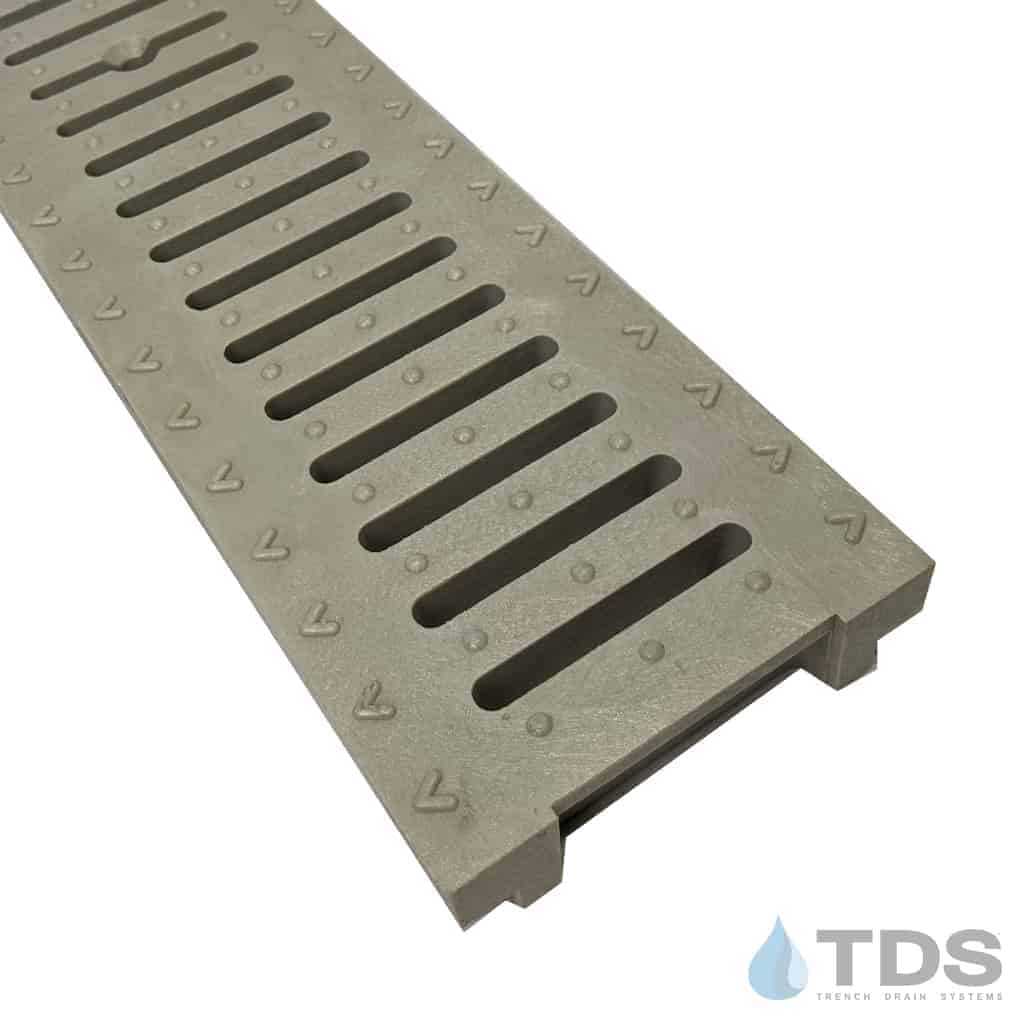

POLYCAST DG0670G Class A Slotted DuraGuard HDPE 6"x24"(Nominal) Grate - Gray

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish: Plastic/HDPE - Gray

Manufacturer: Hubbell - POLYCAST

System: POLYCAST 500 and POLYCAST 600

Grate Load Class: Class A

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester and Polymer Concrete - Vinyl Ester

Channel Frame / Edging: Frame - None, Edging - None, Edging - Galvanized, and Edging - Stainless

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

POLYCAST® 6″x24″ ADA Compliant Slotted HDPE Grate
Large project? Request a Quote

POLYCAST® DuraGuard Polyethylene slotted grate for the stainless SS600 Series and the POLYCAST® 600 Series and 700 Series trench drain systems by Hubbell. Provides excellent chemical resistance and durability not recommended for use with POLYCAST® 500 system as it will partially block flow within the channel.

Color: Grey

Actual Dimensions: 5-3/16" x 23-13/16"

POLYCAST DG0670 Specification Sheet

Locking device not included - For POLYCAST® 600 locking device, CLICK HERE.
