TDS DG0669H Class D Stainless Steel Bar 6" x 24" Grate for POLYCAST®

TDS DG0669H Class D Stainless Steel Bar 6" x 24" Grate for POLYCAST®

  • SS Bar grate DG0699 Polycast
1 1

Drainage Kits

DG0669H

Stainless Bar Grate - HD Forklift Rated. Large project? Request a Quote
$469.44 USD
$469.44 USD
Sale Sold out
Option 1
View full details

Additional Information

  • Grate Width: 5.25"
  • Grate Thickness: 0.75"
  • Weight: 9.0 lb
  • Product Type: Channel Grate, Grate
  • Grate Material / Color / Finish: Stainless Steel 304
  • Manufacturer: Hubbell - POLYCAST, TDS (Trench Drain Systems)
  • System: POLYCAST 600, POLYCAST 700
  • Grate Load Class: Class D
  • Grate Pattern: BAR
  • Grate Pattern Style: SLOTTED
  • Channel Material: Polymer Concrete - Polyester, Polymer Concrete - Vinyl Ester
  • Channel Frame / Edging: Frame - None, Edging - None, Edging - Galvanized, Edging - Stainless, Frame - Ductile Iron, Frame - HDPE
  • Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, Transportation

Description

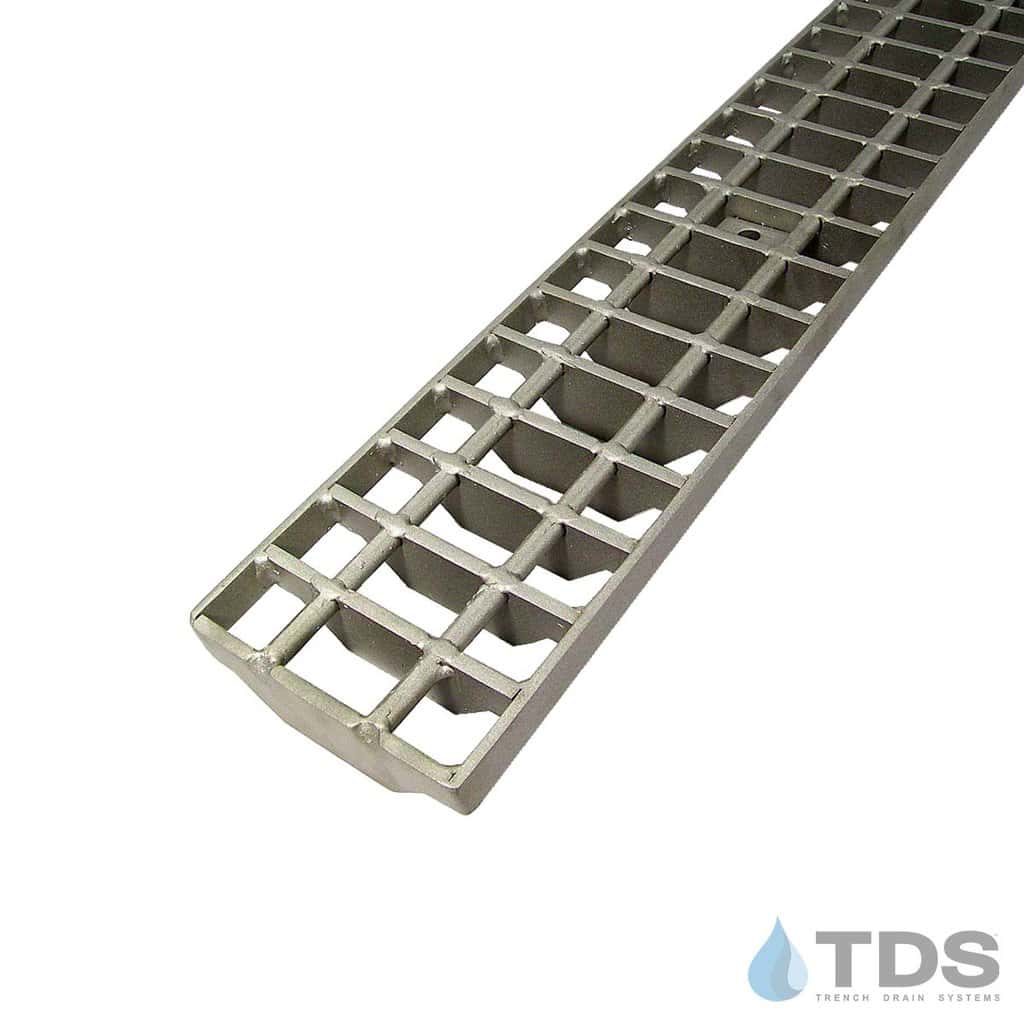

Stainless Bar Grate – HD Forklift Rated.
Large project? Request a Quote

DG0669H - Stainless steel bar grate designed to handle fork truck traffic.  Heavy Duty welded 1/4" 304 stainless steel bar stock with 1-1/8" openings. Ideal for chemical plants, breweries, wineries, and food warehouses.  Fits TDS SS600, POLYCAST®  600, 700 series polymer concrete trench drain and others.

Locking device not included - POLYCAST® 600, see part number DA0642BS
