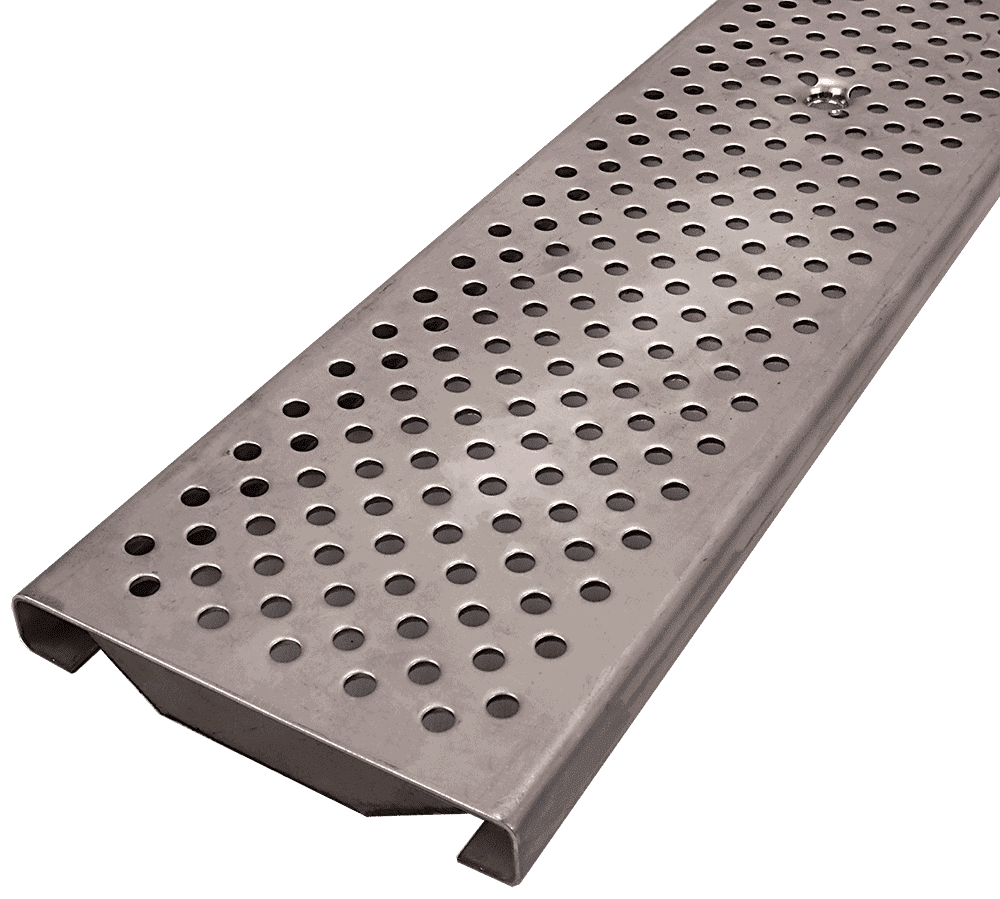

POLYCAST DG0657R ADA Perf Reinforced Stainless Grate 6"x48" (Nominal) Class C

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish: Stainless Steel 304

Manufacturer: Hubbell - POLYCAST

System: POLYCAST 500, POLYCAST 600, and POLYCAST 700

Grate Load Class: Class C

Grate Pattern: PERFORATED

Grate Pattern Style: PERFORATED

Channel Material: Polymer Concrete - Polyester and Polymer Concrete - Vinyl Ester

Channel Frame / Edging: Frame - None, Edging - None, Edging - Galvanized, Edging - Stainless, Frame - Ductile Iron, and Frame - HDPE

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, Sports Complex - Recreational, and Transportation

DG0657R Stainless Steel perforated reinforced grates are ADA compliant and heel-proof. Fits SS600 series, POLYCAST® 500, 600 and 700 Series trench drains and holes are 1/4". Two tapered center holes for flathead hold-down device DA0642S (not included). Great for a brewery or winery processing room.

Actual Dimensions: 5.12" x 47.81" x 0.75"

Specification Sheet for DG0657R

Locking devices not included – For POLYCAST® 600 locking device, click here.
