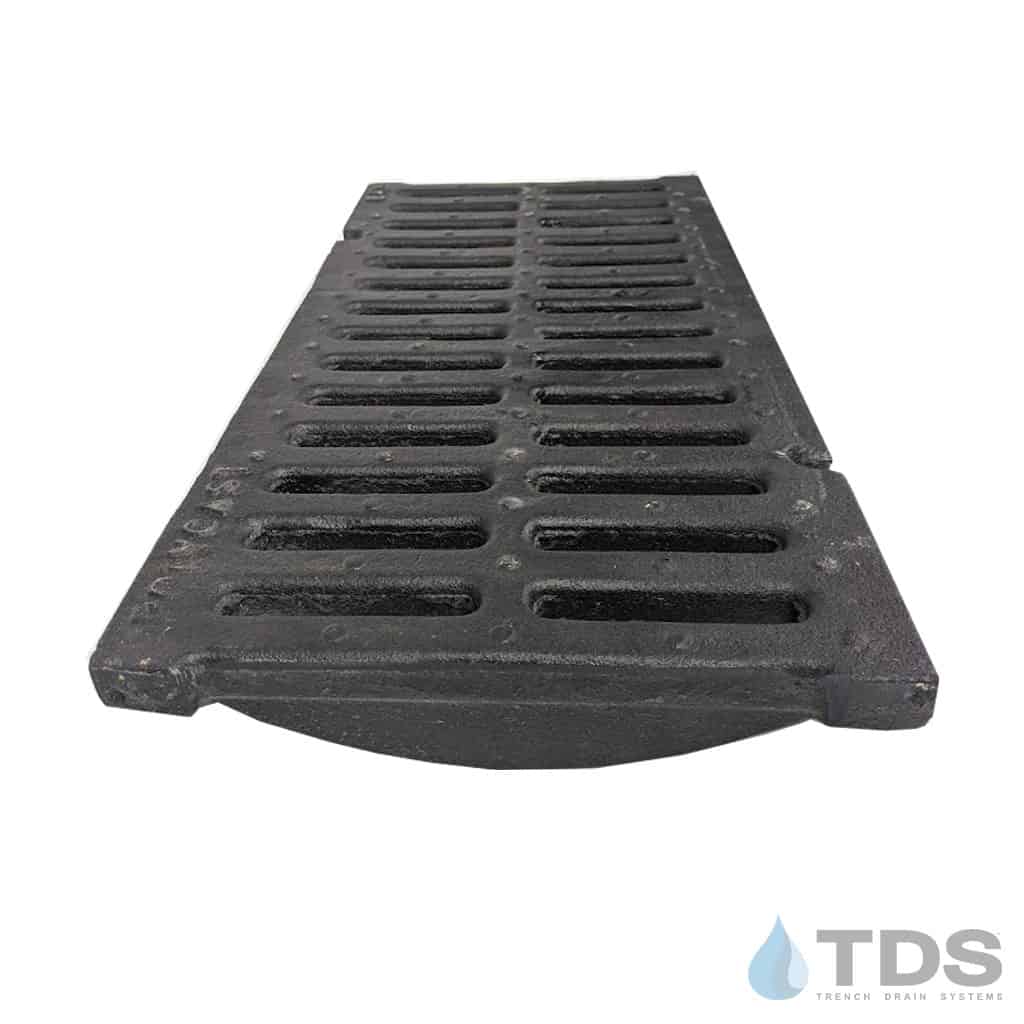

POLYCAST® DG0643 Slotted Gray Iron Catch Basin Grate | Load Class E

Grate Width: 10.75"

Grate Thickness: 1.125"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: Hubbell - POLYCAST

System: POLYCAST 500, POLYCAST 600, and POLYCAST 700

Grate Load Class: Class E

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Frame - Ductile Iron

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, Sports Complex - Recreational, and Transportation

This heavy-duty slotted ductile iron grate is for use with POLYCAST®651/751 12-inch Catch Basins. Made in the USA.

It has two (2) bolt-down holes (bolts not included).

Actual Dimensions: 10-3/4" x 22-3/4" x 1-1/8" (not including the reinforcement fins on the bottom of the grate)

Open Area: 32 sq inches per linear foot. Slot Size: 5/8" wide

Meets Load Class E rating requirements, ideal for any high-traffic, heavy load applications such as:

• Highways
• Airport Hangers & Terminals
• Ports & Shipyards
• Fire Stations
• Military Bases
• and much more.
