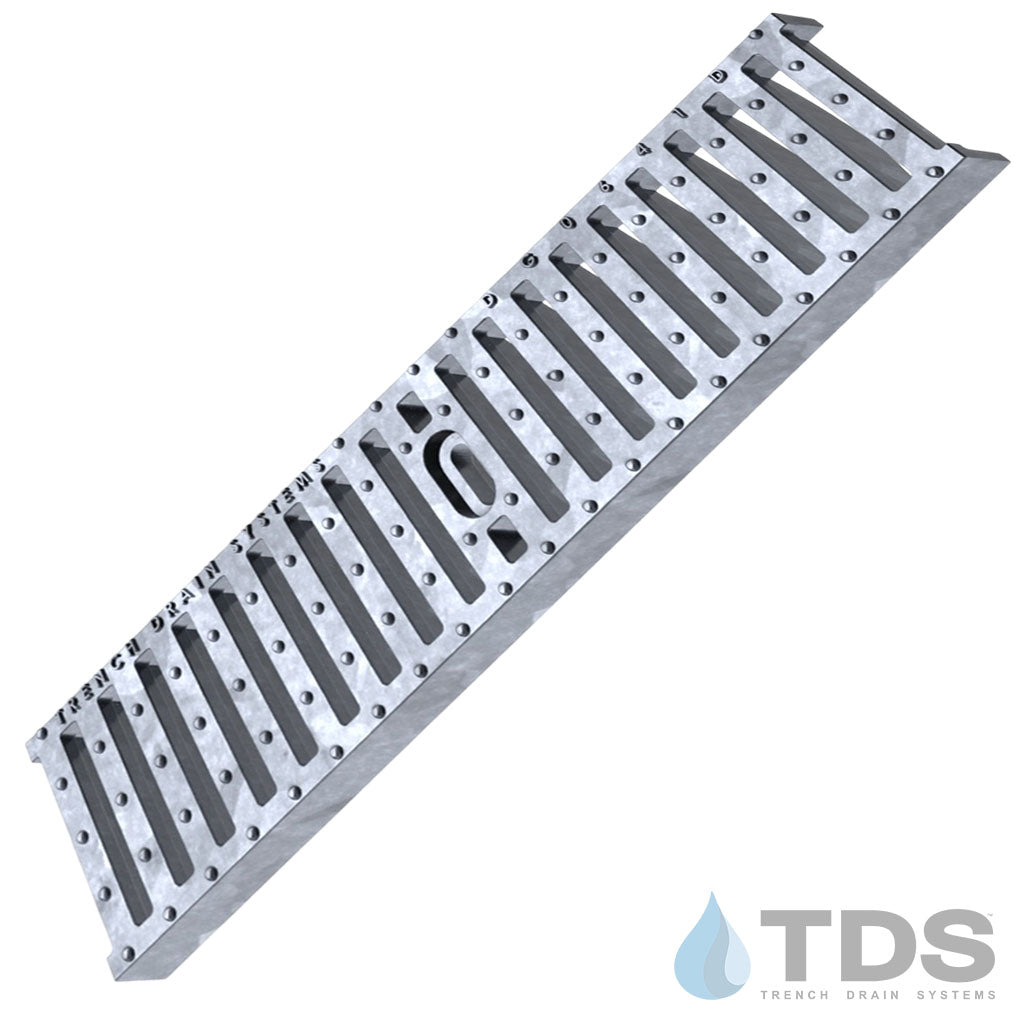

POLYCAST DG0641D-G Slotted Ductile Iron - Galvanized Grate 6" x 24" (Nominal)

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw and Galvanized Steel

Manufacturer: Hubbell - POLYCAST and TDS (Trench Drain Systems)

System: POLYCAST 500, POLYCAST 600, and POLYCAST 700

Grate Load Class: Class D

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester and Polymer Concrete - Vinyl Ester

Channel Frame / Edging: Frame - None, Edging - None, Edging - Galvanized, Edging - Stainless, Frame - Ductile Iron, and Frame - HDPE

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, Sports Complex - Recreational, and Transportation

The DG0641D - Heavy-duty ductile iron slotted trench drain grate is finished with a durable galvanized coating for long-lasting performance in high-traffic drainage applications. It is compatible with POLYCAST® 500, 600, and 700 Series polymer concrete trench drain systems by Hubbell Inc.

• Slot size: 0.5" x 4.3"
• Grate Actual Dimensions: 5.19" W x 23.88" L x .75" H

• Load Class D
• Load Class E - when mounted in Duraguard HDPE frame
• Load Class F - when mounted in Hardnose iron frame

Specification Sheet for DG0641D-G

Locking device not included. Click below on the system for the related locking device:

POLYCAST® 600 locking devices for DG0641D
POLYCAST® 700 locking devices for DG0641D
