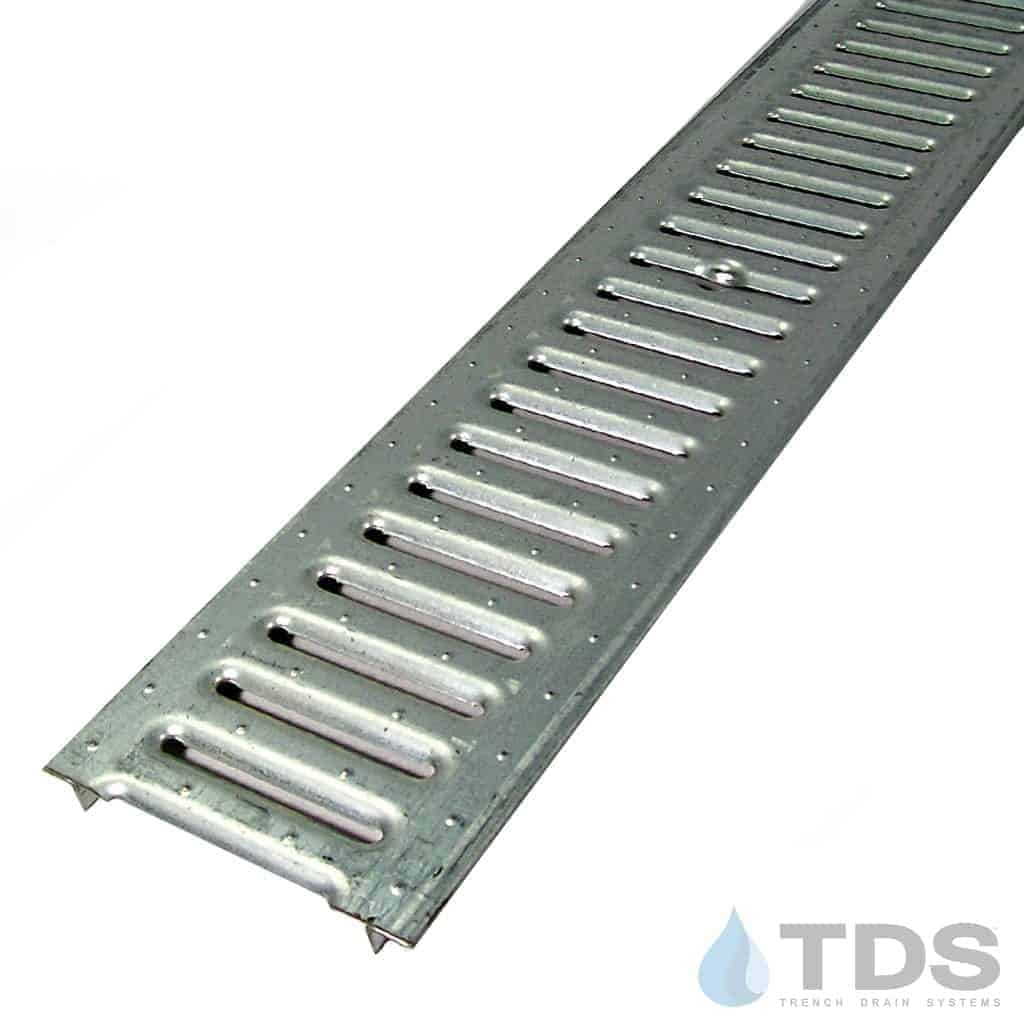

POLYCAST DG0441 Class A Slotted Galvanized 5" x 24" Grate

POLYCAST DG0441 Class A Slotted Galvanized 5" x 24" Grate

  • Polycast-DG0442-galv-steel-grate-4ft-TDSdrains
1 2

Drainage Kits

DG0441

Class A galvanized grate for light duty use. Large project? Request a Quote
$85.87 USD
$0.00 USD $85.87 USD
Sale Sold out
View full details

Additional Information

  • Grate Width: 5.18"
  • Grate Thickness: 0.50" with T-Top
  • Product Type: Channel Grate, Grate
  • Grate Material / Color / Finish: Galvanized Steel
  • Manufacturer: Polycast
  • System: Polycast 400
  • Grate Load Class: A
  • Grate Pattern: Slotted
  • Grate Pattern Style: Slotted
  • Channel Material: Polymer Concrete - Polyester
  • Frame/Edging: No Frame, No Edging
  • Application: General Purpose Drainage - Exterior, Residential, Sport Complex - Recreational

Description

Class A galvanized grate for light duty use.
Large project? Request a Quote

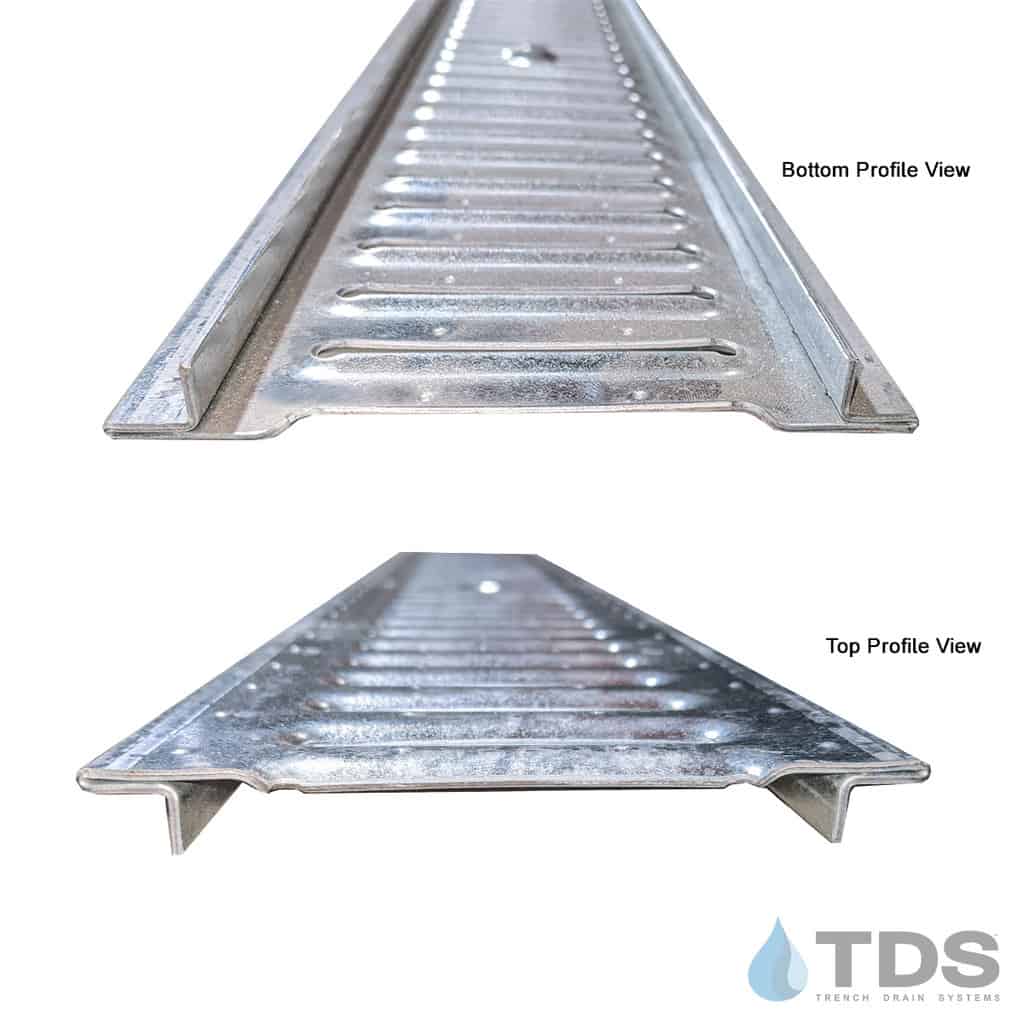

Slotted Galvanized grates from Hubbell.  Designed to fit the POLYCAST® 400 channel. The outside dimension of grates is 5-3/16" while the inside area that sits in the channel measures 4-1/4". Meets Class A loading requirements for tennis courts, swimming pools, walkways, patios, etc.

Locking device is not included, click here to add.

DG0441 Specification Sheet
