TDS-POLYCAST DA0642SH Hold-Down Device for 700 Series Stainless Steel and HDPE Grates

Each locking device includes:
Flat Head Screw
Lock Bar

Large project? Request a Quote

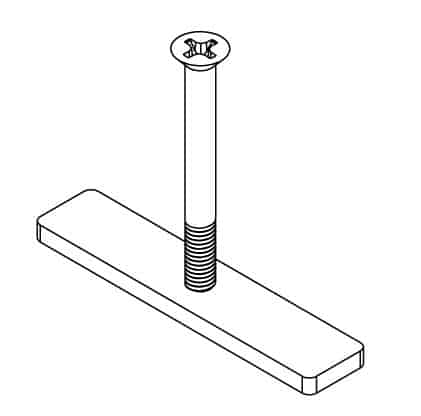

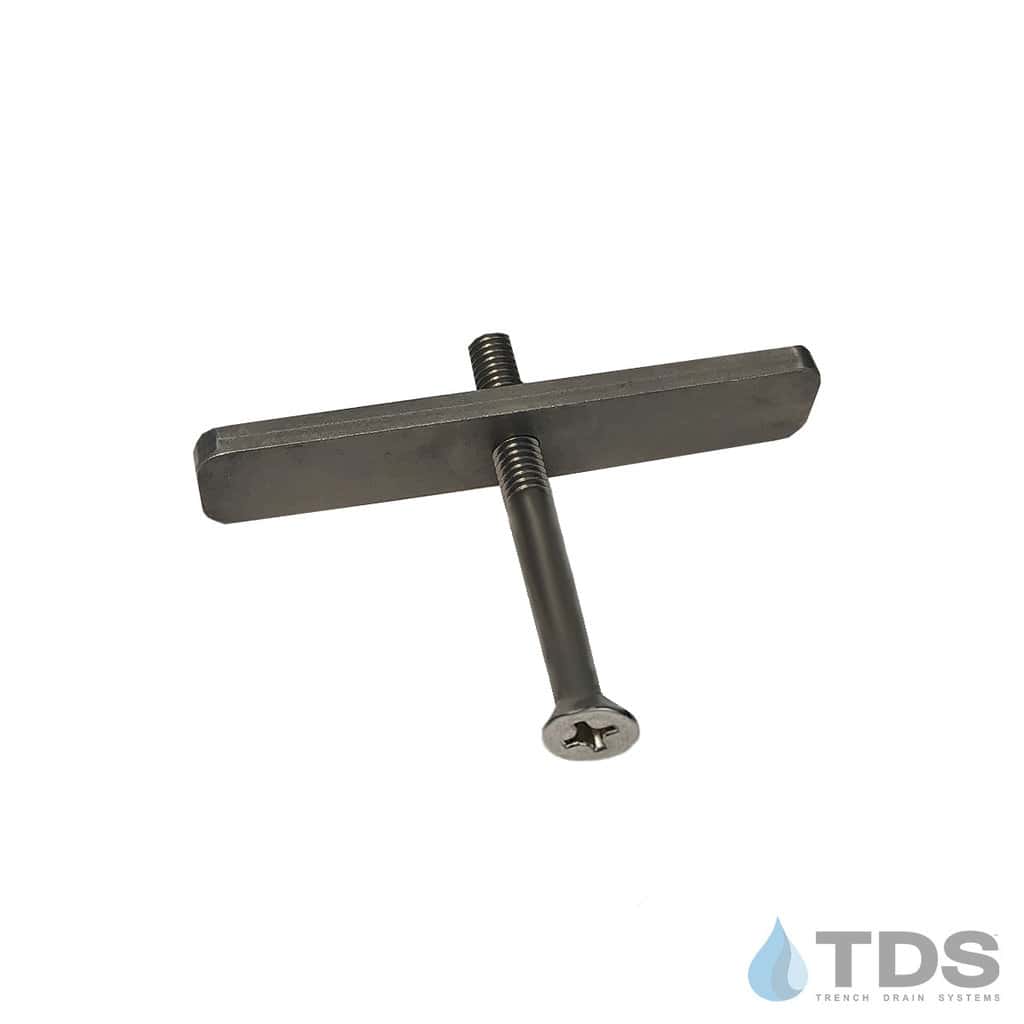

Locking device for POLYCAST 700 series with flat head screw for stainless steel or HDPE grates. Part# DA0642SH

Each locking device includes:
3/8-16 X 4" Flat Head Screw
Lock Bar that measures 1" x 4-3/4"

Designed to fit: POLYCAST 700

• DG0647RH 24", DG0647R 48" Stainless steel slotted reinforced grate
• DG0655RH 24", DG0655R 48" Stainless steel wedge wire reinforced grate
• DG0657RH 24", DG0657R 48" Stainless steel perforated reinforced grate
• DG0670 HDPE 24" Slotted black grate
• DG0670G HDPE 24" Slotted gray grate
• DG0675 HDPE Transverse slotted black grate
• DG0675G HPDE Transverse slotted gray grate

Grates need to be locked in place in situations where there's a possibility they will be driven over, preventing the grates from hopping. It also prevents debris from working in between the grates and channels which can ultimately damage the grates. This helps to provide system integrity when used appropriately.

Specification sheet for DA0642SH
