POLYCAST 700 Series Kit with DG0641D Slotted Ductile Iron Grate and HDPE Frame

POLYCAST 700 Series Kit with DG0641D Slotted Ductile Iron Grate and HDPE Frame

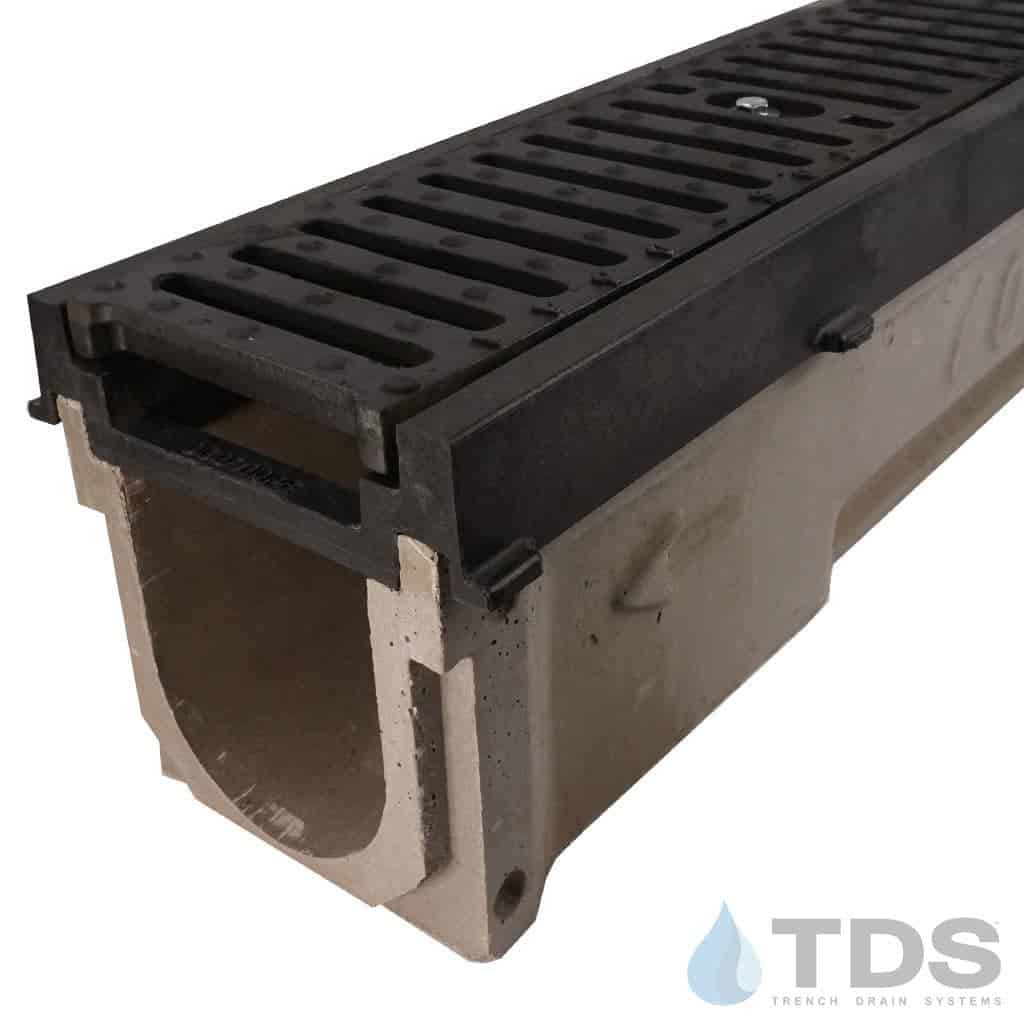

  • POLY700-PE-641D-TDSdrains HPDE frame ductile iron slotted grate polymer concrete channel Polycast
1 1

Drainage Kits

PCK7-DG0641D-PF-04

Each POLYCAST® 700 Kit Includes:

  • 48" POLYCAST®  pre-sloped channel (1 for each 4' of kit ordered) Non-sloped runs available by requesting all neutral channels
  • 24" Ductile iron slotted grates (2 per channel)
  • Grate Hold-down devices (1 per grate)
  • Installation Chairs
  • End Outlet (fits 4" S&D pipe)
  • End Cap
  • Installation instructions
$495.56 USD
$495.56 USD
Sale Sold out
Kit Length
Channel Type
View full details

PRODUCT DOCUMENTATION

  • ADDITIONAL INFORMATION

    Grate Width: 5.25"

    Grate Thickness: 0.75"

    Grate Material / Color / Finish: Ductile/Cast Iron - Raw

    Manufacturer: Hubbell - POLYCAST

    System: POLYCAST 700

    Grate Load Class: Class D

    Grate Pattern: SLOTTED

    Grate Pattern Style: SLOTTED

    Channel Material: Polymer Concrete - Polyester

    Channel Frame / Edging: Frame - HDPE

    Application: General Purpose Drainage - Interior, General Purpose Drainage - External, and Transportation

  • DESCRIPTION

    The POLYCAST 700 Series is a polymer concrete channel that has a built-in .65 percent slope that allows the system to achieve flow rates of 470 GPM. The channel depths and dimensions match the POLYCAST 600 with the exception of frame that is included to allow for increased weight. The optional stainless steel edge protection gives a very clean look to your installation and will protect the top edge of the channel from chipping. POLYCAST® 700 Series installation chairs tighten the joints between channels while aligning and leveling the drainage run. Each installation chair is secured to the ground (using your own rebar), ensuring that the channels will not float during the concrete pour.

    For heavy trucks or fork truck traffic, we recommend adding the ductile iron frames to your kit.

    Channel Depths/Dimensions
    Corrosion Resistance Details
    Engineering Specifications
    Installation Instructions

    Grating:

    • Ductile iron slotted grates - (Class D Load Rating)
    • Open Surface Area: 19.8 sq. inches/Lin. Ft.
    • 40 GPM
    • Color: Black

    Each POLYCAST® 700 Kit Includes:

    • 48" POLYCAST® pre-sloped channel (1 for each 4' of kit ordered)
      Non-sloped runs available by requesting all neutral channels
    • 24" Ductile iron slotted grates (2 per channel)
    • Grate Hold-down devices (1 per grate)
    • Installation Chairs
    • End Outlet (fits 4" S&D pipe)
    • End Cap
    • Installation instructions

    Also available in Vinyl Ester Channels, request your quote now.

    Want to learn more about this system? Click Here for more information.

    Layout Info:
    Before we can ship your Pre-sloped drain order, a layout will need to be approved by you. Once we receive your order, we will contact you via email with a layout drawing showing what channels you will receive and the order they need to be installed. We will need a confirmation email from you that you accept the layout. If you choose all neutral channels, please note this in the ‘Order Notes’ during checkout. A layout is not necessary with neutral channels.

    DrainageKits.com reserves the right to choose the channel depth of the channels you receive. If you have certain channels or a channel depth in mind, please note this in Order Notes at checkout. We will do our best to accommodate you if the channels are in stock.PF-40
