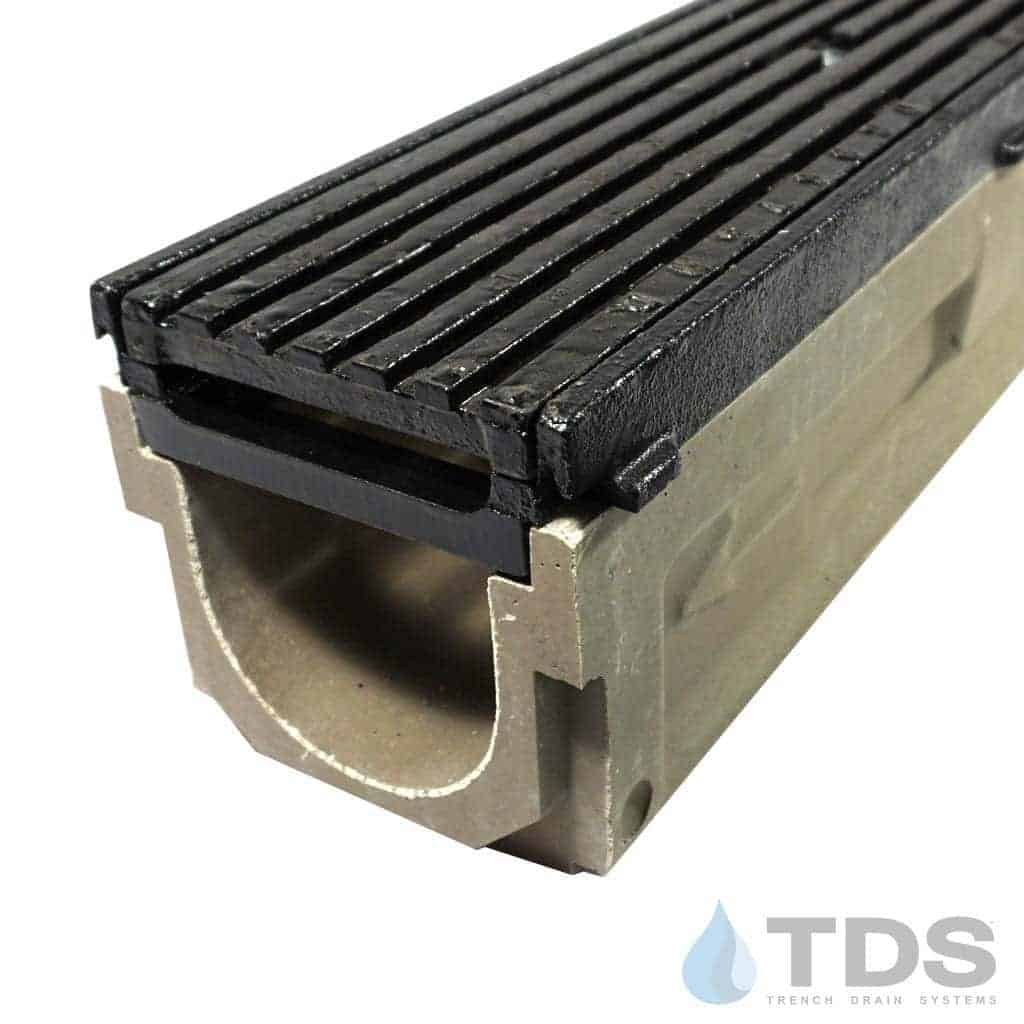

POLYCAST 700 Series Kit w/ DG0675HD ADA Transverse Slotted Ductile Iron Grate & Frame

POLYCAST 700 Series Kit w/ DG0675HD ADA Transverse Slotted Ductile Iron Grate & Frame

Skip to product information
1 of 1

Drainage Kits

SKU:PCK7-DG0675HD-CF-EXT2

Each Kit Includes:

  • 48" POLYCAST 600 Pre-sloped channel (1 for each 4' of kit ordered) Non-sloped runs available by requesting all neutral channels
  • 24" Ductile iron Frame (2 per channel)
  • 24" Ductile iron ADA grates (2 per channel)
  • Grate Hold-down devices (1 per grate)
  • Installation Chairs
  • End Outlet (fits 4" S&D pipe)
  • End Cap
  • Installation instructions
Regular price $297.76 USD
Regular price $0.00 USD Sale price $297.76 USD
Sale Sold out
Kit Length
Channel Type
View full details

Additional Information

  • Grate Width: 5.25"
  • Grate Thickness: 0.75"
  • Product Type: Channel Kit, Kit
  • Grate Material / Color / Finish: Ductile/Cast Iron - Raw
  • Manufacturer: Polycast
  • System: Polycast 700
  • Grate Load Class: D
  • Grate Pattern: Transverse Slotted
  • Grate Pattern Style: Slotted
  • Channel Material: Polymer Concrete - Polyester
  • Frame/Edging: Ductile Iron
  • Application: General Purpose Drainage - Interior, General Purpose Drainage - Exterior, Transportation

Description

Each Kit Includes:

  • 48″ POLYCAST 600 Pre-sloped channel (1 for each 4′ of kit ordered)
    Non-sloped runs available by requesting all neutral channels
  • 24″ Ductile iron Frame (2 per channel)
  • 24″ Ductile iron ADA grates (2 per channel)
  • Grate Hold-down devices (1 per grate)
  • Installation Chairs
  • End Outlet (fits 4″ S&D pipe)
  • End Cap
  • Installation instructions

POLYCAST 700 Series is a polymer concrete channel that has a built-in .65 percent slope that allows the system to achieve flow rates of 470 GPM.  The installation chairs tighten the joints between channels while aligning and leveling the drainage run.  Each installation chair is secured to the ground (using your own rebar), ensuring that the channels will not float during the concrete pour.

Grating:

  • Transverse Slotted ductile iron ADA Compliant grates - (Class E Load Rating with Frame)
  • Open Surface Area: 19.8 sq. inches/Lin. Ft.
  • 32 sq.in./Lin ft. (26%)
  • Color: Black

Each Kit Includes:

  • 48" POLYCAST 600 Pre-sloped channel (1 for each 4' of kit ordered)
    Non-sloped runs available by requesting all neutral channels
  • 24" Ductile iron Frame (2 per channel)
  • 24" Ductile iron ADA grates (2 per channel)
  • Grate Hold-down devices (1 per grate)
  • Installation Chairs
  • End Outlet (fits 4" S&D pipe)
  • End Cap
  • Installation instructions

Also available in Vinyl Ester Channels, request your quote now.

Want to learn more about this system? Click Here for more information.

Made in America
