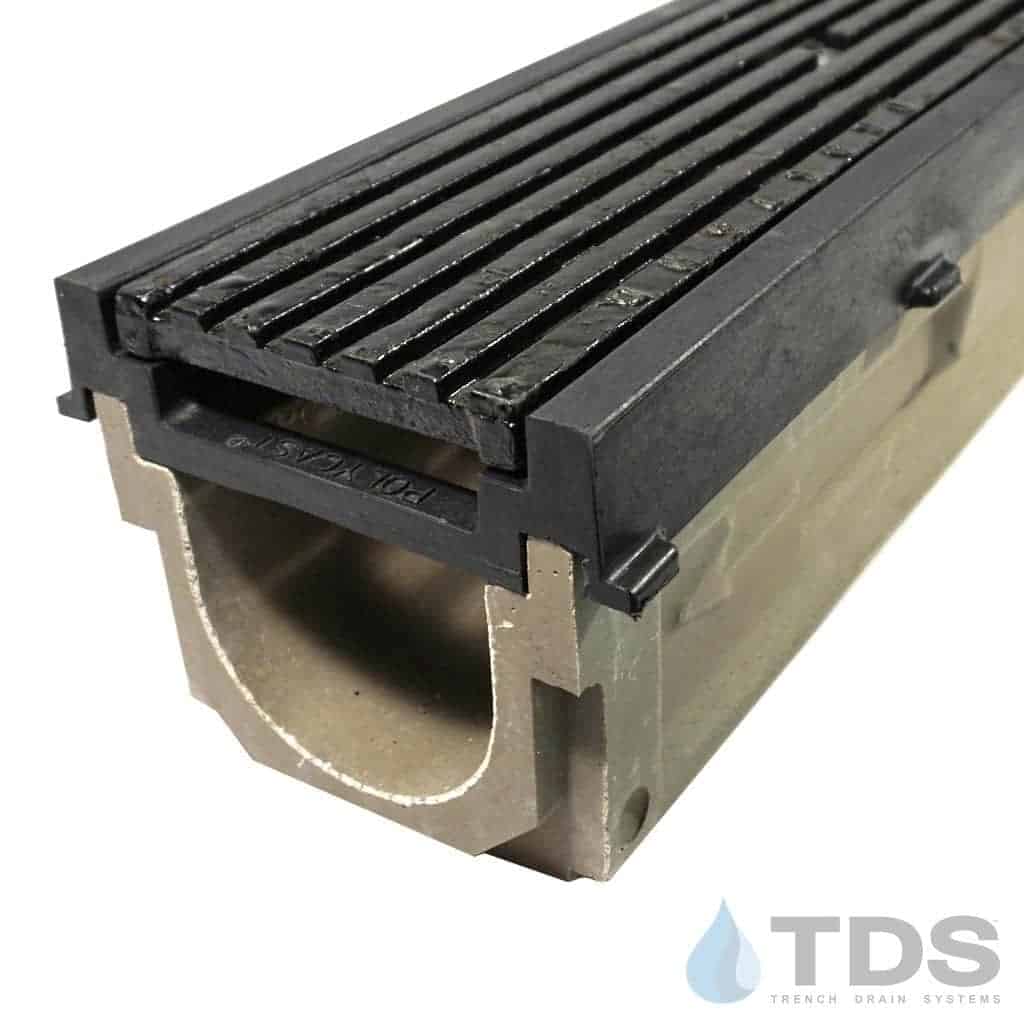

POLYCAST 700 Series Kit w/ DG0675HD ADA Transverse Slot Ductile Iron Grate & HDPE Frame

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: Hubbell - POLYCAST

System: POLYCAST 700

Grate Load Class: Class D

Grate Pattern: TRANSVERSE SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Frame - HDPE

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Transportation

POLYCAST 700 Series is a polymer concrete channel that has a built-in .65 percent slope that allows the system to achieve flow rates of 470 GPM. The channel depths and dimensions match the POLYCAST 600 with the exception of the frame that is included to allow for increased weight distribution. The installation chairs tighten the joints between channels while aligning and leveling the drainage run.  Each installation chair is secured to the ground (using your own rebar), ensuring that the channels will not float during the concrete pour.

Channel Depths/Dimensions
Corrosion Resistance Details
Engineering Specifications
Installation Instructions

Grating:

• Transverse Slotted ductile iron ADA Compliant grates - (Class D Load Rating with Frame)
• Open Surface Area: 19.8 sq. inches/Lin. Ft.
• 32 sq.in./Lin ft. (26%)
• Color: Black

Each Kit Includes:

• 48" POLYCAST 600 Pre-sloped channel (1 for each 4' of kit ordered)
  Non-sloped runs available by requesting all neutral channels
• 24" HDPE Frame (2 per channel)
• 24" Ductile iron ADA grates (2 per channel)
• Grate Hold-down devices (1 per grate)
• Installation Chairs
• End Outlet (fits 4" S&D pipe)
• End Cap
• Installation instructions

Also available in Vinyl Ester Channels, request your quote now.

Want to learn more about this system? Click Here for more information.
