POLYCAST® 700 Kit w/ DG0692 Patriot Ductile Iron Grate & Ductile Frame

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: Hubbell - POLYCAST and TDS (Trench Drain Systems)

System: POLYCAST 700

Grate Load Class: Class D

Grate Pattern: PATRIOT

Grate Pattern Style: PATRIOTIC

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Frame - Ductile Iron

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Transportation

Large Project? Request Quote.

POLYCAST® 700 Series is a polymer concrete channel that has a built-in .65 percent slope that allows the system to achieve flow rates of 470 GPM. The channel depths and dimensions match the POLYCAST 600 with the exception of the frame that is included to allow for increased weight distribution. The installation chairs tighten the joints between channels while aligning and leveling the drainage run. Each installation chair is secured to the ground (using your own rebar), ensuring that the channels will not float during the concrete pour.

Channel Depths/Dimensions
Corrosion Resistance Details
Engineering Specifications
Installation Instructions

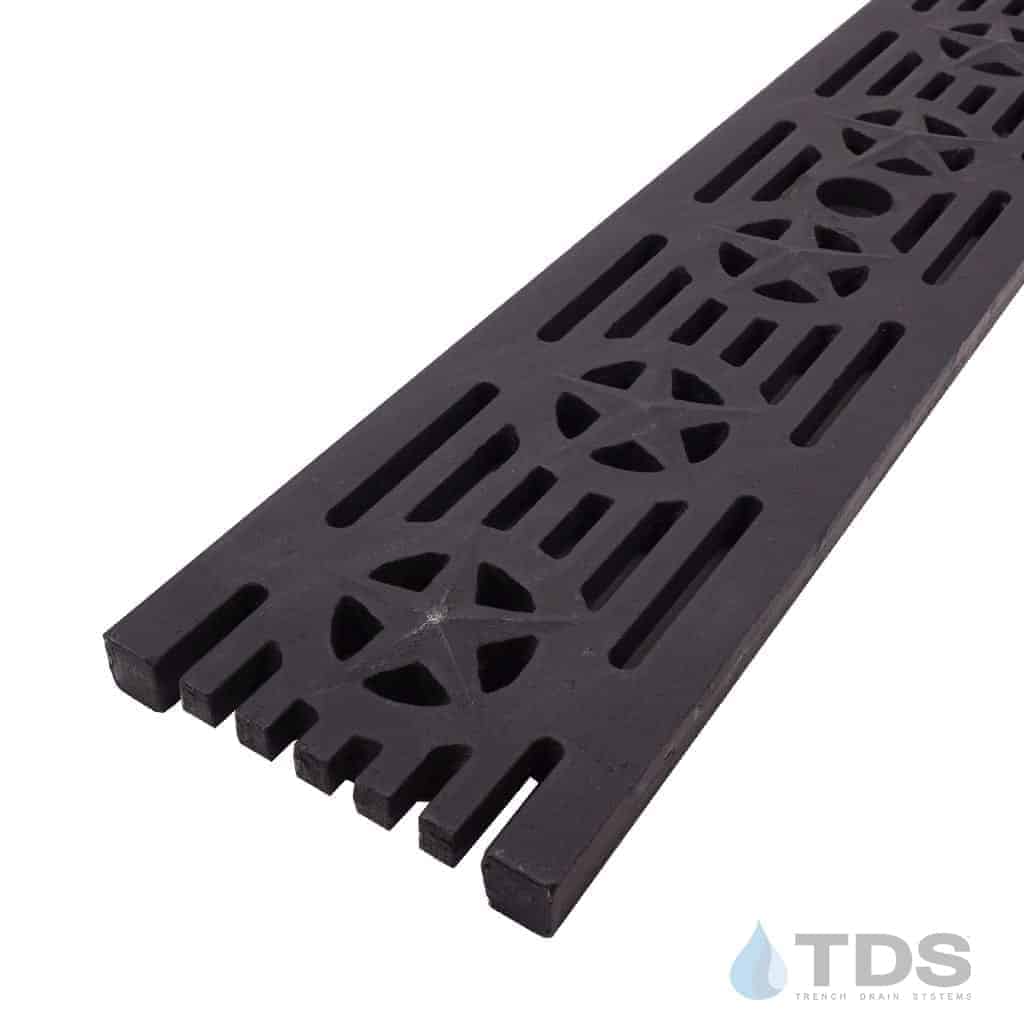

Grating:

• Decorative ductile iron Patriot grates – (Class C Load Rating/ Class D with 700 Frames)
• Open Surface Area: 21%
• ADA Grate
• Color: Black

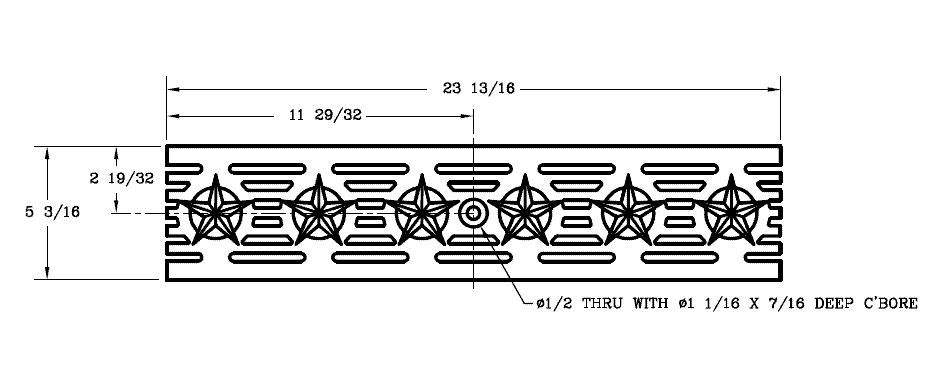

• DG0692 Specification Sheet

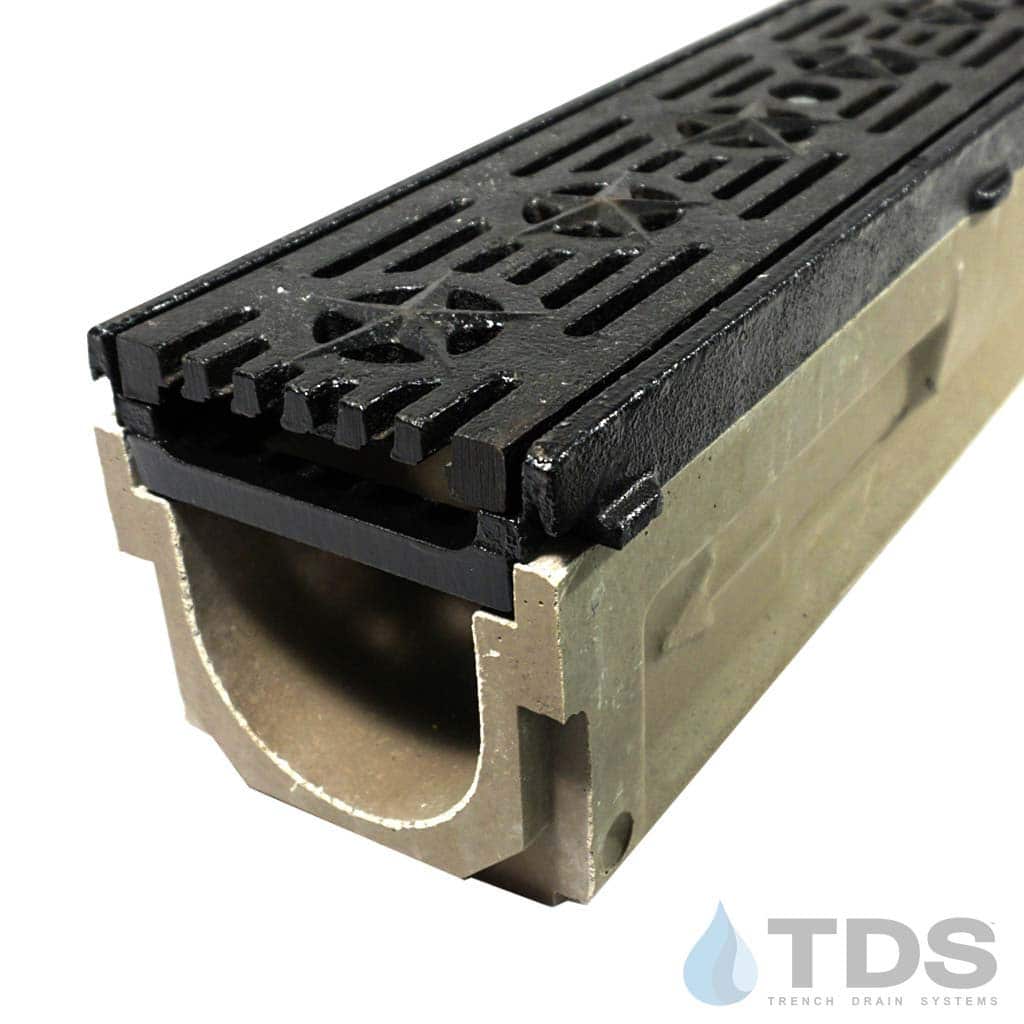

Each Kit Includes:

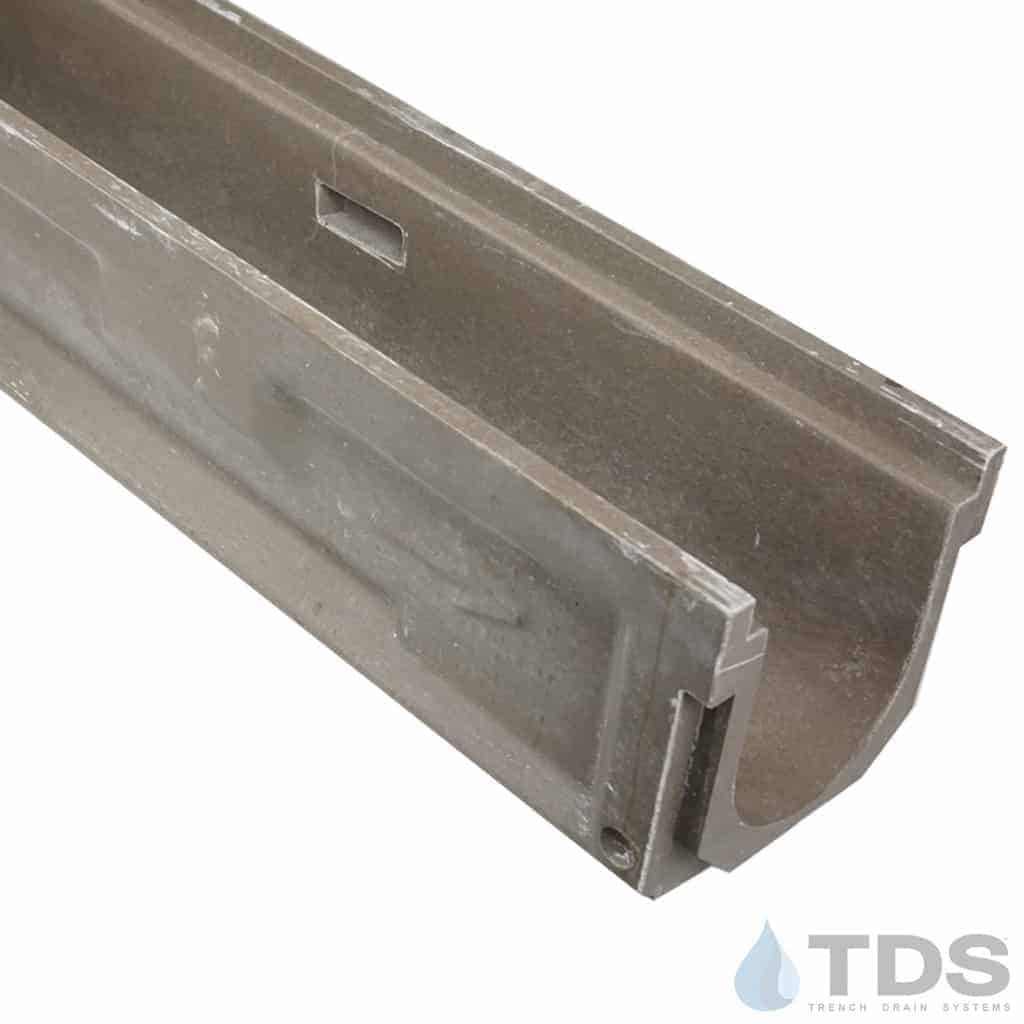

• 48" POLYCAST 600 Pre-sloped channel (1 for each 4' of kit ordered)
  Non-sloped runs available by requesting all neutral channels
• 24" Ductile iron Patriot grates (2 per channel) (Made in the USA)
• Grate Hold-down devices (1 per grate)

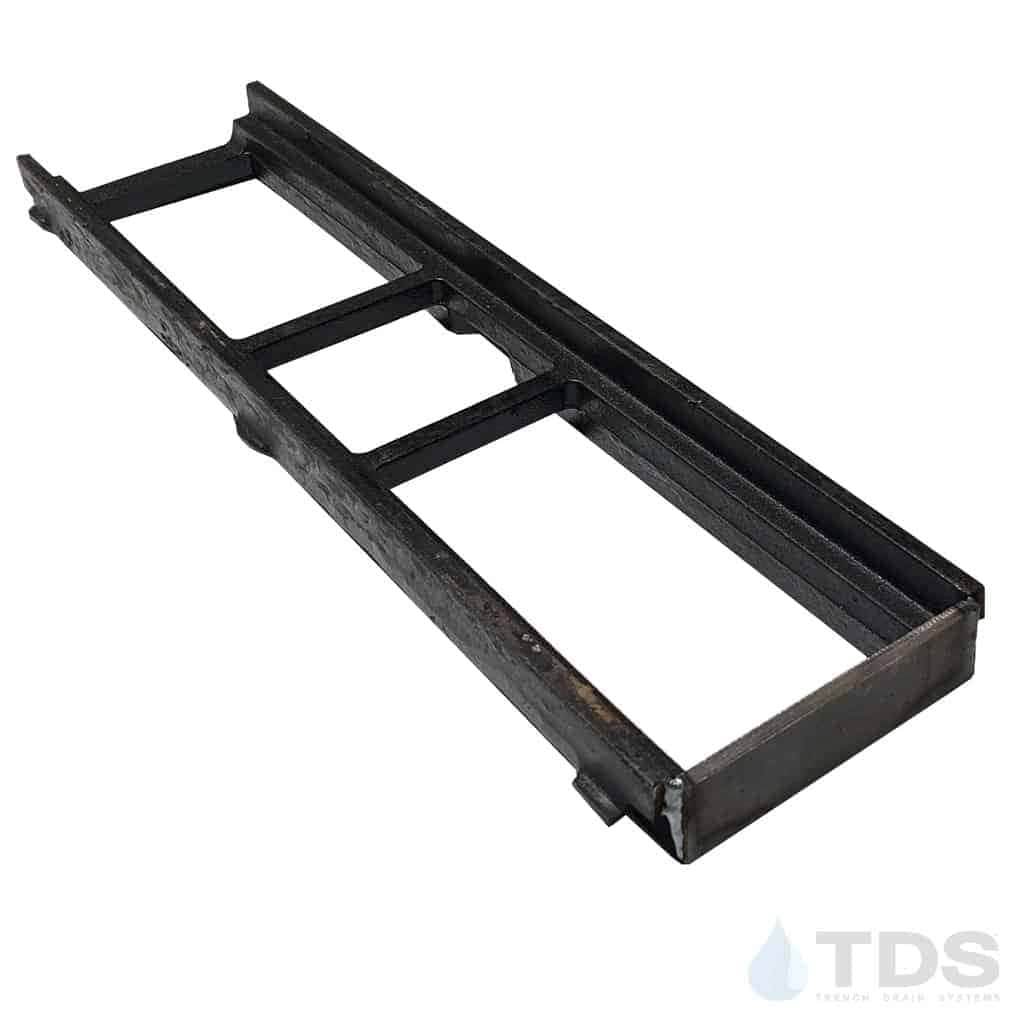

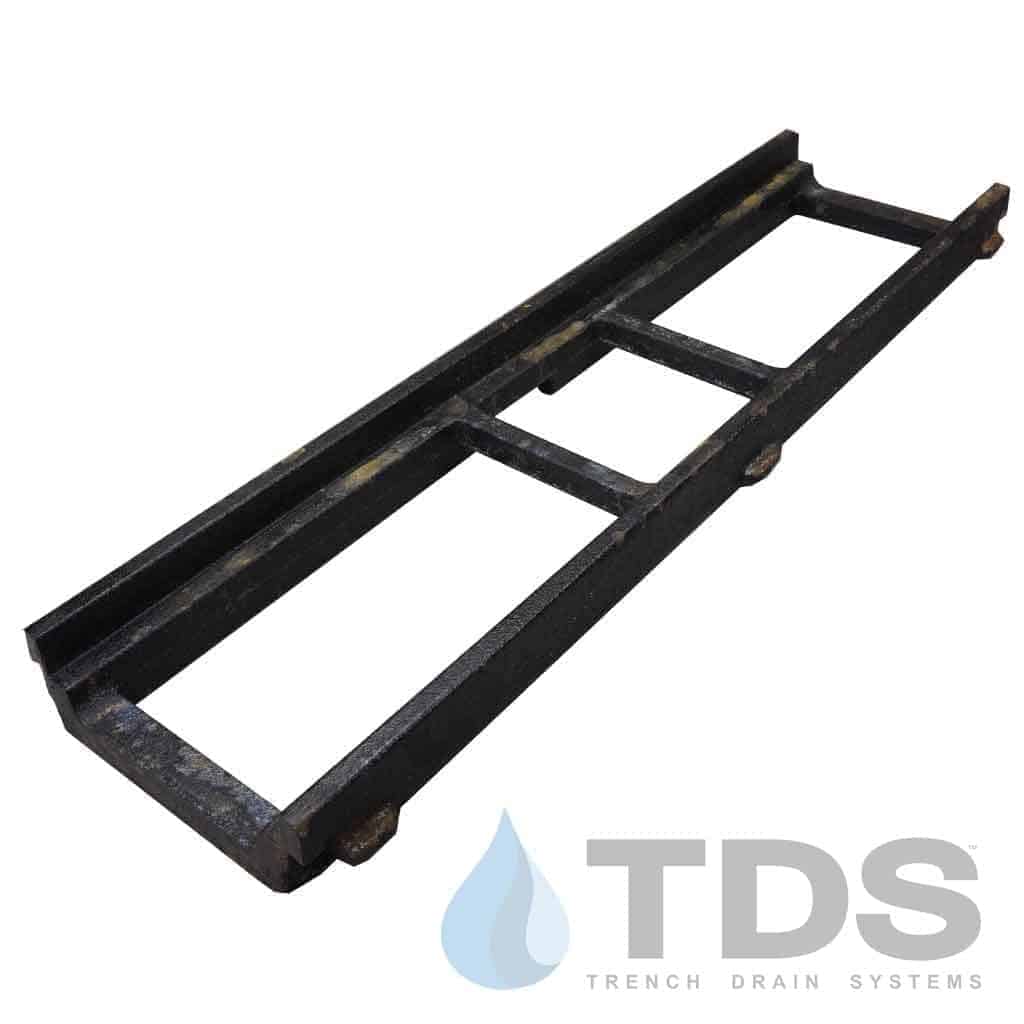

• Frames
• Installation Chairs
• End Outlet (fits 4" S&D pipe)
• End Cap
• Installation instructions

Also available in Vinyl Ester Channels, request your quote now.

Want to learn more about this system? Click Here for more information.

Layout Info:
Please review the inlet/outlet depths shown for each system length. If you have certain channels, a channel depth requirement, or a large project, we invite you to request a quote.
