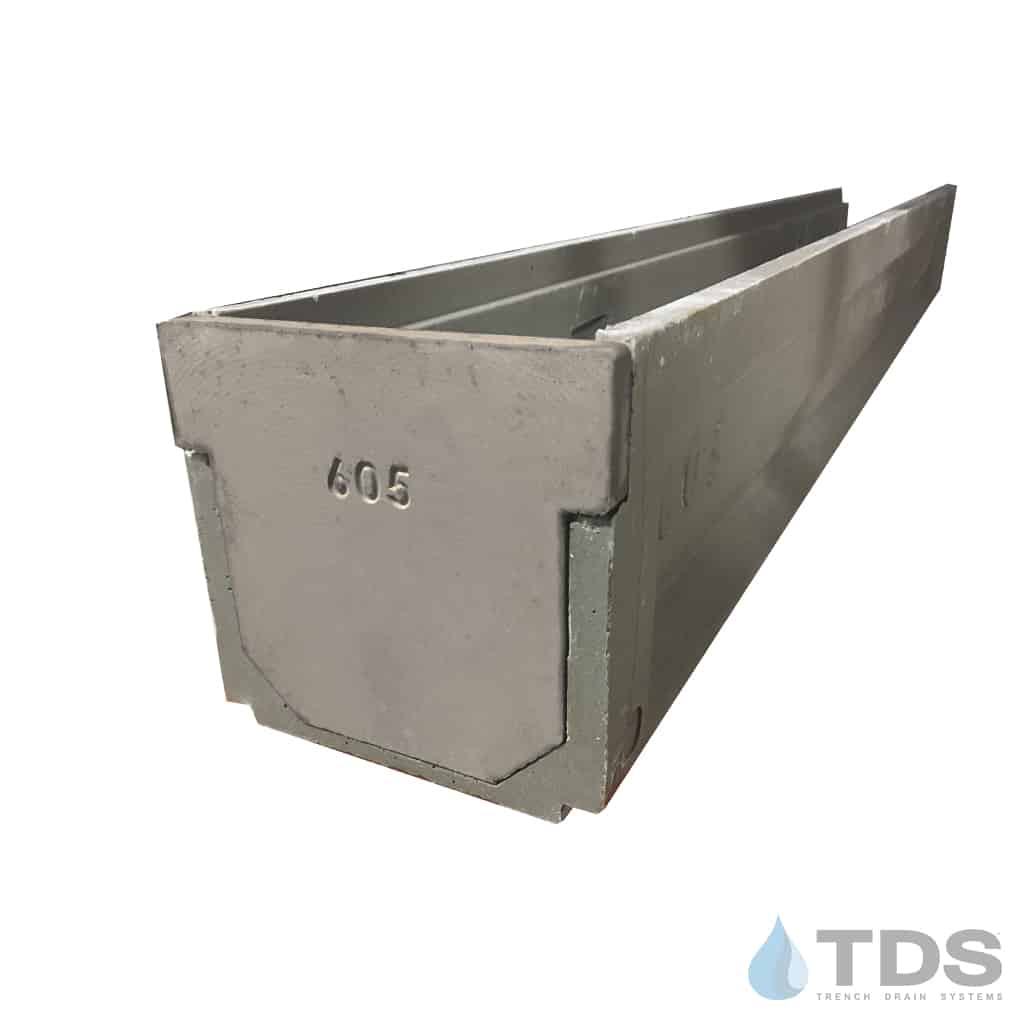

POLYCAST 600 Sloped Channel Kit - w/o Grates

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish:

Manufacturer: Hubbell - POLYCAST and TDS (Trench Drain Systems)

System: POLYCAST 900 and POLYCAST 600

Grate Load Class:

Grate Pattern:

Grate Pattern Style:

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging:

Application: General Purpose Drainage - External and Transportation

If grates have already been purchased, we offer the ability to purchase the channels and coordinating hardware without the grates and locking devices.

If the application involves harsh conditions, POLYCAST® channels with vinyl ester are available as well.

POLYCAST 600 Series is a polymer concrete channel that has a built-in 0.65 percent slope allowing the system to achieve flow rates of 470 GPM. The installation chairs tighten the joints between channels while aligning and leveling the drainage run. Each installation chair is secured to the ground (using your own rebar), ensuring that the channels will not float during the concrete pour. Grates sold separately and are available in a variety of patterns and materials. Customers will be sent an engineering layout drawing for approval to ensure the correct depths/outlets are provided. (Refer to charts). For heavy trucks or fork truck traffic, we recommend adding the ductile iron frames to your kit.

Each kit contains the appropriate number of:

• Pre-sloped channels
  Non-sloped runs available by requesting all neutral channels
• Installation chairs
• End cap
• End outlet (knockout)


***Grates and locking devices are sold separately

Also available in Vinyl Ester Channels for extreme temperatures and harsh chemicals, request your quote now.
